LANEUW2H
The LANEUW2H series of DC/DC power converters provides 2 Watts of output power in a 0.86” x 0.36” x 0.44” SIP package. This series has regulated single and dual output models with 4:1 ultra wide input voltage ranges of 9-36VDC and 18-72VDC. Some features include high efficiency up to 80%, low ripple and noise, 3000VDC I/O isolation, and continuous short circuit protection. All models in this series are RoHS compliant.
• 2 Watts Maximum Output Power
• Regulated Single and Dual Outputs
• 4:1 Input Voltage Ranges: 9-36VDC & 18-72VDC
• 0.86 x 0.36 x 0.44 Inch SIP Package
• Industry Standard Pin-out
• Internal SMD Construction
• -40°C to +85°C Operating Temperature Range
• Switching Frequency (200KHz, min)
• Continuous Short Circuit Protection
• RoHS Compliant
• High Efficiency up to 80%
• 3000VDC I/O Isolation
• Low Ripple & Noise
• Free Air Convection
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANEUW2433R2H | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4833R2H | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2405R2H | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2409R2H | Input Voltage: 24 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2412R2H | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2415R2H | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4805R2H | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4809R2H | Input Voltage: 48 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4812R2H | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4815R2H | Input Voltage: 48 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2405RD2H | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2409RD2H | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2412RD2H | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW2415RD2H | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4805RD2H | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4809RD2H | Input Voltage: 48 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4812RD2H | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| LANEUW4815RD2H | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.36" x 0.44" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18~72, 9~36 |
| Input Filter: | Capacitor Type |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15 |
| Voltage Accuracy: | ±3% |
| Output Current: | 500mA, 400mA, 222mA, 167mA, 133mA, ±200mA, ±111mA, ±83mA, ±67mA |
| Output Power (Watts): | 1.65, 2 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 80% |
| Isolation: | 3000VDC |
| Environmental | |

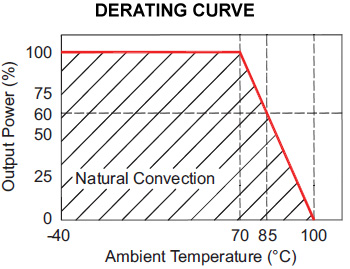

| Operating Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 0.16 oz |

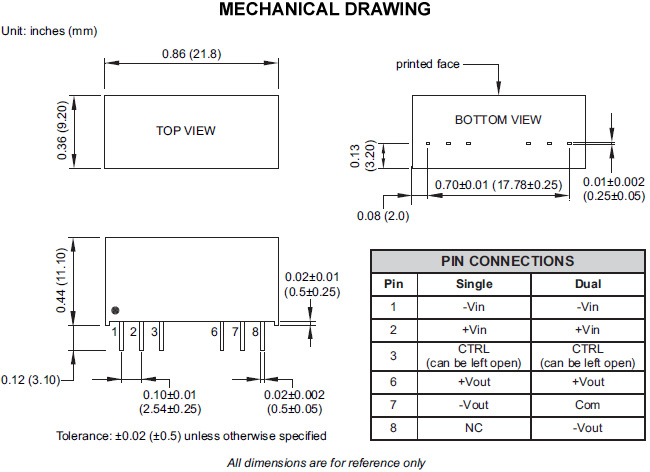

| Dimensions: | 0.86 x 0.36 x 0.44 |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | Due to advances in technology, specifications are subject to change without notice. |
| RoHS Compliance: | Yes |
