LANEH2
When your application demands low power, minimal board space, and a high level of input/output isolation is necessary, the LANEH2 miniature converters offer superior solutions at an economical price. Users have a multitude of options and operational ratings to choose from in custom-tailoring the converter to application demands. Populating a scant 0.179 square inches of board space, the LANEH2 provides two watts of power while maintaining specifications over the entire commercial operating temperature range.
● 7 Pin SIP Package
● 3000VDC Isolation
● Single and Dual Outputs
● Unregulated Output Types
● UL 94V-0 Package Material
● 3.3, 5, 12, 15, 24, and 48VDC Input Voltages Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANE1205NDH2 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1205NH2 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1209NDH2 | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1209NH2 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1212NDH2 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1212NH2 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1215NDH2 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1215NH2 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1505NDH2 | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1505NH2 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1509NDH2 | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1509NH2 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1512NDH2 | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1512NH2 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1515NDH2 | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1515NH2 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2405NDH2 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2405NH2 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409NDH2 | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409NH2 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412NDH2 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412NH2 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415NDH2 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415NH2 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.305NDH2 | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.305NH2 | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.309NDH2 | Input Voltage: 3.3 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.309NH2 | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.312NDH2 | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.312NH2 | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.315NDH2 | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.315NH2 | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4805NDH2 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4805NH2 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4809NDH2 | Input Voltage: 48 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4809NH2 | Input Voltage: 48 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4812NDH2 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4812NH2 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4815NDH2 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4815NH2 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE505NDH2 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE505NH2 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE509NDH2 | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE509NH2 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE512NDH2 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE512NH2 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE515NDH2 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE515NH2 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 12, 15, 24, 48 |
| Input Voltage Range: | 11.4-12.6, 14.25-15.75, 22.8-25.2, 3.135-3.465, 4.75-5.25, 45.6-50.4 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 9, 12, 15, ±5, ±9, ±12, ±15 |
| Voltage Accuracy: | ±5% |
| Output Current: | 400mA, 222mA, 167mA, 133mA, ±200mA, ±111mA, ±83mA, ±67mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Short Term |
| General | |
| Efficiency: | 75% typ. |
| Isolation: | 3000VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |

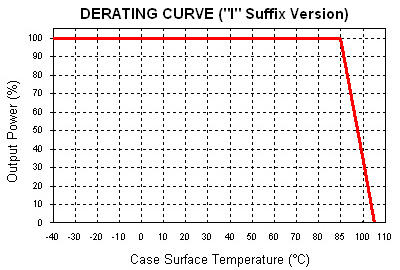

| Extended Operating Temp. Option: | "I" suffix: -40°C to +85°C |
| Physical | |
| Weight: | 0.07oz (2.1g) |
| Dimensions: | 0.77" x 0.28" x 0.39" (19.5 x 7.10 x 10.0 mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |

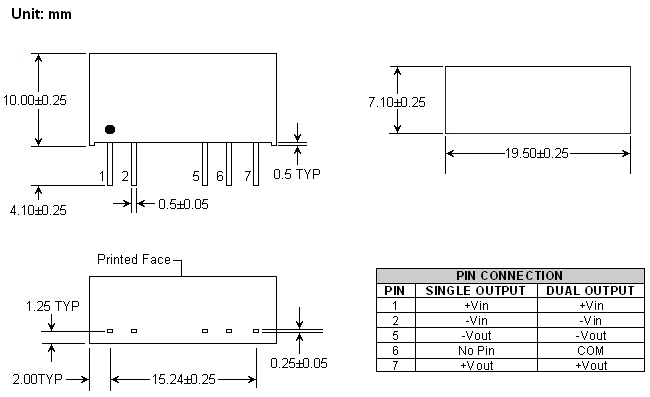

| Notes: | 1. For industrial grade operating temperature of -40°C ~ +85°C add the suffix “I” to the part number. (Ex: LANE2405NH2I). 2. All tolerances for the mechanical drawing are ±0.25. 3. Dimensions of the mechanical drawing are shown in millimeters. Due to advances in technology, specifications are subject to change without notice. |
| RoHS Compliance: | Yes |
