LANCY3

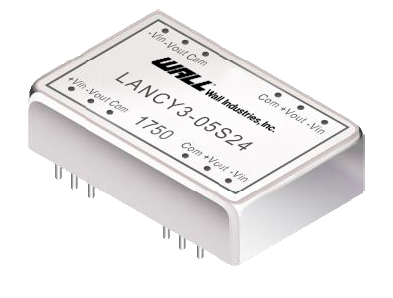

The LANCY3 series of DC/DC converters offers 3 watts of output power in a compact 1.24” x 0.79” x 0.43” 24 pin DIL package. This series consists of regulated single and dual output models with wide input voltage ranges. Each model features internal SMD construction, industry standard pinout, low ripple and noise, and high efficiency. This series has short circuit protection and is RoHS compliant.
• Wide Input Voltage Ranges
• 24PIN DIL Package
• Industry Standard Pinout
• Regulated Output Types
• Internal SMD Construction
• Short Circuit Protection
• Low Ripple & Noise
• RoHS Compliant
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANCY3-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09S05 | Input Voltage: 9 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09S09 | Input Voltage: 9 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09S12 | Input Voltage: 9 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09S15 | Input Voltage: 9 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09S24 | Input Voltage: 9 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12S09 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15S24 | Input Voltage: 15 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48S09 | Input Voltage: 48 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05D05 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05D09 | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±167mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-05D24 | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±63mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09D05 | Input Voltage: 9 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09D09 | Input Voltage: 9 | Output Voltage: 9, -9 | Output Current: ±167mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09D12 | Input Voltage: 9 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09D15 | Input Voltage: 9 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-09D24 | Input Voltage: 9 | Output Voltage: 24, -24 | Output Current: ±63mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12D09 | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±167mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-12D24 | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±63mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15D05 | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15D09 | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±167mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15D12 | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15D15 | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-15D24 | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±63mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24D09 | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±167mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-24D24 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±63mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48D09 | Input Voltage: 48 | Output Voltage: 9, -9 | Output Current: ±167mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| LANCY3-48D24 | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±63mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 9, 12, 15, 24, 48 |
| Input Voltage Range: | 4.5~5.5, 8.1~9.9, 10.8~13.2, 13.5~16.5, 21.6~26.4, 43.2~52.8 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 |
| Voltage Accuracy: | ±3% |
| Output Current: | 125mA, 200mA, 250mA, 333mA, 600mA, ±63mA, ±100mA, ±125mA, ±167mA, ±300mA |
| Output Power (Watts): | 3 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 80% |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 0.57oz (16.2g) |
| Dimensions: | 1.24in x 0.79in x 0.43in (31.6mm x 20.1mm x 11mm) |
| Case Material: | Nickel Coated Copper with Non-Conductive Base |
| Notes & safety | |
| Notes: | 1. As the input voltage increases, there will be an increase in efficiency. *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
