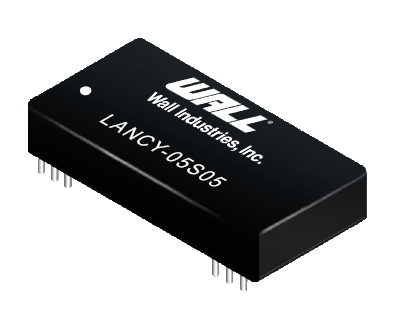

LANCY

The LANCY series of DC/DC converters offers 1.8 watts of output power in a compact 1.25” x 0.8” x 0.40” 24 pin DIL package. This series consists of regulated or unregulated single and dual output models with several wide input voltage ranges available. Each model features an industry standard pinout, internal SMD construction, as well as low ripple and noise and high efficiency. This series also has short circuit protection and RoHS compliance.

• Wide Input Voltage Ranges • Low Ripple & Noise • 24Pin DIL Package • Unregulated & Regulated Output Types • RoHS Compliant • Industry Standard Pinout • Internal SMD Construction • No External Component Required • Short Circuit Protection • High Efficiency
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
LANCY-05S05 Input Voltage: 5 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S09 Input Voltage: 5 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S12 Input Voltage: 5 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S15 Input Voltage: 5 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S24 Input Voltage: 5 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S05 Input Voltage: 9 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S09 Input Voltage: 9 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S12 Input Voltage: 9 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S15 Input Voltage: 9 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S24 Input Voltage: 9 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S05 Input Voltage: 12 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S09 Input Voltage: 12 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S12 Input Voltage: 12 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S15 Input Voltage: 12 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S24 Input Voltage: 12 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S05 Input Voltage: 15 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S09 Input Voltage: 15 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S12 Input Voltage: 15 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S15 Input Voltage: 15 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S24 Input Voltage: 15 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S09 Input Voltage: 24 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S24 Input Voltage: 24 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S05R Input Voltage: 5 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S09R Input Voltage: 5 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S12R Input Voltage: 5 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S15R Input Voltage: 5 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05S24R Input Voltage: 5 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S05R Input Voltage: 9 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S09R Input Voltage: 9 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S12R Input Voltage: 9 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S15R Input Voltage: 9 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-09S24R Input Voltage: 9 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S05R Input Voltage: 12 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S09R Input Voltage: 12 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S12R Input Voltage: 12 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S15R Input Voltage: 12 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-12S24R Input Voltage: 12 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S05R Input Voltage: 15 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S09R Input Voltage: 15 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S12R Input Voltage: 15 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S15R Input Voltage: 15 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-15S24R Input Voltage: 15 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S05R Input Voltage: 24 Output Voltage: 5 Output Current: 360mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S09R Input Voltage: 24 Output Voltage: 9 Output Current: 200mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S12R Input Voltage: 24 Output Voltage: 12 Output Current: 150mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S15R Input Voltage: 24 Output Voltage: 15 Output Current: 120mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-24S24R Input Voltage: 24 Output Voltage: 24 Output Current: 75mA Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
LANCY-05D05 Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±180mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-05D09 Input Voltage: 5 Output Voltage: 9, -9 Output Current: ±100mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-05D12 Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-05D15 Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-05D24 Input Voltage: 5 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-09D05 Input Voltage: 9 Output Voltage: 5, -5 Output Current: ±180mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-09D09 Input Voltage: 9 Output Voltage: 9, -9 Output Current: ±100mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-09D12 Input Voltage: 9 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-09D15 Input Voltage: 9 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-09D24 Input Voltage: 9 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D05 Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±180mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D09 Input Voltage: 12 Output Voltage: 9, -9 Output Current: ±100mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D12 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D15 Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D24 Input Voltage: 12 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D05 Input Voltage: 15 Output Voltage: 5, -5 Output Current: ±180mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D09 Input Voltage: 15 Output Voltage: 9, -9 Output Current: ±100mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D12 Input Voltage: 15 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D15 Input Voltage: 15 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D24 Input Voltage: 15 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D05 Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±180mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D09 Input Voltage: 24 Output Voltage: 9, -9 Output Current: ±100mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D12 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D15 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D24 Input Voltage: 24 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-05D12R Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-05D15R Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-05D24R Input Voltage: 5 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-09D12R Input Voltage: 9 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole; Get a Quote
LANCY-09D15R Input Voltage: 9 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-09D24R Input Voltage: 9 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D12R Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D15R Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-12D24R Input Voltage: 12 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D12R Input Voltage: 15 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D15R Input Voltage: 15 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-15D24R Input Voltage: 15 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D12R Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±75mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D15R Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±60mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
LANCY-24D24R Input Voltage: 24 Output Voltage: 24, -24 Output Current: ±38mA Output Power (W): 1.8 No. Outputs: D Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 9, 12, 15, 24
Input Voltage Range: 4.5~5.5, 8.1~9.9, 10.8~13.2, 13.5~16.5, 21.6~26.4
Input Filter: Capacitor
Output
Output Voltage: 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24
Voltage Accuracy: ±5%
Output Current: 75mA, 120mA, 150mA, 200mA, 360mA, ±38mA, ±60mA, ±75mA, ±100mA, ±180mA
Output Power (Watts): 1.8
Short Circuit Protection: Unregulated: Short Term
Regulated: Continuous
General
Efficiency: Up to 80%
Environmental
Operating Temperature: -40 to +85ºC
Physical
Weight: 0.55oz (15.5g)

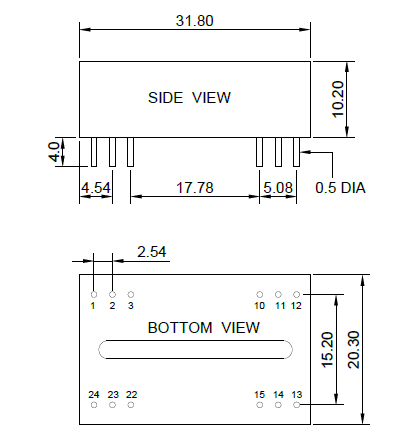

Dimensions: 1.25in x 0.8in x 0.40in (31.8mm x 20.30mm x 10.20mm)
Notes & safety
Notes: 1.As the input increases, there will be an increase in efficiency.
*Due to advances in technology, specifications subject to change without notice.
RoHS Compliance: Yes
