LANCW15
The LANCW15 series of DC/DC power converters provides 15 watts of output power in a 1.25 x 0.80 x 0.40 inch DIP package. This series has single and dual output models with 2:1 wide input voltage ranges of 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency, 1600VDC I/O isolation, six-sided shielding, and positive logic remote ON/OFF. These converters are also protected against over voltage (single outputs only), over load, and short circuit conditions. All models are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. This series is best suited for use in wireless networks, telecom/datacom, measurement equipment, industry control systems, and semiconductor equipment.
• Single and Dual Outputs
• Low Profile
• High Power Density with 15 Watts Output Power
• 2:1 Wide Input Voltage Range
• High Efficiency up to 91%
• 1600VDC I/O Isolation
• Output Current up to 4A
• Positive Logic Remote ON/OFF
• Fixed Switching Frequency
• Over Voltage, Over Load, and Short Circuit Protection
• Low Standby Power Dissipation
• Input Under Voltage Lockout
• Six-Sided Continuous Shield
• Standard 24 Pin DIP Package
• UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
• Compliant to RoHS EU Directive 2002/95/EC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANC1233W15 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 4000mA | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2433W15 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 4000mA | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4833W15 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 4000mA | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1251W15 | Input Voltage: 12 | Output Voltage: 5.1 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1212W15 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1215W15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2451W15 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412W15 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415W15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4851W15 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812W15 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815W15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1205DW15 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1212DW15 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1215DW15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405DW15 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412DW15 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415DW15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805DW15 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812DW15 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815DW15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 9~18 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5.1, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 4000mA, 3000mA, 1250mA, 1000mA, ±1500mA, ±625mA, ±500mA |
| Output Power (Watts): | 13.2, 15 |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | For Single Outputs |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | 1600VDC |
| Environmental | |

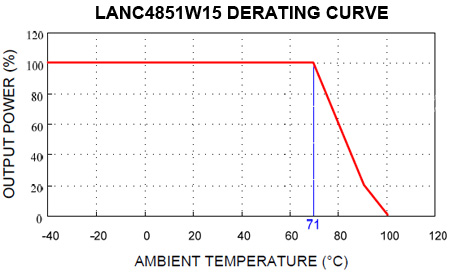

| Operating Temperature: | -40 to 100°C with derating |
| Storage Temperature: | -55 to 105°C |
| Physical | |
| Weight: | 0.51 oz |

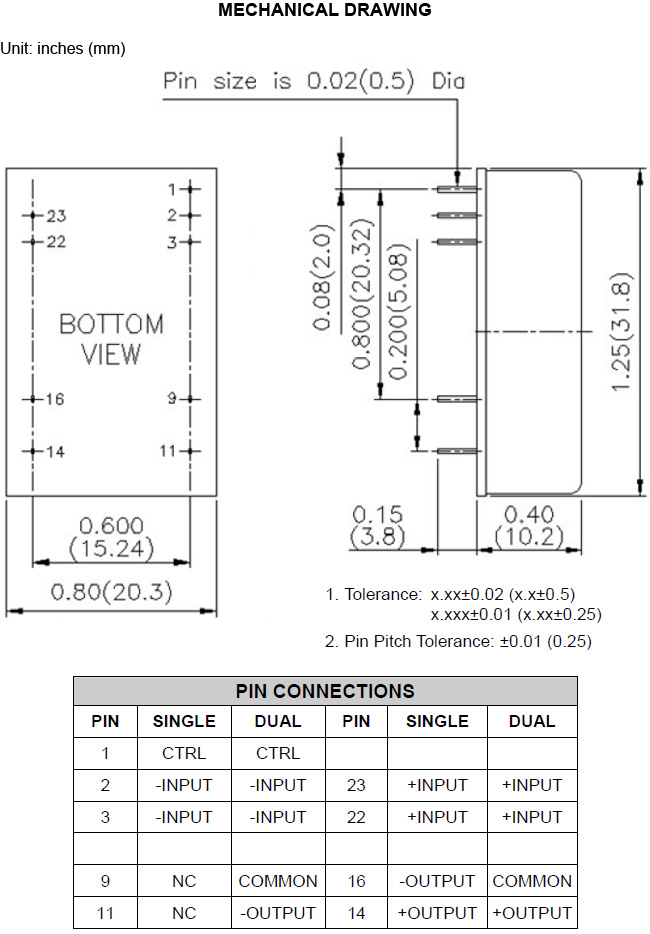

| Dimensions: | 1.25 x 0.80 x 0.40 |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. MIL-HDBK-217F Notice2 @Ta=25°C, Full load (Ground, Benign, controlled environment). 2. Maximum value at nominal input voltage and full load. 3. Typical value at nominal input voltage and no load. 4. Typical value at nominal input voltage and full load. 5. Test by minimum Vin and constant resistive load. 6. Ripple and Noise is measured with a 1µF ceramic capacitor in parallel with the output pins. 7. The ON/OFF control pin voltage is referenced to -Vin. 8. The LANCW15 series can meet EN55022 Class B with an external filter on the input pins to the converter. The filter capacitor suggested is TBD. 9. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is TBD. 10. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
