LANCUW8
The LANCUW8 series of DC DC power converters provides 8 Watts of output power in a 1.25 x 0.80 x 0.40 inch DIP package. This series has single and dual output models with 4:1 wide input voltage ranges of 9-36VDC, 18-75VDC, and 43-160VDC. Some features include high efficiency up to 88%, 1600VDC I/O isolation, five-sided shielding, remote ON/OFF control, and no minimum load requirement. These converters are also protected against over voltage (single outputs only), over load, and short circuit conditions. All models are RoHS compliant and have UL60950-1, EN60950-1, IEC60950-1, and EN50155 safety approvals (pending). This series is best suited for use in wireless networks, telecom/datacom, measurement equipment, industry control systems, semiconductor equipment, and railway systems.
• Single and Dual Outputs
• 4:1 Ultra Wide Input Voltage Ranges
• High Efficiency up to 88%
• 8 Watts Output Power
• 1600VDC I/O Isolation
• Output Current up to 2.4A
• Remote ON/OFF
• Fixed Switching Frequency (300KHz)
• Over Voltage, Over Load, and Short Circuit Protection
• Five-Sided Continuous Shield
• Railway Applications
• Standard 1.25” x 0.80” x 0.40” and 24 Pin DIP Package
• SMT Package Available (Suffix “S”)
• Compliant to RoHS EU Directive 2002/95/EC
• CE Mark Meets 2006/95/EC, 93/68/EEC and 2004/108/EC
• UL60950-1, EN60950-1, IEC60950-1, and EN50155 Safety Approvals (Pending)
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANC2405DUW8 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405UW8 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1.6a | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412UW8 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412DUW8 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415DUW8 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415UW8 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2433UW8 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805DUW8 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805UW8 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1.6A | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812DUW8 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812UW8 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815DUW8 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815UW8 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4833UW8 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2433UW8S | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC2405UW8S | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1.6A | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC2405DUW8S | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC2412UW8S | Input Voltage: 24 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC2412DUW8S | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC2415UW8S | Input Voltage: 24 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC2415DUW8S | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC4833UW8S | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC4805UW8S | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1.6A | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC4805DUW8S | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC4812UW8S | Input Voltage: 48 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC4812DUW8S | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC4815DUW8S | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC4815UW8S | Input Voltage: 48 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC11033UW8 | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC11033UW8S | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC11005UW8S | Input Voltage: 110 | Output Voltage: 5 | Output Current: 1.6A | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC11005UW8 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 1.6A | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC11005DUW8 | Input Voltage: 110 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC11005DUW8S | Input Voltage: 110 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC11012UW8S | Input Voltage: 110 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC11012UW8 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC11012DUW8 | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC11012DUW8S | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC11015UW8 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC11015UW8S | Input Voltage: 110 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| LANC11015DUW8 | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC11015DUW8S | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Surface Mount | Size: 1.26" x 0.8" x 0.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 18-75, 43-160, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2.4A, 1.6A, 666mA, 533mA, ±800mA, ±333mA, ±267mA |
| Output Power (Watts): | 8 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.62 oz. |

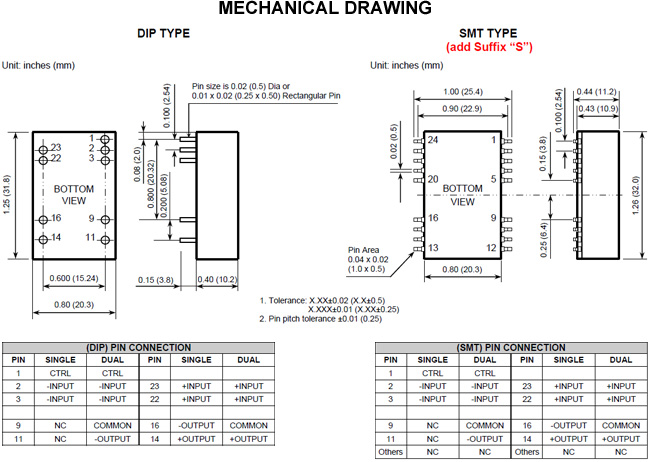

| Dimensions: | DIP Type: 1.25" x 0.80" x 0.40" (31.8 x 20.3 x 10.2 mm) SMT Type: 1.26" x 0.80" x 0.43" (32.0 x 20.3 x 10.9 mm) |
| Case Material: | Nickel-Coated Copper |
| Notes & safety | |

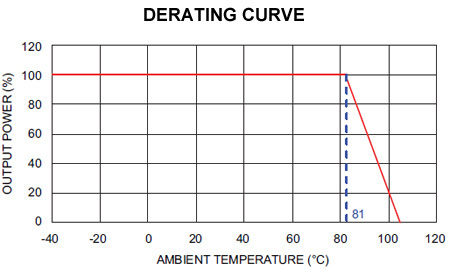

| Notes: | 1. Add the suffix "S" for SMT type. 2. The On/Off control pin is referenced to -Vin. 3. MTBF: BELLCORE TR-NWT-000332. Case I: 50% stress, temperature at 40°C. (Ground fixed and controlled environment.) MIL-STD-217F Notice 2 @ Ta=25°C, full load (Ground, benign, controlled environment.) 4. Operating Ambient Temperature: Converters can meet the railway T2 and TX temperature requirements. T2: -40°C to +70°C for all models, TX: -40°C to +85°C with power derating to 55% output power. 5. The LANCUW8 series can meet EN55022 and EN55011 Class A with an external capacitor in parallel with the input pins. See the data sheet for more details. 6. An external filter capacitor is required if the module has to meet EN61000-4-4 and EN61000-4-5. See the data sheet for more details. 7. CAUTION: This power module is not internally fused. An input line fuse must always be used. 8. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1, EN50155 |
| RoHS Compliance: | Yes |
