LANCUW12
The LANCUW12 Series offers 12 watts of output power from a package in an IC compatible 24pin DIP configuration. LANCUW12 Series models have 4:1 ultra wide input voltage of 9-36 and 18-75VDC. The LANCUW12 Series features 1600VDC of isolation and short circuit protection as well as five sided shielding. All models are particularly suited to telecommunications, industrial, mobile telecom and test equipment applications. Surface mount models are also available.
● 12 Watts Output power
● High Efficiency up to 88%
● Five-Sided Continuous Shield
● DIP and SMT Types Available
● Standard 1.25 x 0.8 x 0.4 Inches
● 4:1 Ultra Wide Input Voltage Range
● Fixed Switching Frequency (400KHz)
● Compliant to RoHS EU Directive 2002/95/EC
● UL60950-1, EN60950-1, and IEC60950-1 Licensed
● CE Mark meets 2006/95/EC, 93/68/EEC, and 89/336 EEC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

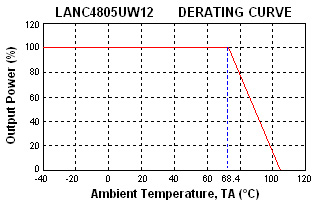

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANC2433UW12 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 3.5A | Output Power (W): 11.55 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4833UW12 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 3.5A | Output Power (W): 11.55 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405DUW12 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1.2A | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412DUW12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±500mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412UW12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415DUW12 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±400mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415UW12 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 800mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805DUW12 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1.2A | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812DUW12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±500mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812UW12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815DUW12 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±400mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815UW12 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 800mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405UW12 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 2.4A | Output Power (W): 12.24 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805UW12 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 2.4A | Output Power (W): 12.24 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | ref. -Vin |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5.1, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1.2% |
| Output Current: | 3.5A, 1.2A, 2.4A, 1A, ±500mA, ±400A, ±1.2A |
| Output Power (Watts): | 11.55, 12, 12.24 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Single Output Models Only |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.63 oz. |

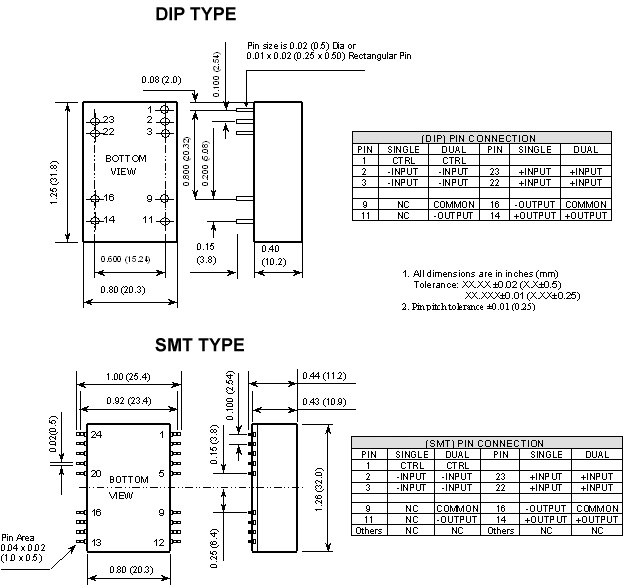

| Dimensions: | DIP Type: 1.25" x 0.80" x 0.40" (31.8 x 20.3 x 10.2 mm) SMT Type: 1.26" x 0.80" x 0.43" (32.0 x 20.3 x 10.9 mm) |
| Case Material: | Nickel-Coated Copper |
| Notes & safety | |
| Notes: | 1. Add the suffix "S" for SMT Type. 2. MTBF: BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment). MIL-STD-217F Notice2 @Ta=25 °C, Full load (Ground, Benign, controlled environment) 3. The ON/OFF control pin voltage is referenced to negative input. 4. The LANCUW12 Series can meet EN55022 Class A with an external capacitor in parallel with the input pins. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
