LAN E
When board space is at a premium and voltage conversions require low power, the LAN E series miniature converters offer superior solutions at an economical price. A multitude of options and operating ranges allow you to custom-tailor these converters to application requirements. At the compact size of 0.77” x 0.24” x 0.39” or 0.77” x 0.28” x 0.39”, the LAN E series provides 1 Watt of power while maintaining specifications over the entire industrial operating temperature range.
• 3.3, 5, 9, 12, 15, 24, and 48VDC Nominal Input Voltages • 1 Watt Output Power • RoHS Compliant • Unregulated Output Types • Two Package Sizes Available • DAP Case Material • No External Components Required • 5-Pin SIP Package • High Efficiency up to 82% • Internal SMD Construction • Industry Standard Pinout
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANE1205N | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1205ND | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1209N | Input Voltage: 12 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1209ND | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1212N | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1212ND | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1215N | Input Voltage: 12 | Output Voltage: 15 | Output Current: 60mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1215ND | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1505N | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1505ND | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1509N | Input Voltage: 15 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1509ND | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1512N | Input Voltage: 15 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1512ND | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1515N | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1515ND | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2405N | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2405ND | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2409N | Input Voltage: 24 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2409ND | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2412N | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2412ND | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2415N | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2415ND | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE505N | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE505ND | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE509N | Input Voltage: 5 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE509ND | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE512N | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE512ND | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE515N | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE515ND | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.305N | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.305ND | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.309N | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.309ND | Input Voltage: 3.3 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.312N | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.312ND | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.315N | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.315ND | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE4805NP | Input Voltage: 48 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4809NP | Input Voltage: 48 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4812NP | Input Voltage: 48 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4815NP | Input Voltage: 48 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.333N | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.324N | Input Voltage: 3.3 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE533N | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE524N | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE933N | Input Voltage: 9 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE905N | Input Voltage: 9 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE909N | Input Voltage: 9 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE912N | Input Voltage: 9 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE915N | Input Voltage: 9 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE924N | Input Voltage: 9 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1233N | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1224N | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1533N | Input Voltage: 15 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1524N | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2433N | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2424N | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE4824NP | Input Voltage: 48 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.305NP | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.309NP | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.312NP | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.315NP | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.324NP | Input Voltage: 3.3 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE505NP | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE509NP | Input Voltage: 5 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE512NP | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE515NP | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE524NP | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE905NP | Input Voltage: 9 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE909NP | Input Voltage: 9 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE912NP | Input Voltage: 9 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE915NP | Input Voltage: 9 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE924NP | Input Voltage: 9 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1205NP | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1209NP | Input Voltage: 12 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1212NP | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1215NP | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1224NP | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1505NP | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1509NP | Input Voltage: 15 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1512NP | Input Voltage: 15 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1515NP | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1524NP | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2405NP | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409NP | Input Voltage: 24 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412NP | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415NP | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2424NP | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.333ND | Input Voltage: 3.3 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.305NDP | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.309NDP | Input Voltage: 3.3 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.312NDP | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.315NDP | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3.324ND | Input Voltage: 3.3 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3.324NDP | Input Voltage: 3.3 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE533ND | Input Voltage: 5 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE505NDP | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE509NDP | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE512NDP | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE515NDP | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE524ND | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE524NDP | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE933ND | Input Voltage: 9 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE905ND | Input Voltage: 9 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE905NDP | Input Voltage: 9 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE909ND | Input Voltage: 9 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE909NDP | Input Voltage: 9 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE912ND | Input Voltage: 9 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE912NDP | Input Voltage: 9 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE915ND | Input Voltage: 9 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE915NDP | Input Voltage: 9 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE924ND | Input Voltage: 9 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE924NDP | Input Voltage: 9 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1233ND | Input Voltage: 12 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1205NDP | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1209NDP | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1212NDP | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1215NDP | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1224ND | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1224NDP | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1533ND | Input Voltage: 15 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1505NDP | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1509NDP | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1512NDP | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1515NDP | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1524ND | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1524NDP | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2433ND | Input Voltage: 24 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2405NDP | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409NDP | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412NDP | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415NDP | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2424ND | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2424NDP | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE485NDP | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE489NDP | Input Voltage: 48 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4812NDP | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4815NDP | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4824NDP | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 9, 12, 15, 24, 48 |
| Input Voltage Range: | 2.97~3.63, 4.5~5.5, 8.1~9.9, 10.8~13.2, 13.5~16.5, 21.6~26.4, 43.2~52.8 |
| Input Filter: | Capacitor |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 |
| Voltage Accuracy: | ±5% |
| Output Current: | 303mA, 200mA, 112mA, 84mA, 67mA, 42mA, ±150mA, ±100mA, ±56mA, ±42mA, ±34mA, ±21mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Short Term |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 1KVDC (standard), 2KVDC (for 2KV suffix) |
| Environmental | |

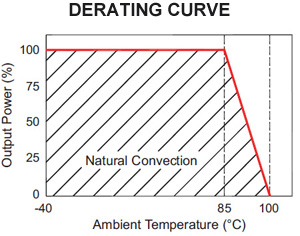

| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -40 to 100°C |
| Physical | |
| Weight: | Package 1: 0.074oz (2.1g) Package 2: 0.095oz (2.7g) |

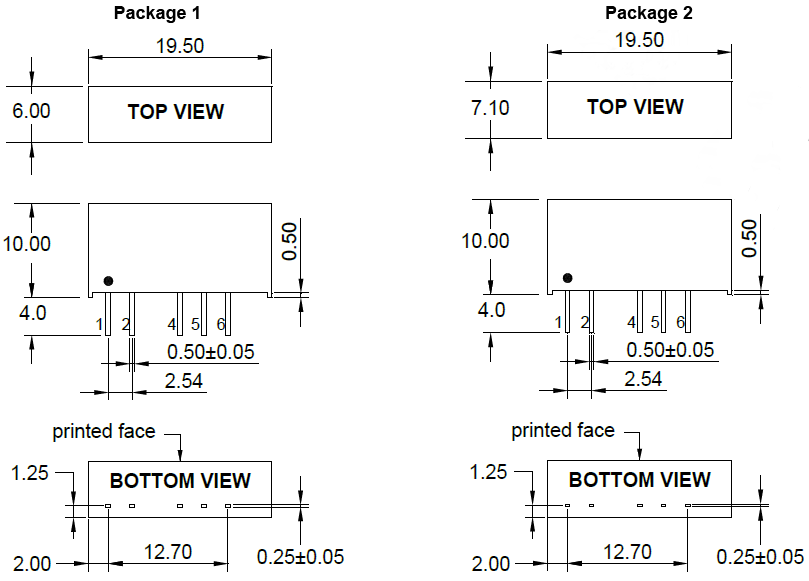

| Dimensions: | Package 1: 0.77" x 0.24" x 0.39" (19.5 x 6 x 10 mm) Package 2: 0.77" x 0.28" x 0.39" (19.5 x 7.1 x 10 mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | (1) Add “P” to end of model number to indicate Package 2 type. 3.3VDC output voltage is only available for Package 1 type. 48VDC nominal input voltage models are only available for Package 2 type. (2) As the input voltage increases there will be an increase in efficiency. (3) This product is Listed to applicable standards and requirements by UL *Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1 |
| RoHS Compliance: | Yes |
Get a Quote
Request information for from Wall Industries.
"*" indicates required fields
Medical Power Supplies
Military Power Supplies
Railway Power Converters
Lighting Power Supplies
Industrial Power Supplies
Level VI Power Supplies
Custom Solutions
Wall Industries, Inc. offers fully custom power design capabilities. Our team of electrical and mechanical power design engineers will utilize proven design topologies and concepts to create a solution to your power requirements. If you don’t have a specification, Wall’s engineering team will assist you in determining what your requirements are and how best to provide a solution.
Custom Power Supplies
