KR/KRW
The KR/KRW series of dc dc converters combines a wide input voltage range (2:1 and 4:1), compact case size, regulation and isolation, in single or dual output models. Triple output protection including overload, overvoltage, and current limiting makes the KR/KRW series the ideal choice for a variety of commercial PCB mount applications. Chassis mounting options are also available (See CMKR/CMKRW Series).
● High Efficiency up to 83%
● Fixed Switching Frequency
● Six-Sided Continuous Shield
● Standard 2 x 1 x 0.4 inch Package
● 2:1 and 4:1 Wide Input Voltage Range
● ISO9001 Certified Manufacturing Facilities
● Compliant to RoHS EU Directive 2002/95/EC
● Options: Positive Logic and Negative Logic Remote ON/OFF, Industrial Temperature
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| KR48S12-470 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR12S33-1000 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR24S33-1000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR48S33-1000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW24S33-1000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW48S33-1000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR12D5-500 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR12S5-1000 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR24D5-500 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR24S5-1000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR48D5-500 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR48S5-1000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW24D5-500 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW24S5-1000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW48D5-500 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW48S5-1000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR12D12-230 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR24D12-230 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR48D12-230 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW24D12-230 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW48D12-230 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR12S12-470 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR24S12-470 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW24S12-470 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW48S12-470 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR12D15-190 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR24D15-190 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR48D15-190 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW24D15-190 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW48D15-190 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR12S15-400 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR24S15-400 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KR48S15-400 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW24S15-400 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| KRW48S15-400 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 18-75, 36-75, 9-18, 9-36 |
| Input Filter: | Pi Filter |
| Remote ON/OFF: | Positive or Negative Logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 470mA, 1A, 400mA, ±500mA, ±230mA, ±190mA |
| Output Power (Watts): | 1.5, 3.3, 5, 5.5, 5.6, 5.64, 5.7, 6 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -25 to 85°C |
| Storage Temperature: | -55 to 105°C |
| Extended Operating Temp. Option: | -40 to 85°C |
| Physical | |
| Weight: | 1 oz. |

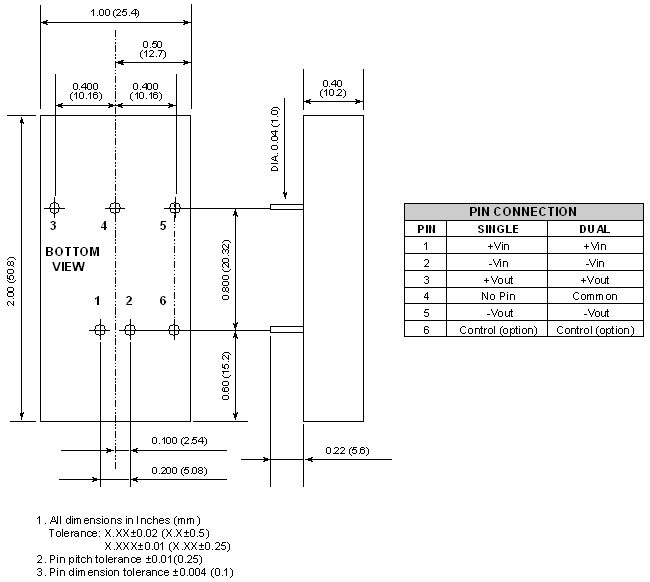

| Dimensions: | 2in. × 1in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |

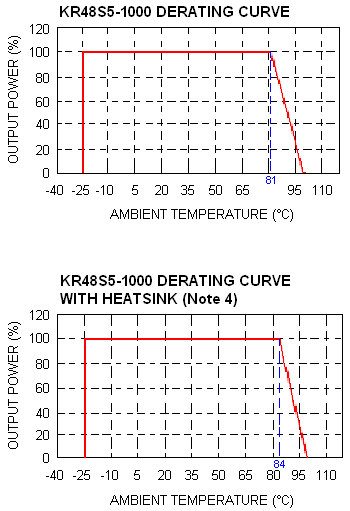

| Notes: | 1. MTBF: BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment) 2. The ON/OFF control pin voltage is referenced to -Vin. To order positive logic ON-OFF control add the suffix "P" (Ex: KR48S5-1000P). To order negative logic ON-OFF control add the suffix "R" (Ex: KR48S5-1000R). 3. The industrial "I" suffix for the 2:1 input version is more efficient; therefore, it can be operated in a more extensive temperature range than "standard" and "I" suffix 4:1 input versions. To order industrial temperature range (-40°C ~ +85°C) add the suffix "I" to the part number (Ex: KR48S5-1000I). 4. Heat sink is optional, consult factory. 5. The KR Series is 2:1 wide input range of 9-18VDC, 18-36VDC, and 36-75VDC. The KRW Series is 4:1 ultra wide input range of 9-36VDC and 18-75VDC. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL 60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
