JRW
The JRW series of DC/DC power converters provides 10 watts of output power in a 2.0 x 1.0 x 0.4 inch industry standard package and footprint. This series has single and dual output models with 4:1 ultra wide input voltage ranges of 9-36VDC and 18-75VDC. Some features include high efficiency up to 84%, 1600VDC I/O isolation, and six-sided shielding. This series is also protected against over voltage, over load, and short circuit conditions. This series is RoHS and UL94V-0 compliant and has UL60950-1, EN60950-1, and IEC60950-1 safety approvals.
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
---|---|---|---|---|---|---|---|---|
JRW24S33-2500 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2.5A | Output Power (W): 8.25 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW48S33-2500 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2.5A | Output Power (W): 8.25 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW24D12-420 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW24D15-330 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW24D5-1000 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1A | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW24S12-830 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW24S15-660 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW24S5-2000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW48D12-420 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW48D15-330 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW48D5-1000 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1A | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW48S12-830 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW48S15-660 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
JRW48S5-2000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
Specification | Value |
---|---|
Input | |
Input Voltage (Nominal): | 24, 48 |
Input Voltage Range: | 18-75, 9-36 |
Input Filter: | Pi Filter |
Remote ON/OFF: | Positive or Negative Logic |
Input Frequency: | 0 Hz |
Output | |
Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
Voltage Accuracy: | ±1% |
Output Current: | 2.5A, 2A, 830mA, 670mA, ±1A, ±416mA, ±333mA |
Output Power (Watts): | 8.25, 10 |
Short Circuit Protection: | Hiccup, Automatic Recovery |
Over Voltage Protection: | Yes |
General | |
Efficiency: | Up to 84% |
Isolation: | 1600VDC |
Environmental | |
Operating Temperature: | -25 to 85°C |
Storage Temperature: | -55 to 105°C |

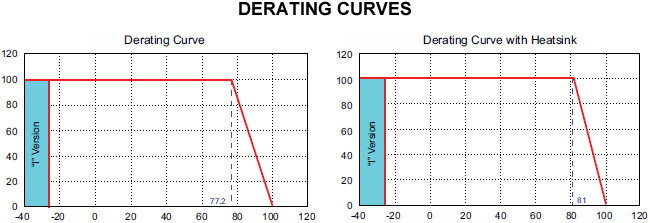

Extended Operating Temp. Option: | -40 to 85°C |

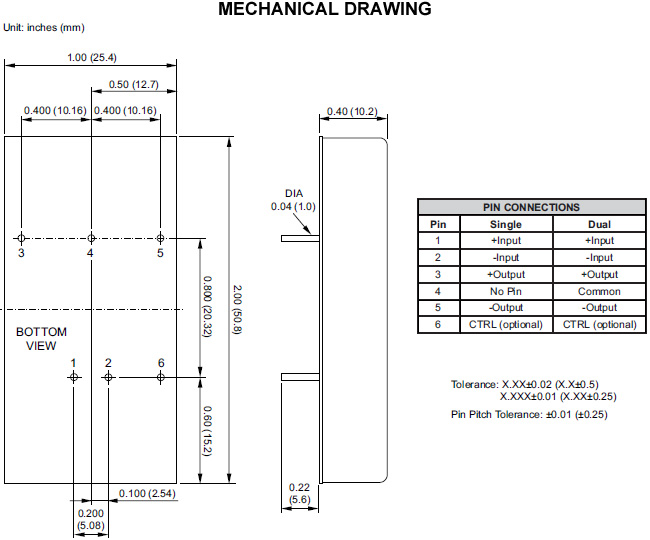

Physical | |
Weight: | 0.95 oz. |
Dimensions: | 2in. × 1in. × 0.4in. |
Case Material: | Nickel-Coated Copper |
Shielding: | Six-Sided |
Notes & safety | |
Notes: | 1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. MIL-HDBK-217F Notice2 @Ta=25°C, Full load (Ground, Benign, controlled environment). 2. The on/off control pin is referenced to –Vin. To order positive logic remote on/off, add the suffix “P” to the model number (Ex: JRW24S15-660P). To order negative logic remote on/off, add the suffix “R” to the model number (Ex: JRW24S15-660R). 3. “I” type models are more efficient; therefore, they can be operated over a more extensive temperature range than the standard version. To order extended operating temperature range, add the suffix “-I” to the model number (Ex: JRW24S15-660-I). 4. Heatsink is optional and P/N: 7G-0020C-F. 5. The JRW series can meet EN55022 Class A with external capacitors in parallel connected to the input pins. Recommended: 24Vin: 2.2μF/50V 1812 MLCC; 48Vin: 1.5μF/100V 1812 MLCC 6. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY series, 220μF /100V, ESR 48mΩ. 7. CAUTION: This power module is not internally fused. An input line fuse must always be used. 8. UL approval can be added to any products not currently listed if required. Due to advances in technology, specifications are subject to change without notice. |
Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
RoHS Compliance: | Yes |
