JFC30

The JFC30 series of DC/DC power converters provides 30 Watts of output power in an industry standard 1.00” x 1.00” x 0.39” package and footprint. This series has single and dual output models with 2:1 wide input voltage ranges of 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency up to 93%, 1600VDC I/O isolation, six-sided shielding, and remote ON/OFF control. These converters are also protected against short circuit, over voltage, over load, and over temperature conditions. All models are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. This series is best suited for use in wireless networks, telecom/datacom, industry control systems, measurement equipment, and semiconductor equipment.

• High Efficiency up to 93% • Remote ON/OFF Control • 2:1 Wide Input Voltage Ranges • Six-Sided Continuous Shielding • Ultra Low Quiescent Current • No Minimum Load Requirements • Single and Dual Outputs • 30 Watts Maximum Output Power • 1600VDC I/O Isolation • Short Circuit, Over Voltage, Over Load, & Over Temperature Protection • Wide Operating Temperature Range: -40°C to +100°C • Compliant to RoHS EU Directive 2011/65/EU • UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals • Optional Heatsink Available (Suffix “HC”)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
JFC12S33-30 Input Voltage: 12 Output Voltage: 3.3 Output Current: 7A Output Power (W): 23.1 No. Outputs: S Case: Through Hole Get a Quote
JFC24S33-30 Input Voltage: 24 Output Voltage: 3.3 Output Current: 7A Output Power (W): 23.1 No. Outputs: S Case: Through Hole Get a Quote
JFC48S33-30 Input Voltage: 48 Output Voltage: 3.3 Output Current: 7A Output Power (W): 23.1 No. Outputs: S Case: Through Hole Get a Quote
JFC12S05-30 Input Voltage: 12 Output Voltage: 5 Output Current: 6A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC12S12-30 Input Voltage: 12 Output Voltage: 12 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC12S15-30 Input Voltage: 12 Output Voltage: 15 Output Current: 2A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC12S24-30 Input Voltage: 12 Output Voltage: 24 Output Current: 1.25A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC24S05-30 Input Voltage: 24 Output Voltage: 5 Output Current: 6A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC24S12-30 Input Voltage: 24 Output Voltage: 12 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC24S15-30 Input Voltage: 24 Output Voltage: 15 Output Current: 2A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC24S24-30 Input Voltage: 24 Output Voltage: 24 Output Current: 1.25A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC48S05-30 Input Voltage: 48 Output Voltage: 5 Output Current: 6A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC48S12-30 Input Voltage: 48 Output Voltage: 12 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC48S15-30 Input Voltage: 48 Output Voltage: 15 Output Current: 2A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC48S24-30 Input Voltage: 48 Output Voltage: 24 Output Current: 1.25A Output Power (W): 30 No. Outputs: S Case: Through Hole Get a Quote
JFC12D12-30 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±1.25A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC12D15-30 Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±1.0A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC12D24-30 Input Voltage: 12 Output Voltage: 24, -24 Output Current: ±0.625A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC24D12-30 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±1.25A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC24D15-30 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±1.0A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC24D24-30 Input Voltage: 24 Output Voltage: 24, -24 Output Current: ±0.625A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC48D12-30 Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±1.25A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC48D15-30 Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±1.0A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
JFC48D24-30 Input Voltage: 48 Output Voltage: 24, -24 Output Current: ±0.625A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24, 48
Input Voltage Range: 18~36, 36~75, 9~18
Input Filter: Pi Type
Remote ON/OFF: Positive (standard) or Negative (optional) logic
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, ±12, ±15, ±24
Voltage Accuracy: ±1.0%
Output Current: 7A, 6A, 2.5A, 2A, 1.25A, ±1.25A, ±1.0A, ±0.625A
Output Power (Watts): 23.1, 30
Output Trim/Adjustability: 15 & 24VDC models: -10%, +20%Others: -10%, +10%
Short Circuit Protection: hiccup, automatic recovery
Over Voltage Protection: For Single Outputs
Thermal Protection: 115°C
General
Efficiency: Up to 92%
Isolation: Input to Output: 1600VDCInput to Case: 1000VDCOutput to Case: 1000VDC
Environmental
Operating Temperature: -40 to 100°C with derating
Storage Temperature: -55 to 125°C
Physical
Weight: 0.58 oz

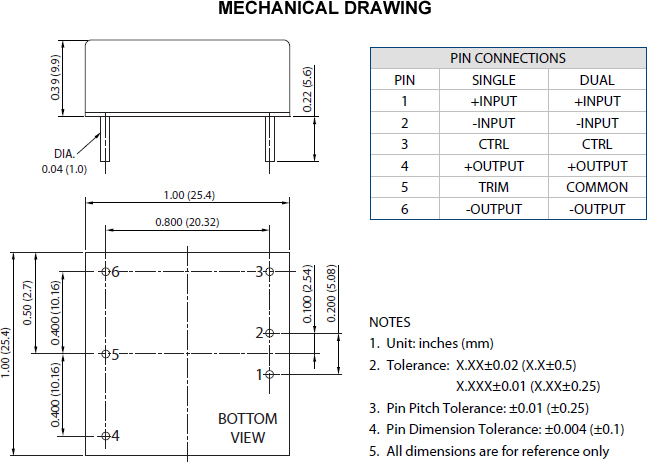

Dimensions: 1.00x1.00x0.39
Case Material: Copper
Shielding: Six-Sided
Notes & safety
Notes: 1. Trimming allows the user to increase or decrease the output voltage set point of the module. This is accomplished by connecting an external resistor between the TRIM pin and either the +Vout pin or the –Vout pin.
2. The JFC30 series can only meet EMI Class A or Class B with external components added. See page 5 for more details.
3. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
- For 12VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V) and a TVS (SMDJ58A, 58V, 3000 Watt peak pulse power) diode in parallel.
- For 24VDC and 48VDC nominal input models we recommend an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V).
4. Both positive logic and negative logic remote ON/OFF control is available. Positive logic remote ON/OFF comes standard; for negative logic remote ON/OFF add the suffix “R” to the model number (Ex: JFC24S05-30R).
5. There are several different options available for this series. Please see the “Model Number Setup” on page 5 for all options and ordering information.
6. Optional heatsink is available. Please call factory for more information.
CAUTION: This power module is not internally fused. An input line fuse must always be used.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60950-1, UL60950-1, EN60950-1
RoHS Compliance: Yes
