JFC10
The JFC10 series of DC/DC power converters provides 10 Watts of output power in an industry standard 1.00” x 1.00” x 0.39” package and footprint. This series has single and dual output models with 2:1 wide input voltage ranges of 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency up to 91%, 1600VDC I/O isolation, six-sided shielding, and remote on/off control. These converters are also protected against short circuit, over voltage, over load, and under-voltage. All models are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. This series is best suited for use in wireless networks, telecom/datacom, industry control systems, measurement equipment, and semiconductor equipment.
• High Efficiency up to 91%
• Remote On/Off Control
• 2:1 Wide Input Voltage Ranges
• Six-Sided Continuous Shielding
• Ultra Low Quiescent Current
• No Minimum Load Requirements
• Single and Dual Outputs
• Fixed Switching Frequency
• Built-in EN55022 Class B Filter
• 10 Watts Maximum Output Power
• Short Circuit, Over Voltage, Over Load, & Under-Voltage Protection
• Wide Operating Temperature Range: -40°C to +85°C
• Compliant to RoHS EU Directive 2011/65/EU
• UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals
• CE Mark meets 2006/95/EC, 2011/95/EC, and 2004/108/EC
• Optional Heatsink Available (Suffix “HC”)
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

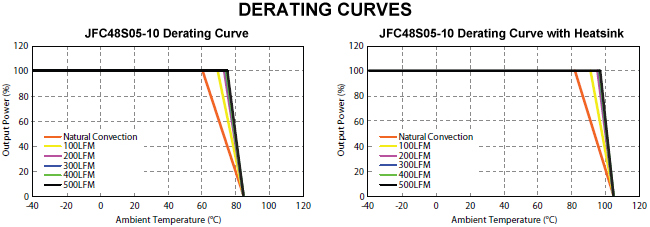

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| JFC12S33-10 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 3000mA | Output Power (W): 9.9 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24S33-10 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 3000mA | Output Power (W): 9.9 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48S33-10 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 3000mA | Output Power (W): 9.9 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC12S05-10 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC12S12-10 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC12S15-10 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC12S24-10 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 416mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24S05-10 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24S12-10 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24S15-10 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24S24-10 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 416mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48S05-10 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48S12-10 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48S15-10 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48S24-10 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 416mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC12D05-10 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC12D12-10 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC12D15-10 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24D05-10 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24D12-10 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC24D15-10 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48D05-10 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48D12-10 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| JFC48D15-10 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 9~18 |
| Remote ON/OFF: | Positive (standard) or Negative (optional) logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 3000mA, 2000mA, 830mA, 670mA, 416mA, ±1000mA, ±416mA, ±333mA |
| Output Power (Watts): | 9.9, 10 |
| Output Trim/Adjustability: | 3.3V & 12V Models: ±10%Others: -10%, +20% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | For Single Outputs |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.58 oz |

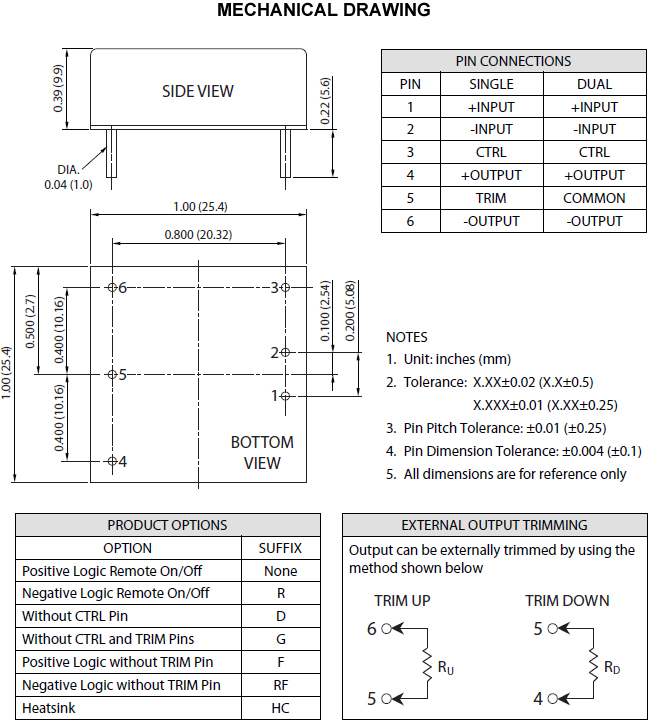

| Dimensions: | 1.00x1.00x0.39 |
| Case Material: | Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. Trimming allows the user to increase or decrease the output voltage set point of the module. This is accomplished by connecting an external resistor between the Trim pin and either the +Vout pin or the –Vout pin. 2. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY series, 220µF/100V. 3. The JFC10 series standard modules meet EN55022 Class A without external components and meet Class B with external components. For more details please call factory. 4. Both positive logic and negative logic remote on/off control is available. Positive logic remote on/off comes standard; for negative logic remote on/off add the suffix “R” to the model number (Ex: JFC24S05-10R). 5. There are several different options available for this series. Please see the “Model Number Setup” on page 5 for all options and ordering information. 6. Optional heatsink is available. Please call factory for more information. 7. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
