JF

The JF series of DC DC Converters provides 15 Watts of output power in a low profile industry standard package and footprint. These converters have single outputs and operate over 2:1 input voltage ranges of 18-36VDC and 36-75VDC. These units are also protected against short circuit, over current, over voltage, and input under voltage conditions. Some features include high efficiency up to 88%, adjustable output voltage, and positive or negative remote ON/OFF control. These converters are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. Both surface mount (“S” suffix) and DIP (standard) packages are available.

• 15 Watts Maximum Output Power • Single Outputs • Cost Efficient Open Frame Design • Small Size and Low Profile: 1.10” x 0.94” x 0.34” • High Efficiency up to 88% • 2:1 Wide Input Voltage Ranges: 18-36VDC and 36-75VDC • Fixed Switching Frequency • Input to Output Isolation: 2250VDC • No Minimum Load Requirement • Output Voltage Adjustability • Industry Standard Pin-out • Negative or Positive Remote ON/OFF Control • Short Circuit, Over Current, Over Voltage, and Input Under Voltage Protection • SMT Package Qualified for Lead-free Reflow Solder Process According to IPC J-STD-020D • CE Mark Meets 2006/95/EC, 93/68/EEC, and 2004/108/EC • Compliant to RoHS EU Directive 2002/95/EC • UL60950-1, EN60950-1, and IEC60950-1 Licensed • Surface Mount and Through Hole Types Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
JF24S3.3-3500S Input Voltage: 24 Output Voltage: 3.3 Output Current: 3.5A Output Power (W): 11.55 No. Outputs: S Case: Surface Mount Get a Quote
JF48S3.3-3500S Input Voltage: 48 Output Voltage: 3.3 Output Current: 3.5A Output Power (W): 11.55 No. Outputs: S Case: Surface Mount Get a Quote
JF24S3.3-3500 Input Voltage: 24 Output Voltage: 3.3 Output Current: 3.5A Output Power (W): 11.55 No. Outputs: S Case: Through Hole Get a Quote
JF48S3.3-3500 Input Voltage: 48 Output Voltage: 3.3 Output Current: 3.5A Output Power (W): 11.55 No. Outputs: S Case: Through Hole Get a Quote
JF24S12-1250S Input Voltage: 24 Output Voltage: 12 Output Current: 1.25A Output Power (W): 15 No. Outputs: S Case: Surface Mount Get a Quote
JF24S15-1000S Input Voltage: 24 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Surface Mount Get a Quote
JF24S5-3000S Input Voltage: 24 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: Surface Mount Get a Quote
JF48S12-1250S Input Voltage: 48 Output Voltage: 12 Output Current: 1.25A Output Power (W): 15 No. Outputs: S Case: Surface Mount Get a Quote
JF48S15-1000S Input Voltage: 48 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Surface Mount Get a Quote
JF48S5-3000S Input Voltage: 48 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: Surface Mount Get a Quote
JF24S12-1250 Input Voltage: 24 Output Voltage: 12 Output Current: 1.25A Output Power (W): 15 No. Outputs: S Case: Through Hole Get a Quote
JF24S15-1000 Input Voltage: 24 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Through Hole Get a Quote
JF24S5-3000 Input Voltage: 24 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: Through Hole Get a Quote
JF48S12-1250 Input Voltage: 48 Output Voltage: 12 Output Current: 1.25A Output Power (W): 15 No. Outputs: S Case: Through Hole Get a Quote
JF48S15-1000 Input Voltage: 48 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Through Hole Get a Quote
JF48S5-3000 Input Voltage: 48 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 18-36, 36-75
Remote ON/OFF: Positive or negative logic
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15
Output Current: 3.5A, 3A, 1.25A, 1A
Output Power (Watts): 11.55, 15
Output Trim/Adjustability: ±10%
Short Circuit Protection: hiccup, automatic recovery
Over Voltage Protection: Yes
General
Efficiency: Up to 88%
Isolation: 2250VDC
Environmental

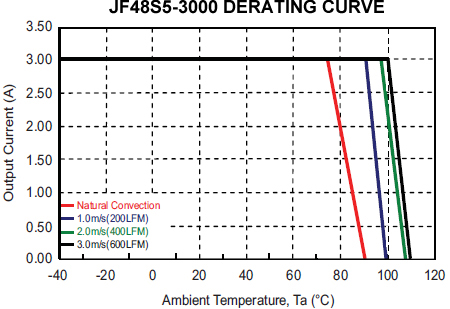

Operating Temperature: -40 - +85°C
Storage Temperature: -55 to +125°C
Physical
Weight: 0.36 oz.

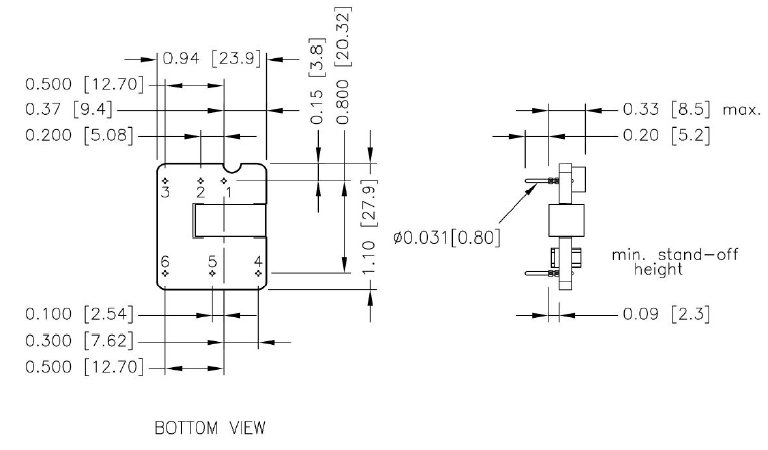

Dimensions: 1.1in. × 0.94in. × 0.34in.
Notes & safety
Notes: 1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment).

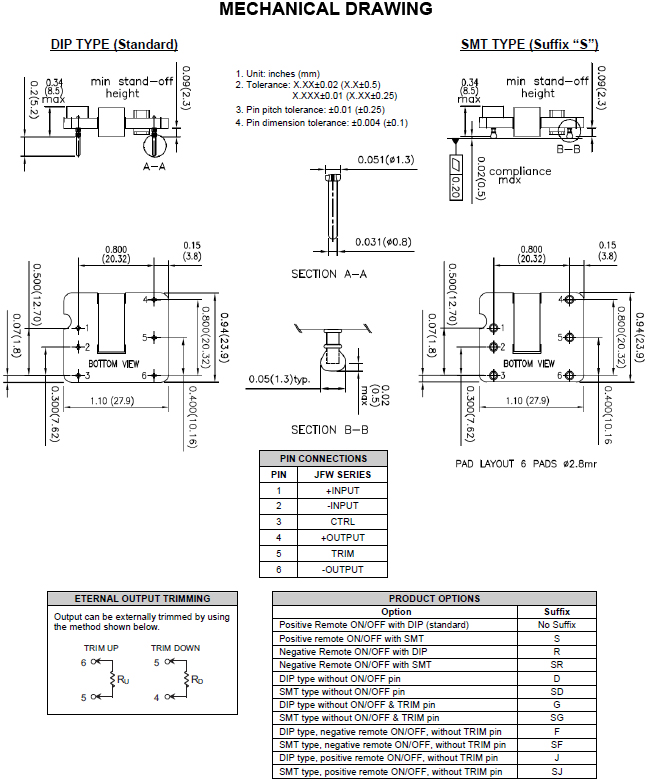

2. Trimming allows the user to increase or decrease the output voltage set point of the module. This is accomplished by connecting an external resistor between the TRIM pin and either the +OUTPUT pin or the -OUTPUT pin.
3. The CTRL pin voltage is referenced to -INPUT. (See data sheet for more details).
4. The JF Series meets EN55022 class A and class B only with external components connected to the input pins of the converter.
5. An external filter capacitor is required if the module has to meet EN61000-4-4 and EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY Series, 220µF/100V, ESR 48Ω.

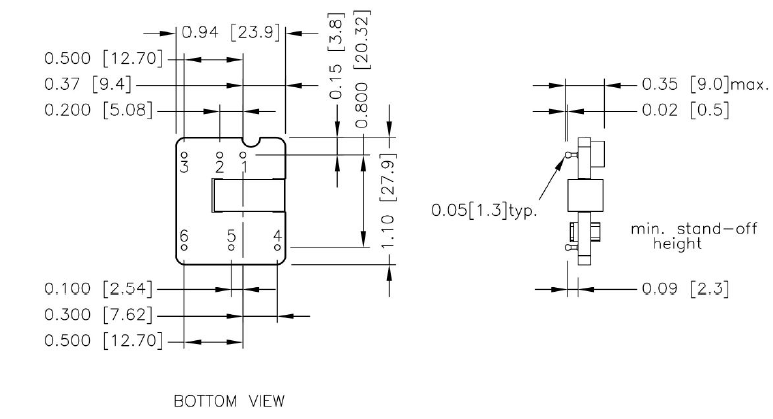

6. To order the surface mount version add the suffix "S" to the model number.
7. Other suffix options are available. Please see the data sheet for more details.
8. CAUTION: These power modules are not internally fused. An input line fuse must always be used.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: IEC60950-1, UL60950-1, EN60950-1
RoHS Compliance: Yes
