JC
JC series DC/DC converters are in a “gull-wing” SMT package and meet 245°/10sec in solder-reflow for lead free process. The series consists of 2 watt models that operate over input voltage ranges of 4.5-9VDC, 9-18VDC, 18-36VDC, and 36-75VDC. The -40°C to +71°C operating temperature range makes it ideal for data communication equipment, mobile battery driven equipment, distributed power systems, telecommunication equipment, mixed analog/digital subsystems, process/machine control equipment, computer peripheral systems, and industrial robot systems. These converters have a typical full-load efficiency of 81%, continuous short circuit protection, and 30mV output ripple. These converters also have EN55022 Class A conducted noise compliance which minimizes design time, cost, and eliminates the need for external filtering.
● Low Cost
● 1500VDC Isolation
● Efficiency up to 81%
● Low Ripple and Noise
● MTBF > 1,000,000 Hours
● Internal SMT Construction
● UL 94V-0 Package Material
● 2:1 Wide Input Voltage Range
● Complies with EN55022 Class A
● Temperature Performance –40°C to +71°C
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| JC12S33-500 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC24S33-500 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC48S33-500 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC5S33-500 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC12D12-83 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC12D15-67 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC12D5-200 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC12S12-167 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC12S15-134 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC12S5-400 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC24D12-83 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC24D15-67 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC24D5-200 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC24S12-167 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC24S15-134 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC24S5-400 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC48D12-83 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC48D15-67 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC48D5-200 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC48S12-167 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC48S15-134 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC48S5-400 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC5D12-83 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC5D15-67 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC5D5-200 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC5S12-167 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC5S15-134 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 134A | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| JC5S5-400 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.94" × 0.54" × 0.31" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 18-36, 36-75, 4.5-9, 9-18 |
| Input Filter: | Pi Filter |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 500mA, 400mA, 167mA, 134mA, ±200mA, ±83mA, ±67mA |
| Output Power (Watts): | 1.65, 2 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 81% |
| Isolation: | 1500VDC |
| Environmental | |

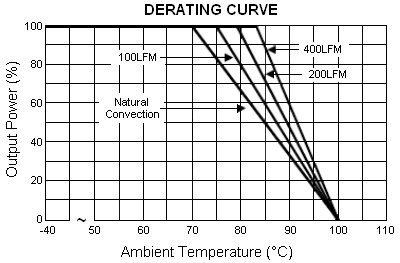

| Operating Temperature: | -40 to 90°C |
| Storage Temperature: | -40 to 125°C |
| Physical | |
| Weight: | 0.13oz (3.75g) |

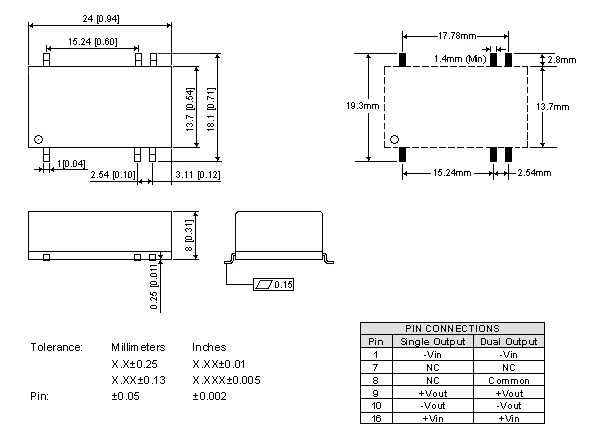

| Dimensions: | 0.94in. × 0.54in. × 0.31in. |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%. 2. Ripple & noise measurement bandwidth is 0-20 Mhz. 3. These power converters require a minimum output loading to maintain specified regulation. 4. Operation under lo-load conditions will not damage these modules; however, they may not meet all listed specifications. 5. All DC/DC converters should be externally fused on the front end for protection. 6. Other input and output voltages may be available, please contact factory. Due to advances in technology, specifications are subject to change without notice. |
