IB
The IB series features extremely high input/output isolation in a miniature 1.5 watt package. Designed with a low profile and 24 pin DIP compatibility, the IB fits easily into PC board assemblies. High efficiency (>75% typical) is a result of state-of-the-art circuitry with an oscillator frequency greater than 50kHz.
• highly isolated, 8000 VDC
• single and dual outputs
• short circuit protection
• industry standard packages
• high efficiency: 75% typical
• MTBF > 2,000,000 hours
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| IBD1512-DIL | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: 63mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD1515-DIL | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: 50mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD155-DIL | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: 150mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD212-DIL | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: 63mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD215-DIL | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: 50mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD25-DIL | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: 150mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD512-DIL | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: 63mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD515-DIL | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: 50mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBD55-DIL | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: 150mA | Output Power (W): 1.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS1512 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 125mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS1515 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 100mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS155 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 300mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS212 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 125mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS215 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 100mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS25 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 300mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS512 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 125mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS515 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 100mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS55 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 300mA | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| IBS248 | Input Voltage: 12 | Output Voltage: 48 | Output Current: 50mA | Output Power (W): 2.4 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 15 |
| Input Voltage Range: | 10.8-13.2, 13.5-16.5, 4.5-5.5 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 48, ±5, ±12, ±15 |
| Voltage Accuracy: | ±3% |
| Output Current: | 300mA, 125mA, 100mA, 150mA, 63mA, 50mA |
| Output Power (Watts): | 1.5, 2.4 |
| General | |
| Efficiency: | 75% |
| Isolation: | 8000VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1 oz. |
| Dimensions: | 1.25in. × 0.8in. × 0.4in. |
| Case Material: | Non-Metallic |
| Notes & safety | |

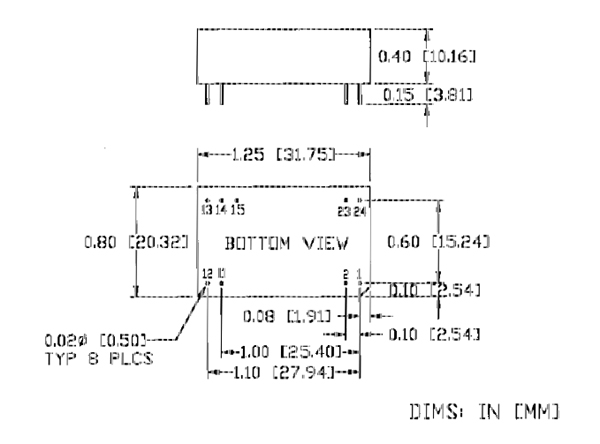

| Notes: | 1. All case and pin-to-case dimensions for reference only, unless noted otherwise. 2. Pin details: eight pins (single output) nine pins (dual output) 0.02"diameter x 0.15" long. 3. 1500VDC I/O isolation, IBS248 package only. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
