The ELV series is an economy version of our LV series. The ELV series consists of high density, low input voltage, isolated converters with a wide input voltage range. Low input voltage converters are uncommon in the industry and the ELV series offers the flexibility of operation with both 12V and 24V busses. This state-of-the-art converter’s features include fast transient response, short circuit protection, over current protection, soft start, and many other features that are required for today’s demanding applications.

● Soft Start ● 100% Burn In ● High Reliability ● Remote ON/OFF ● Up to 87% Efficient ● Cost Efficient Solution ● Fast Transient Response ● Fixed Switching Frequency ● Optional Heatsink Available ● Economy Version of the LV Series ● Short Circuit and Over Current Protected ● Remote Sense Compensation to 10% Vout ● Optional Encapsulation for Added Ruggedness
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
ELV12S15-50 Input Voltage: 12/24 Output Voltage: 15 Output Current: 3.33A Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
ELV12S15-50TH Input Voltage: 12/24 Output Voltage: 15 Output Current: 3.33A Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
ELV12S18-50 Input Voltage: 12/24 Output Voltage: 18 Output Current: 2.78A Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
ELV12S18-50TH Input Voltage: 12/24 Output Voltage: 18 Output Current: 2.78A Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
ELV12S3.3-75 Input Voltage: 12/24 Output Voltage: 3.3 Output Current: 21.4A Output Power (W): 75 No. Outputs: S Case: Through Hole Get a Quote
ELV12S3.3-75TH Input Voltage: 12/24 Output Voltage: 3.3 Output Current: 21.4A Output Power (W): 75 No. Outputs: S Case: Through Hole Get a Quote
ELV12S12-100 Input Voltage: 12/24 Output Voltage: 12 Output Current: 8.3A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S12-100TH Input Voltage: 12/24 Output Voltage: 12 Output Current: 8.3A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S15-100 Input Voltage: 12/24 Output Voltage: 15 Output Current: 6.67A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S15-100TH Input Voltage: 12/24 Output Voltage: 15 Output Current: 6.67A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S18-100 Input Voltage: 12/24 Output Voltage: 18 Output Current: 5.56A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S18-100TH Input Voltage: 12/24 Output Voltage: 18 Output Current: 5.56A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S20-100 Input Voltage: 12/24 Output Voltage: 20 Output Current: 5A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S20-100TH Input Voltage: 12/24 Output Voltage: 20 Output Current: 5A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S5-100 Input Voltage: 12/24 Output Voltage: 5 Output Current: 20A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S5-100TH Input Voltage: 12/24 Output Voltage: 5 Output Current: 20A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S8-100 Input Voltage: 12/24 Output Voltage: 8 Output Current: 12.5A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
ELV12S8-100TH Input Voltage: 12/24 Output Voltage: 8 Output Current: 12.5A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12/24
Input Voltage Range: 10-36
Remote ON/OFF: Active High or Active Low
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 8, 12, 15, 18, 20
Voltage Accuracy: ±1%
Output Current: 2.78A, 3.3A, 5A, 5.56A, 6.67A, 8.3A, 12.5A, 20A, 21.4A
Output Power (Watts): 50, 75, 100
Output Trim/Adjustability: ±10%
Short Circuit Protection: continuous
General
Efficiency: 87%
Isolation: 1500VDC
Environmental
Operating Temperature: -40 to 100°C
Storage Temperature: -50 to 125°C
Physical
Weight: 4 oz.
Dimensions: 2.28in. × 2.4in. × 0.5in.
Case Material: Aluminum Alloy
Notes & safety
Notes: 1. Logic Enable referenced to -Vin. Active high enable is standard; for active low enable add the suffix “R” to the part number (Ex: ELV12S15-100R).
2. This series is available in both encapsulated and open frame designs. For open Frame design add the suffix “O” to the part number (Ex: ELV12S15-100O).
3. Pin to pin tolerance: ±0 .01" [± 0.3mm], pin diameter tolerance: ± 0.005" [± 0.13mm].
4. Case material: 0.040" [1.02mm] thick, aluminum alloy 3003-0, per: QQA 250/2.

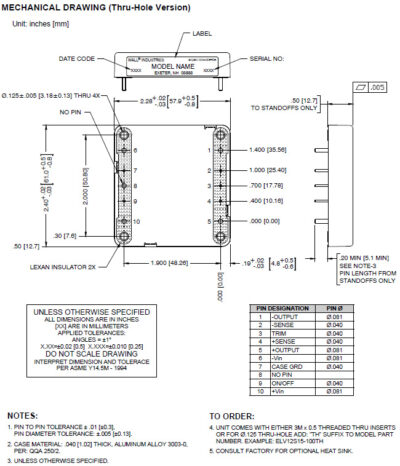

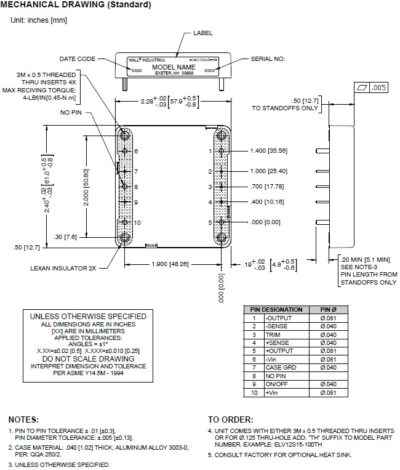

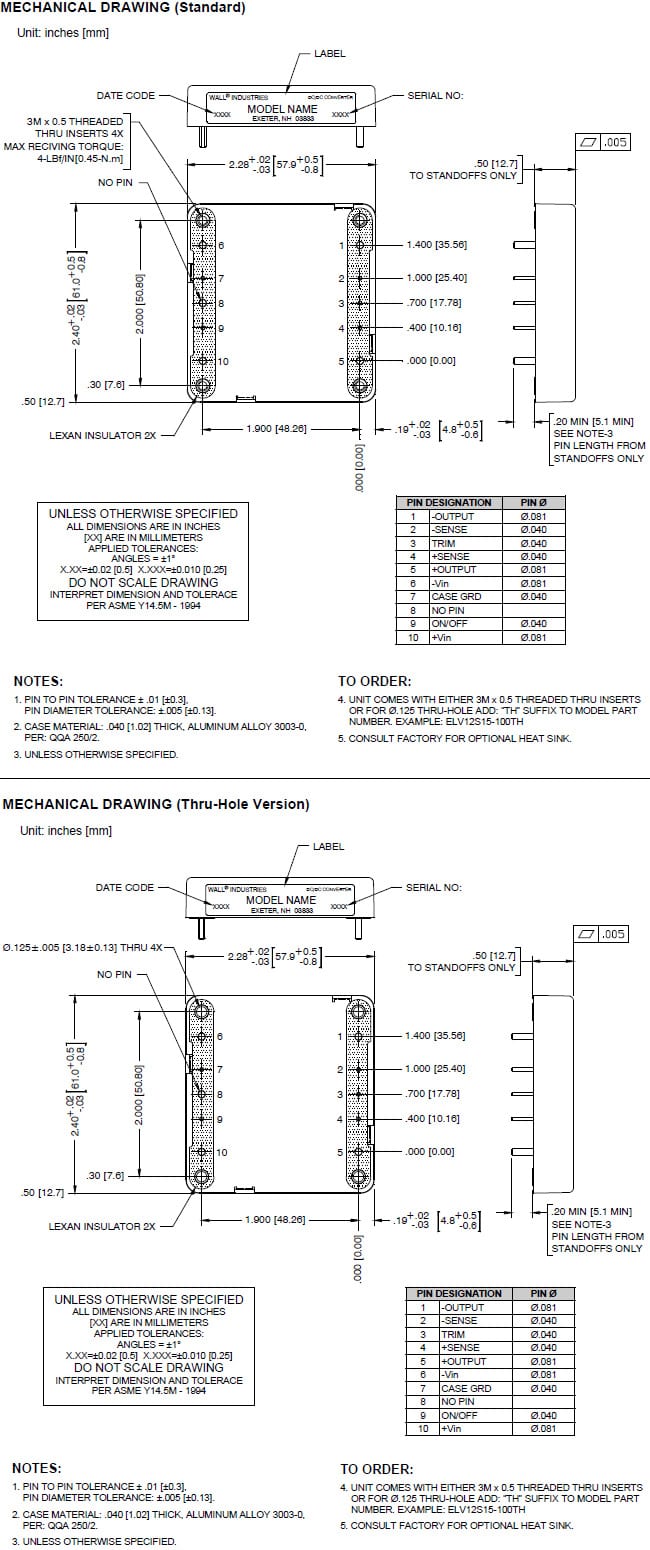

5. Unit comes with either 3M x 0.5 threaded thru inserts or for Ø.125 thru-hole add "TH" suffix to model part number. Example: ELV12S12-100TH.
6. Optional heatsink available. Please call factory for ordering details.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: OE60950-1, RN60950-1, IEC60950-1
