DMW
The DMW series of DC/DC converters provide up to 15 watts in a 2 x 1 x 0.4 inch package. These converters operate over 4:1 wide input voltage ranges of 9-36VDC and 18-75VDC. This series also has single and dual output models available. These converters feature efficiency up to 86%, positive remote ON/OFF (optional), six-sided shielding, 1500VDC isolation, and short circuit protection. This series is ideal for data communication equipment, mobile battery driven equipment, process/machine control equipment, telecommunication equipment, computer peripheral systems, distributed power systems, mixed analog/digital subsystems, and industrial robot systems. The EN55022 Class A conducted noise compliance minimizes design time, cost, and eliminates the need for external filter components.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DMW24S3.3-3000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 3A | Output Power (W): 9.9 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48S3.3-3000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 3A | Output Power (W): 9.9 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW24D12-625 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW24D15-500 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW24D5-1500 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1.5A | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW24S12-1250 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW24S15-1000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW24S5-3000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48D12-625 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48D15-500 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48D5-1500 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1.5A | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48S12-1250 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.25A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48S15-1000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48S5-3000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW24S5.1-3000 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 3A | Output Power (W): 15.3 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| DMW48S5.1-3000 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 3A | Output Power (W): 15.3 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Optional |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 5.1, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1A, 3A, 1.25A, ±1.5A, ±625mA, ±500mA |
| Output Power (Watts): | 9.9, 15, 15.3 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 1500VDC |
| Environmental | |

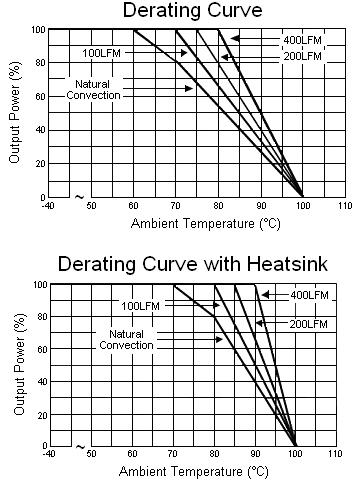

| Operating Temperature: | -40 to 60°C (case: -40 to 100°C) |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1 oz. |

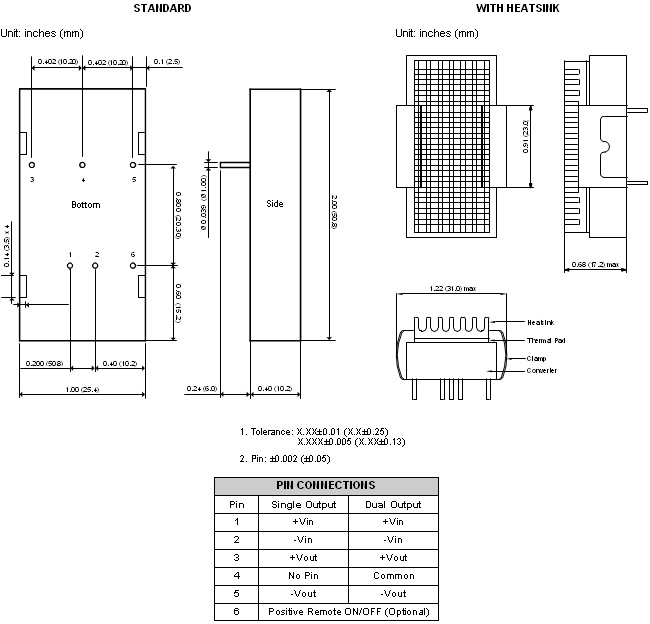

| Dimensions: | 2in. × 1in. × 0.4in. |
| Case Material: | Metal with Non-Conductive Baseplate |
| Notes & safety | |
| Notes: | 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%. 2. The DMW series requires a minimum 10% load on the output to maintain specified regulation. Operation under no-load condition will not damage these devices, however they may not meet all listed specifications. 3. All DC/DC converters should be externally fused at the front end for protection. 4. Other input and output voltages may be available, please contact factory. 5. Only positive control logic remote On/Off is available. To order the converter with positive remote on/off add the suffix “RC” to the part number. 6. To order the converter with EN55022 Class A function, please add the suffix “A” to the part number. 7. To order the converter with a heatsink please add the suffix “HS” to the part number. 8. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
