DI01D

The DI01D series consists of high performance non-isolated DC/DC converters that deliver 1A of output current in a small 0.45” x 0.40” x 0.30” 3-Pin SIP package. This series features a wide operating temperature range of -40°C to +85°C, efficiency up to 96%, and short circuit protection. These converters are RoHS compliant and are suitable for use in wireless networks, telecom/datacom applications, industrial control systems, distributed power architectures, semiconductor equipment, and microprocessor power applications.

• RoHS Compliant • 1A Output Current • Low Output Ripple & Noise • Wide Input Voltage Range: 4.6 to 36VDC • 1.2 to 15 Watts Output Power • Efficiency up to 96% • Single Outputs • 3-Pin SIP Package: 0.45 x 0.40 x 0.30 Inches • Pin-out Compatible with LM78XX Linear Regulators • Short Circuit Protection • UL94V-0 Package Material • Wide Operating Temperature Range: -40°C to +85°C
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DI01D1R2-1A Input Voltage: 9 Output Voltage: 1.2 Output Current: 1A Output Power (W): 1.2 No. Outputs: S Case: Through Hole Get a Quote
DI01D1R5-1A Input Voltage: 9 Output Voltage: 1.5 Output Current: 1A Output Power (W): 1.5 No. Outputs: S Case: Through Hole Get a Quote
DI01D1R8-1A Input Voltage: 9 Output Voltage: 1.8 Output Current: 1A Output Power (W): 1.8 No. Outputs: S Case: Through Hole Get a Quote
DI01D2R5-1A Input Voltage: 9 Output Voltage: 2.5 Output Current: 1A Output Power (W): 2.5 No. Outputs: S Case: Through Hole Get a Quote
DI01D3R3-1A Input Voltage: 12 Output Voltage: 3.3 Output Current: 1A Output Power (W): 3.3 No. Outputs: S Case: Through Hole Get a Quote
DI01D05-1A Input Voltage: 12 Output Voltage: 5 Output Current: 1A Output Power (W): 5 No. Outputs: S Case: Through Hole Get a Quote
DI01D6R5-1A Input Voltage: 12 Output Voltage: 6.5 Output Current: 1A Output Power (W): 6.5 No. Outputs: S Case: Through Hole Get a Quote
DI01D09-1A Input Voltage: 24 Output Voltage: 9 Output Current: 1A Output Power (W): 9 No. Outputs: S Case: Through Hole Get a Quote
DI01D12-1A Input Voltage: 24 Output Voltage: 12 Output Current: 1A Output Power (W): 12 No. Outputs: S Case: Through Hole Get a Quote
DI01D15-1A Input Voltage: 24 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 9, 12, 24
Input Voltage Range: 12-36, 15-36, 18-36, 4.6-36, 4.75-36, 6.5-36, 9-36
Input Filter: C Filter
Input Frequency: 0 Hz
Output
Output Voltage: 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15
Voltage Accuracy: ±2%
Output Current: 1A
Output Power (Watts): 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 96%
Environmental

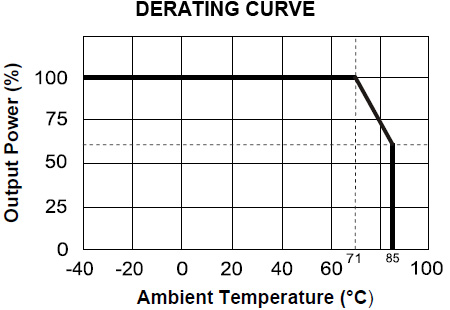

Operating Temperature: -40 to 85°C
Storage Temperature: -55 to 125°C
Physical
Weight: 0.07 oz

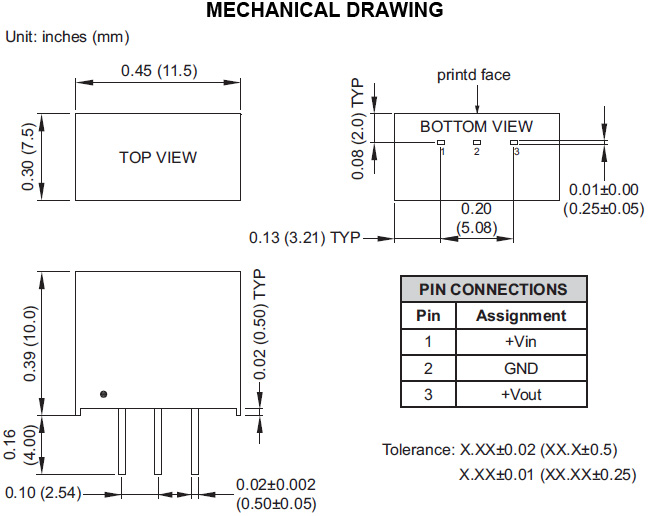

Dimensions: 0.45 x 0.40 x 0.30
Case Material: Non-conductive black plastic
Notes & safety
Notes: Due to advances in technology, specifications are subject to change without notice.
RoHS Compliance: Yes
