DCW150 & DCWD150
The DCW150 and DCWD150 series of DC/DC converters provides up to 200 watts of output power. This series consists of single output models with a wide 4:1 input voltage range. Each model in this series features an adjustable output voltage, constant current mode output limit, and 2250VDC input to output isolation. The models are also protected against over voltage, over load, short circuit, over temperature, and under voltage conditions and are compliant to both RoHS and REACH. The DCW150 and DCWD150 series are CE marked, have UL60950-1, EN60950-1 and IEC60950-1 safety approvals, and meet EN50155 and EN45545-2 railway standards.
• 200 Watts Maximum Output Power
• 4:1 Wide Input Voltage Range
• High Efficiency up to 89%
• CV+CC Mode
• No Minimum Load Required
• 2250VDC Input to Output Isolation
• Adjustable Output Voltage
• Reverse Polarity Protection
• Remote On/Off
• Six-Sided Continuous Shield
• Built-In EN55032 Class A Filter
• Over Voltage, Over Load, Short Circuit, Over Temperature and Under Voltage Protection
• UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals
• CE Marked
• Compliant to RoHS & REACH
• Compliance to EN50155 and EN45545-2 Railway Standard
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCW24S12-150 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD24S12-150 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW24S15-150 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD24S15-150 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW24S24-150 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD24S24-150 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW24S28-150 | Input Voltage: 24 | Output Voltage: 28 | Output Current: 5.4A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD24S28-150 | Input Voltage: 24 | Output Voltage: 28 | Output Current: 5.4A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW24S48-150 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD24S48-150 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW48S12-150 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD48S12-150 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW48S15-150 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD48S15-150 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW48S24-150 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD48S24-150 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW48S28-150 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 5.4A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD48S28-150 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 5.4A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW48S48-150 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD48S48-150 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW110S12-150 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD110S12-150 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW110S15-150 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD110S15-150 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW110S24-150 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD110S24-150 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW110S28-150 | Input Voltage: 110 | Output Voltage: 28 | Output Current: 5.4A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD110S28-150 | Input Voltage: 110 | Output Voltage: 28 | Output Current: 5.4A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| DCW110S48-150 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.56" x 3.86" x 0.67" | Get a Quote |
| DCWD110S48-150 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.07" x 3.86" x 0.67" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 18~75, 43~160, 9~36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 28, 48 |
| Voltage Accuracy: | ±1% |
| Output Current: | 12.5A, 10A, 6.3A, 5.4A, 3.2A |
| Output Power (Watts): | 200 |
| Output Trim/Adjustability: | ±20% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 125-140% |
| Thermal Protection: | +110°C |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | Input to Output: 2250VDC Input (Output) to Case: 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to +100°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |

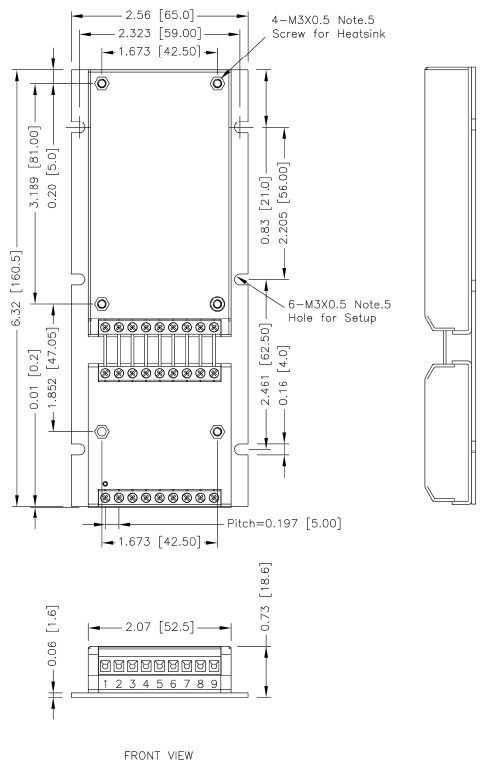

| Weight: | DCW150: 7.94oz (225g) DCWD150: 7.76oz (220g) With Filter (“-F” Suffix): 11.46oz (325g) |

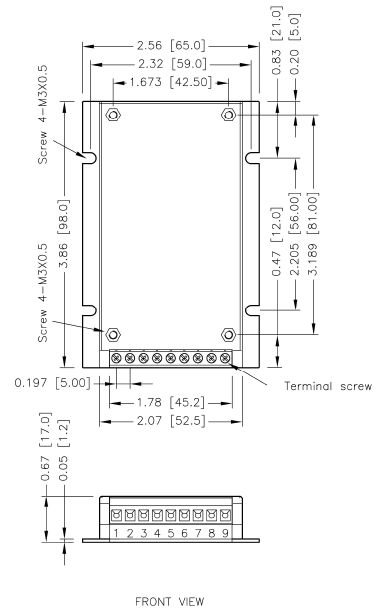

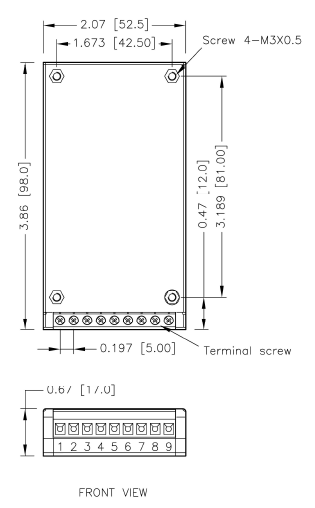

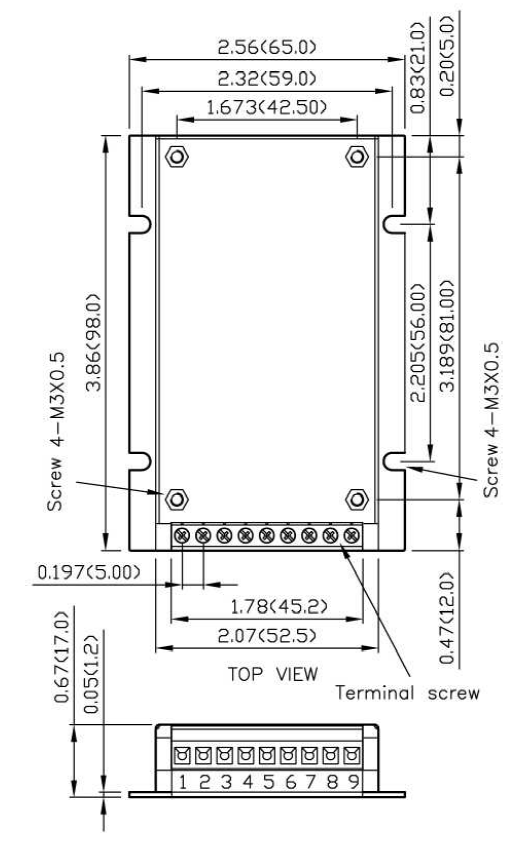

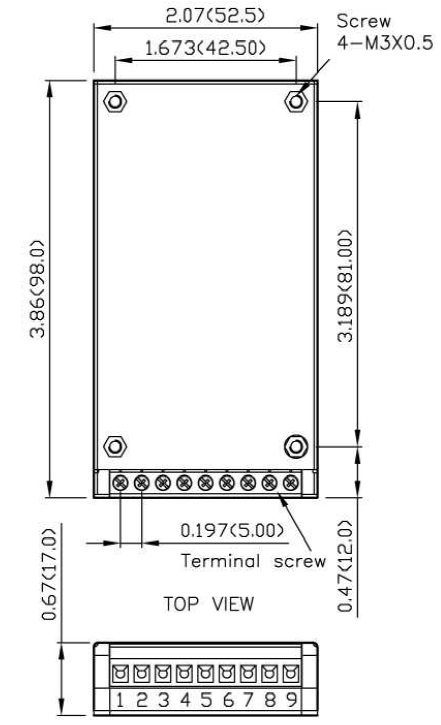

| Dimensions: | DCW150: 2.56" x 3.86" x 0.67" DCWD150: 2.07" x 3.86" x 0.67" |
| Case Material: | Aluminum |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | (1) Measured at Full Load. (2) The remote ON/OFF control pin voltage is referenced to –Vin. The negative logic is optional. (3) This product is Listed to applicable standards and requirements by UL. (4) An external input filter capacitor is required if the module has to meet EN61000-4-4 and EN61000-4-5. We suggest the following: DCW(D)150-24Sxx: Nippon chemi-con KY series, 470µF/50V DCW(D)150-48Sxx: Nippon chemi-con KY series, 220µF/100V DCW(D)150-110Sxx: Nippon chemi-con KXJ series, 150µF/200V CAUTION: This power module is not internally fused; an input line fuse must always be used. If the load has sourcing capability (ex. Battery or super capacitor), an output line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
