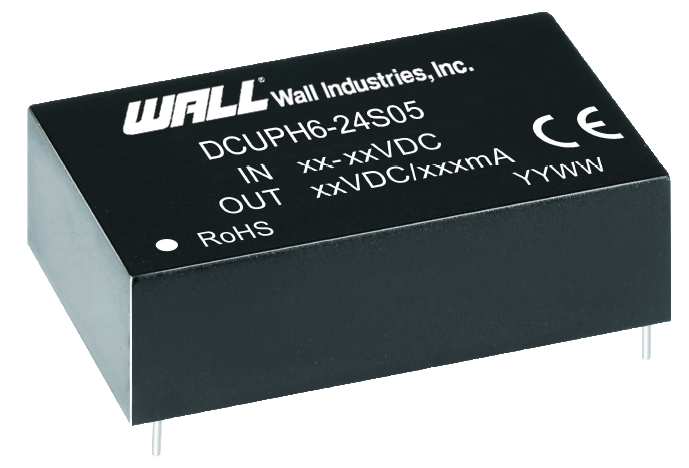

DCUPH6

The DCUPH6 series of DC/DC converters offers up to 6 watts of output power in an ultra-compact 1.24” x 0.80” x 0.40” DIP package. This series consists of single output models with an ultra-wide 4:1 input voltage range. Each model in this series features high efficiency, international standard pin-out, as well as protection against over current, over voltage, short circuit, and input under voltage conditions. This series has EN60601-1 (3rd Edition) approval and is RoHS compliant.

• Ultra Wide 4:1 Input Voltage Range • International Standard Pin-Out • High Efficiency • Isolated & Regulated Single Output • RoHS Compliant • Over Current, Over Voltage, and Short Circuit Protection • Input Under Voltage Protection • Transformer Creepage 8mm • Transformer Clearance 5mm • CE Certified • EN60601-1 (3rd Edition) Medical Approval
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DCUPH6-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-24S06 Input Voltage: 24 Output Voltage: 6 Output Current: 1000mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-24S09 Input Voltage: 24 Output Voltage: 9 Output Current: 667mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-24S24 Input Voltage: 24 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-48S05 Input Voltage: 48 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-48S09 Input Voltage: 48 Output Voltage: 9 Output Current: 667mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-48S12 Input Voltage: 48 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-48S15 Input Voltage: 48 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
DCUPH6-48S24 Input Voltage: 48 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 1.24" x 0.8" x 0.4" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 9~36, 18~75
Input Filter: Pi Filter
Output
Output Voltage: 5, 6, 9, 12, 15, 24
Voltage Accuracy: ±1
Output Current: 250mA, 400mA, 500mA, 667mA, 1000mA, 1200mA
Output Power (Watts): 6
Short Circuit Protection: Continuous, Self-Recovery
Over Voltage Protection: 110-160%Vo
General
Efficiency: Up to 85%
Isolation: 6000VDC
Environmental
Operating Temperature: -40 to 85ºC
Storage Temperature: -55 to 125ºC
Physical
Weight: 0.46oz (13g)

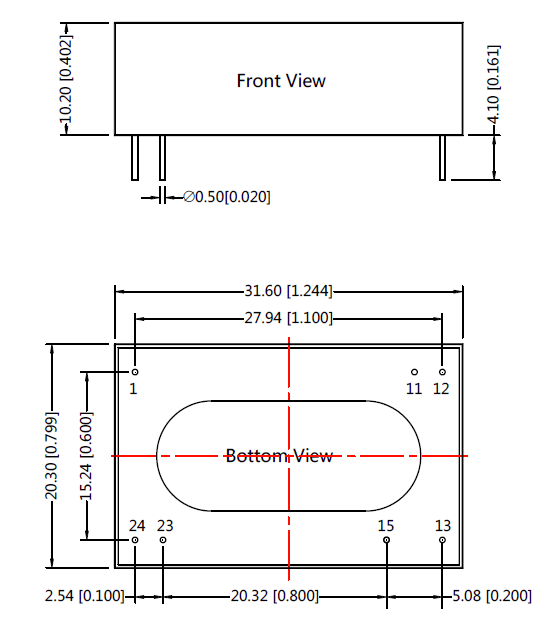

Dimensions: 1.24in x 0.8in x 0.40in (31.6mm x 20.30mm x 10.20mm)
Case Material: Black Flame-Retardant and Heat-Resistant Plastic
Notes & safety
Notes: 1. When testing from 0% to 100% load working conditions, load regulation index of ±5%.
2. 0%-5% load ripple & noise is no more than 5%Vo. Ripple and noise tested with “parallel cable” method, oscilloscope using the 1X probe. Contact factory for more specific operation methods.
3. This series uses frequency technology, the switching frequency is the test value for full load. When load is reduced below 50%, the switching frequency decreases with decreasing load.
4. Customization available.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN60601-1 (3rd Edition)
RoHS Compliance: Yes
