DCSPM2
The DCSPM2 series of DC/DC converters in an ultra-compact 0.77” x 0.39” x 0.49” 7pin SIP package. This series consists of single and dual unregulated output models with a wide input voltage range. Features of this series include industry standard pinout, 5000VAC or 6000VDC isolation, as well as high efficiency. This series is RoHS compliant and the design meets IEC60601 approvals.
• Wide Input Voltage Range • 7PIN SIP Package • High Efficiency • Unregulated Output Types • RoHS Compliant • Industry Standard Pinout • Continuous Short Circuit Protection • 5000VAC or 6000VDC Isolation • Isolation Capacitance as Low as 4pF • Meets IEC60601 Standard
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCSPM2-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12S09 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15S24 | Input Voltage: 15 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05D05 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05D09 | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-05D24 | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12D09 | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-12D24 | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15D05 | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15D09 | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15D12 | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15D15 | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-15D24 | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24D09 | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSPM2-24D24 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 15, 24 |
| Input Voltage Range: | 4.5~5.5, 10.8~13.2, 13.5~16.5, 21.6~26.4 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 |
| Output Current: | 84mA, 133mA, 167mA, 222mA, 400mA, ±42mA, ±67mA, ±84mA, ±111mA, ±200mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 5000VAC or 6000VDC |
| Environmental | |
| Operating Temperature: | -40 to +105ºC |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.14oz (4g) |

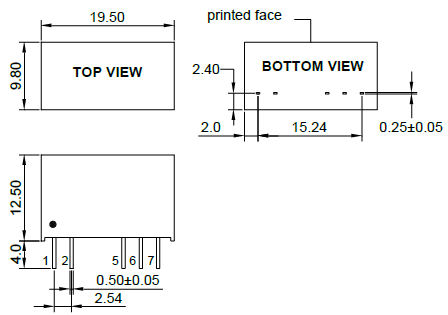

| Dimensions: | 0.77in x 0.39in x 0.49in (19.5mm x 9.8mm x 12.5mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60601 |
| RoHS Compliance: | Yes |
