DCSDW05

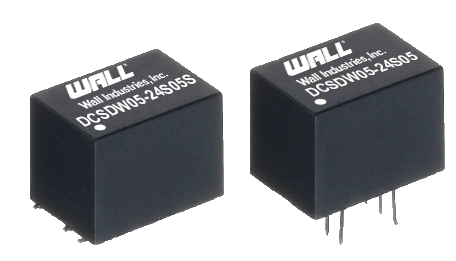

The DCSDW05 series of DC/DC converters offers up to 5.04 watts of output power in compact SMD or DIP package. This series consists of both single and dual output models with an ultra-wide 4:1 input range. Each model in this series requires no minimum load, is CE marked, and has continuous short circuit protection. This series is RoHS II & REACH compliant and it has UL60950-1, EN6090-1, & IEC60950-1 safety approvals. Please call factory for order details.

• 4:1 Ultra Wide Input Range • Ultra Small SMD or DIP Package • SMD Package Qualified for Lead-Free Reflow Solder Process According IPC J-STD-020D • 1600VDC Isolation or Optional 3000VDC • No Minimum Load Required • Continuous Short Circuit Protection • CE Marked • RoHS II & REACH Compliant • UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCSDW05-24S33 Input Voltage: 24 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 420mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 333mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-24S24 Input Voltage: 24 Output Voltage: 24 Output Current: 210mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-48S33 Input Voltage: 48 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-48S05 Input Voltage: 48 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-48S15 Input Voltage: 48 Output Voltage: 15 Output Current: 333mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-48S24 Input Voltage: 48 Output Voltage: 24 Output Current: 210mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
DCSDW05-24D05 Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±500mA Output Power (W): 5.04 No. Outputs: D Case: Through Hole Get a Quote
DCSDW05-24D12 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±210mA Output Power (W): 5.04 No. Outputs: D Case: Through Hole Get a Quote
DCSDW05-24D15 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±168mA Output Power (W): 5.04 No. Outputs: D Case: Through Hole Get a Quote
DCSDW05-48D05 Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±500mA Output Power (W): 5.04 No. Outputs: D Case: Through Hole Get a Quote
DCSDW05-48D12 Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±210mA Output Power (W): 5.04 No. Outputs: D Case: Through Hole Get a Quote
DCSDW05-48D15 Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±168mA Output Power (W): 5.04 No. Outputs: D Case: Through Hole Get a Quote
DCSDW05-24S33S Input Voltage: 24 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-24S05S Input Voltage: 24 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-24S12S Input Voltage: 24 Output Voltage: 12 Output Current: 420mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-24S15S Input Voltage: 24 Output Voltage: 15 Output Current: 333mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-24S24S Input Voltage: 24 Output Voltage: 24 Output Current: 210mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-48S33S Input Voltage: 48 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-48S05S Input Voltage: 48 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-48S12S Input Voltage: 48 Output Voltage: 12 Output Current: 420mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-48S15S Input Voltage: 48 Output Voltage: 15 Output Current: 333mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-48S24S Input Voltage: 48 Output Voltage: 24 Output Current: 210mA Output Power (W): 5.04 No. Outputs: S Case: Surface Mount Get a Quote
DCSDW05-24D05S Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±500mA Output Power (W): 5.04 No. Outputs: D Case: Surface Mount Get a Quote
DCSDW05-24D15S Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±210mA Output Power (W): 5.04 No. Outputs: D Case: Surface Mount Get a Quote
DCSDW05-24D15S Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±168mA Output Power (W): 5.04 No. Outputs: D Case: Surface Mount Get a Quote
DSDW05-48D05S Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±500mA Output Power (W): 5.04 No. Outputs: D Case: Surface Mount Get a Quote
DCSDW05-48D12S Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±210mA Output Power (W): 5.04 No. Outputs: D Case: Surface Mount Get a Quote
DCSDW05-48D15S Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±168mA Output Power (W): 5.04 No. Outputs: D Case: Surface Mount Get a Quote
DCSDW05-48S12 Input Voltage: 48 Output Voltage: 12 Output Current: 420mA Output Power (W): 5.04 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 9-36, 18-75
Input Filter: Capacitor Type
Output
Output Voltage: 3.3, 5, 12, 15, 24, ±5, ±12, ±15
Voltage Accuracy: ±1.0%
Output Current: 1000mA, 420mA, 333mA, 210mA, ±500mA, ±210mA, ±168mA
Output Power (Watts): 5.04
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 84%
Isolation: Standard: 1600VDC
"S" Suffix: 3000VDC
Environmental
Operating Temperature: -40 to 105ºC
Storage Temperature: -55 to 125ºC
Physical
Weight: 0.10oz (2.7g)

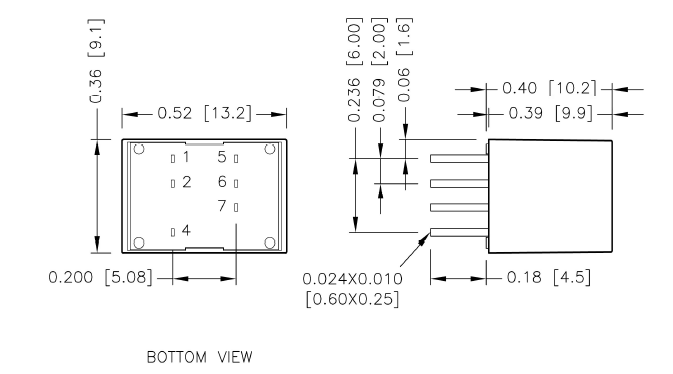

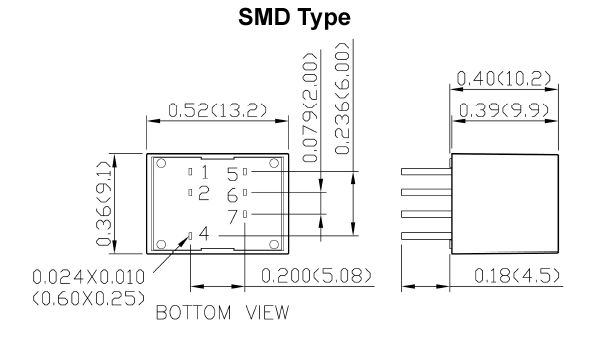

Dimensions: Through Hole Package: 0.52in x 0.36in x 0.40in

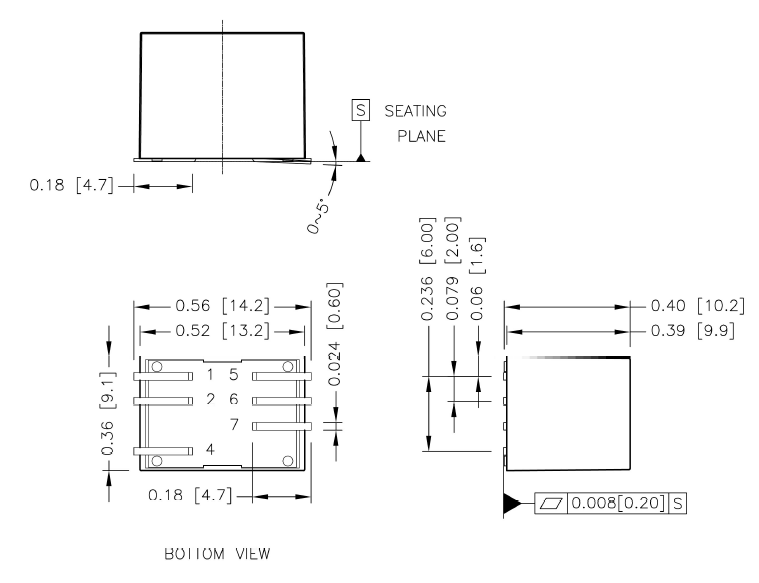

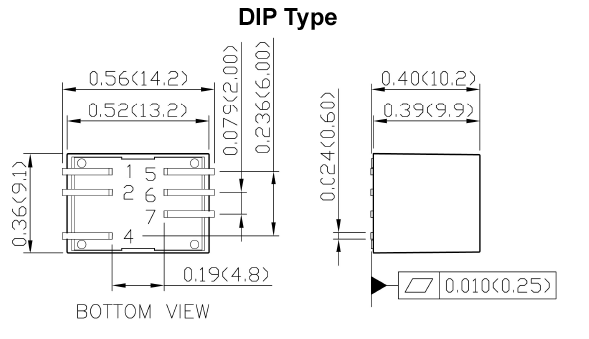

Surface Mount Package: 0.56in x 0.36in x 0.40in
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. The standard module meets EMI Class A or Class B and input reflected ripple current with external components. For more information, please contact factory.
2. An external input filter capacitor is required if the module is to meet EN61000-4-4 and EN61000-4-5. Suggested filter: Nippon chemi-con KY series, 220µF/100V.
CAUTION: This power module is not internally fused. AN input line fuse must always be used.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, EN60950-1, IEC60905-1
RoHS Compliance: Yes
