DCSDW03
The DCSDW03 series of DC/DC converters offers up to 3 watts of output power in a compact SMD or DIP package. This series consists of single and dual outputs with an ultra-wide 4:1 input range. Each model in this series is CE marked, RoHS II & REACH compliant, and protected against short circuit conditions. This series also has UL60950-1, EN60950-1, and IEC6090-1 safety approvals. Please call factory for order details.
• 4:1 Ultra Wide Input Range
• Ultra Small SMD or DIP Package
• SMD Package Qualified for Lead-free Reflow Solder Process According to IPC J-STD-020D
• 1600VDC Input to Output Isolation or 3000VDC Optional Isolation
• CE Marked
• RoHS II & REACH Compliant
• No Minimum Load Required
• Short Circuit Protection
• UL60950-1, EN60950-1, and IEC6090-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCSDW03-12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 700mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 700mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 700mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S33S | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 700mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S05S | Input Voltage: 12 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S12S | Input Voltage: 12 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S15S | Input Voltage: 12 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12S24S | Input Voltage: 12 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S33S | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 700mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S05S | Input Voltage: 24 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S12S | Input Voltage: 24 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S15S | Input Voltage: 24 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24S24S | Input Voltage: 24 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S33S | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 700mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S05S | Input Voltage: 48 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S12S | Input Voltage: 48 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S15S | Input Voltage: 48 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48S24S | Input Voltage: 48 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12D05S | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12D12S | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-12D15S | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24D05S | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24D12S | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-24D15S | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48D05S | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±300mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48D12S | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW03-48D15S | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 4.5-18, 9-36, 18-75 |
| Input Filter: | Capacitor Type |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 700mA, 600mA, 250mA, 200mA, 125mA, ±300mA, ±125mA, ±100mA |
| Output Power (Watts): | 3 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | Standard: 1600VDC "S" Suffix: 3000VDC |
| Environmental | |
| Operating Temperature: | Without Derating: -40 to 71ºC With Derating: 71 to 105ºC |
| Storage Temperature: | -55 to 125ºC |
| Physical | |
| Weight: | 0.10oz (2.7g) |

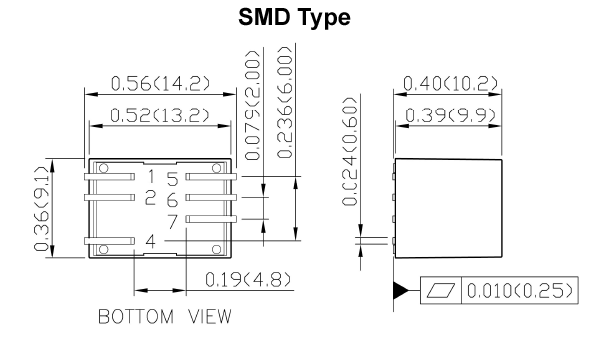

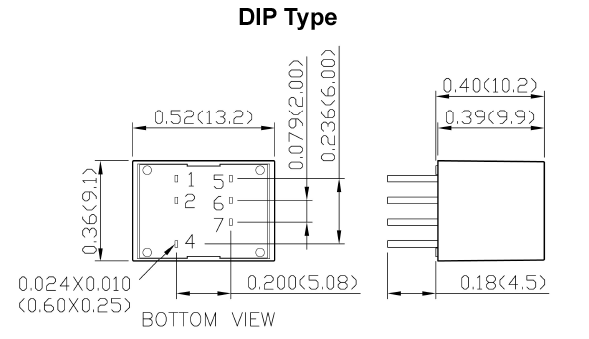

| Dimensions: | Through Hole Package: 0.52in x 0.36in x 0.40in Surface Mount Package: 0.56in x 0.36in x 0.40in |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. Add “S” to model number for SMD package type. 2. The standard module meets EMI Class A or Class B and input reflected ripple current with external component. For more information, please contact factory. 3. An external input filter capacitor is required if the module is to meet EN61000-4-4, EN61000-4-5. Suggested filter capacitor: Nippon chemi-con KY series, 220 µF/100V. 4. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
