DCSD02
The DCSD02 series of DC DC converters provides 2 watts of output power in a 0.52 x 0.36 x 0.39 inch package. This series has single and dual output models with 2:1 wide input voltage ranges of 4.5-9VDC, 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency up to 86%, 1600VDC (standard) or 3000VDC (suffix “H”) I/O isolation, remote on/off control, and short circuit protection. Both DIP (standard) and SMT (suffix “S”) package types are available for this series. All models are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. This series is best suited for use in industry control systems, wireless networks, telecom/datacom, measurement equipment, and semiconductor equipment.
• Ultra small SMT and DIP Packages
• No Minimum Load Required
• High Efficiency up to 86%
• 2:1 Wide Input Voltage Ranges
• 2 Watt Maximum Output Power
• Continuous Short Circuit Protection
• 1600VDC I/O Isolation (Optional 3000VDC Isolation)
• CE Mark Meets 2006/95/EC, 2011/95/EC, & 2004/108/EC
• Compliant to RoHS EU Directive 2011/65/EU
• SMT Package Qualified for Lead-Free Reflow Solder Process According to IPC J-STD-020D
• UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCSD02-5S33 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S33S | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S33S | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S33S | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S33S | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S05S | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5D05 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5D05S | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S12S | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5D12S | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S15S | Input Voltage: 5 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5D15S | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-5S24S | Input Voltage: 5 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S05S | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12D05S | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S12S | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12D12S | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S15S | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12D15S | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-12S24S | Input Voltage: 12 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S05S | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24D05S | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S12S | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24D12S | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S15S | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24D15S | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S24S | Input Voltage: 24 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S05S | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48D05S | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S12S | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48D12S | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S15S | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48D15S | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S24S | Input Voltage: 48 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| DCSD02-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 4.5~9, 9~18 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 500mA, 400mA, 167mA, 134mA, ±200mA, ±83mA, ±67mA |
| Output Power (Watts): | 1.65, 2 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | Standard Models: 1600VDC min. Suffix "H" Models: 3000VDC min. |
| Environmental | |

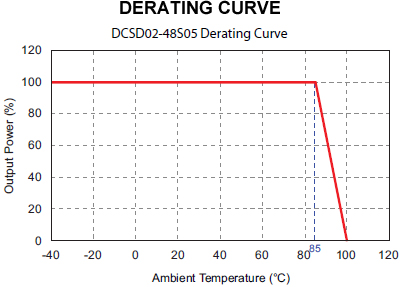

| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.1 oz |

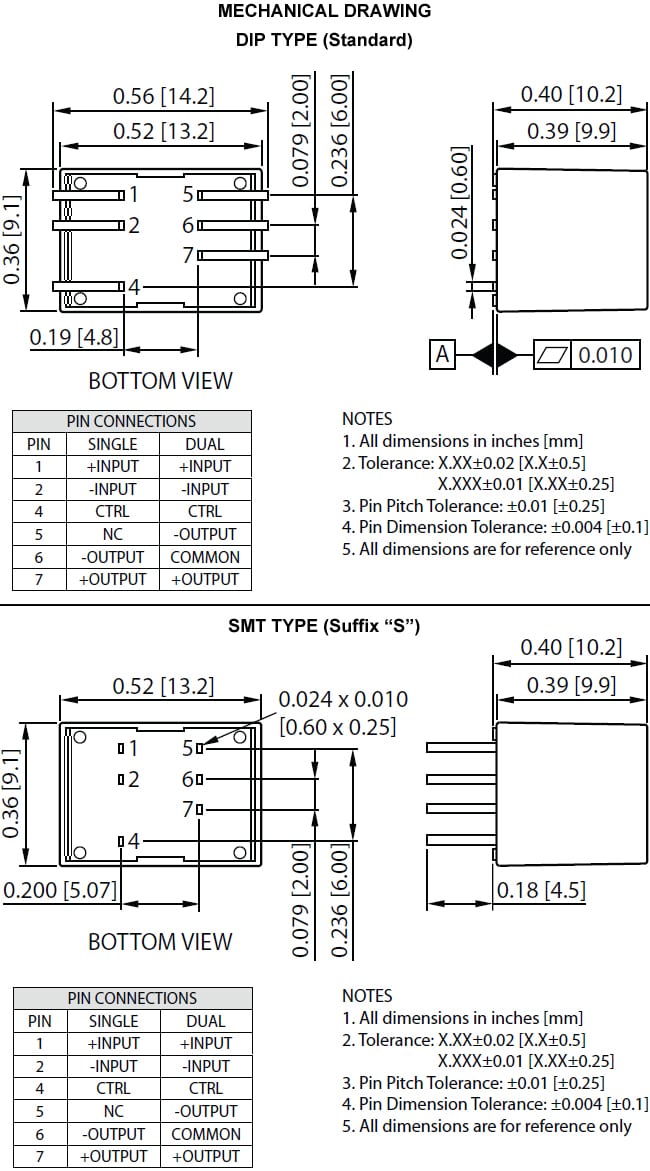

| Dimensions: | 0.52" x 0.36" x 0.39" |
| Case Material: | Non-conductive black plastic |
| Notes & safety | |
| Notes: | 1. Two package types are available. DIP is standard; for SMT type add the suffix “S” to the model number. See model number setup for ordering details. 2. 1600VDC I/O isolation is standard; for 3000VDC I/O isolation add the suffix “H” to the model number. See model number setup for ordering details. 3. The DCSD02 series can only meet EMI Class A or Class B and input reflected ripple current with external components added. Please contact factory for more information. 4. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor recommended is Nippon chemi-con KY series, 220µF/100V 5. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
