DCSD01

The DCSD01 series of DC/DC power converters provides 1 watt of output power in a 0.52 x 0.36 x 0.39 inch package. This series has single and dual output models with 2:1 wide input voltage ranges of 4.5-9VDC, 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency up to 83%, 1600VDC (standard) or 3000VDC (suffix “H”) I/O isolation, remote ON/OFF control, and short circuit protection. Both DIP (standard) and SMT (suffix “S”) package types are available for this series. All models are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. This series is best suited for use in industry control systems, wireless networks, telecom/datacom, measurement equipment, and semiconductor equipment.

• Ultra small SMT and DIP Packages • No Minimum Load Required • High Efficiency up to 83% • 2:1 Wide Input Voltage Ranges • 1 Watt Maximum Output Power • Continuous Short Circuit Protection • 1600VDC I/O Isolation (Optional 3000VDC Isolation) • CE Mark Meets 2006/95/EC, 2011/95/EC, & 2004/108/EC • Compliant to RoHS EU Directive 2011/65/EU • SMT Package Qualified for Lead-Free Reflow Solder Process According to IPC J-STD-020D • UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCSD01-5S33 Input Voltage: 5 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-5S33S Input Voltage: 5 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-5S05S Input Voltage: 5 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-5S05 Input Voltage: 5 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-5D05 Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-5D05S Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-5S12S Input Voltage: 5 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-5S12 Input Voltage: 5 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-5D12S Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-5D12 Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-5S15 Input Voltage: 5 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-5S15S Input Voltage: 5 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-5D15 Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-5D15S Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-5S24 Input Voltage: 5 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-5S24S Input Voltage: 5 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-12S33S Input Voltage: 12 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-12S33 Input Voltage: 12 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-12S05 Input Voltage: 12 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-12S05S Input Voltage: 12 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-12D05 Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-12D05S Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-12S12 Input Voltage: 12 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-12S12S Input Voltage: 12 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-12D12 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-12D12S Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-12S15 Input Voltage: 12 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-12S15S Input Voltage: 12 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-12D15 Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-12D15S Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-12S24 Input Voltage: 12 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-12S24S Input Voltage: 12 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-24S33S Input Voltage: 24 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-24S33 Input Voltage: 24 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-24S05S Input Voltage: 24 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-24D05 Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-24D05S Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-24S12S Input Voltage: 24 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-24D12 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-24D12S Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-24S15S Input Voltage: 24 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-24D15S Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-24D15 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-24S24S Input Voltage: 24 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-24S24 Input Voltage: 24 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-48S33S Input Voltage: 48 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-48S33 Input Voltage: 48 Output Voltage: 3.3 Output Current: 300mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-48S05 Input Voltage: 48 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-48S05S Input Voltage: 48 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-48D05 Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-48D05S Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-48S12S Input Voltage: 48 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-48S12 Input Voltage: 48 Output Voltage: 12 Output Current: 90mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-48D12S Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-48D12 Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±45mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-48S15 Input Voltage: 48 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-48S15S Input Voltage: 48 Output Voltage: 15 Output Current: 70mA Output Power (W): 1 No. Outputs: S Case: Surface Mount Get a Quote
DCSD01-48D15 Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCSD01-48D15S Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±35mA Output Power (W): 1 No. Outputs: D Case: Surface Mount Get a Quote
DCSD01-48S24S Input Voltage: 48 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCSD01-48S24 Input Voltage: 48 Output Voltage: 24 Output Current: 45mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 12, 24, 48
Input Voltage Range: 18~36, 36~75, 4.5~9, 9~18
Input Filter: Capacitor Type
Remote ON/OFF: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, ±5, ±12, ±15
Voltage Accuracy: ±1.0%
Output Current: 300mA, 200mA, 90mA, 70mA, 45mA, ±100mA, ±45mA, ±35mA
Output Power (Watts): 1
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: 83%
Isolation: Standard Models: 1600VDC min. Suffix "H" Models: 3000VDC min.
Environmental
Operating Temperature: -40 to 90°C
Storage Temperature: -55 to 125°C
Physical
Weight: 0.1 oz

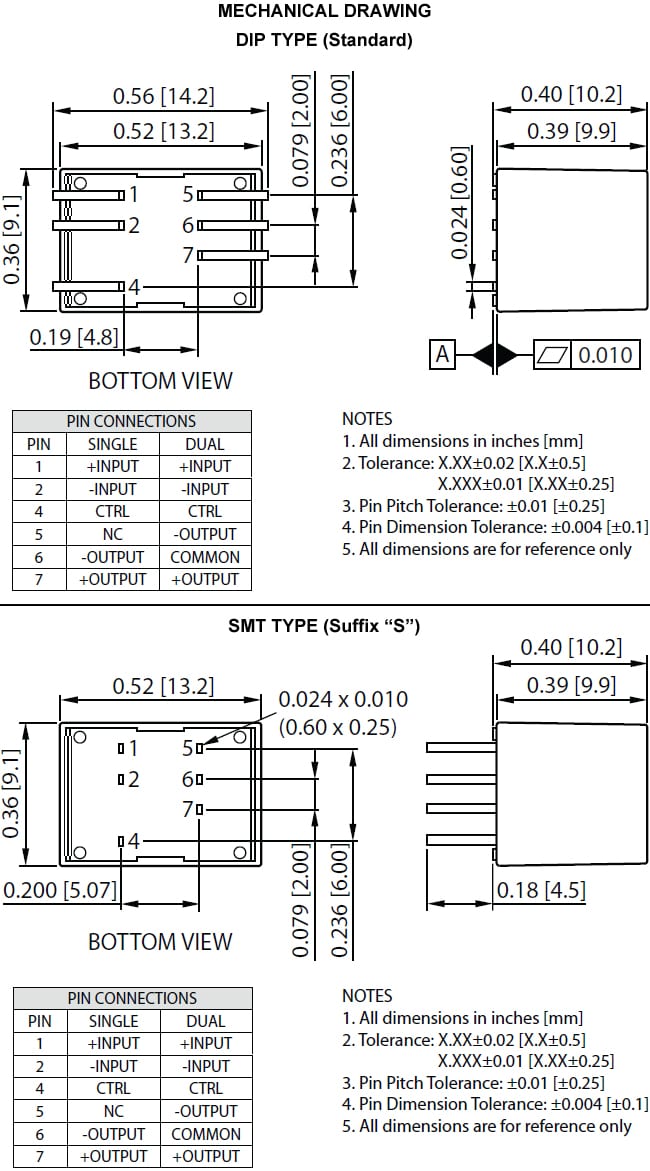

Dimensions: 0.52" x 0.36" x 0.39"
Case Material: Non-conductive black plastic
Notes & safety
Notes: 1. Two package types are available. DIP is standard; for SMT type add the suffix “S” to the model number. See model number setup for ordering details.
2. 1600VDC I/O isolation is standard; for 3000VDC I/O isolation add the suffix “H” to the model number. See model number setup for ordering details.
3. The DCSD01 series can only meet EMI Class A or Class B and input reflected ripple current with external components added. Please contact factory for more information.
4. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor recommended is Nippon chemi-con KY series, 220µF/100V
*Due to advances in technology, specifications are subject to change without notice.
CAUTION: This power module is not internally fused. An input line fuse must always be used.
Safety Approvals: UL60950-1, EN60950-1, IEC60950-1
RoHS Compliance: Yes
