DCQUW60

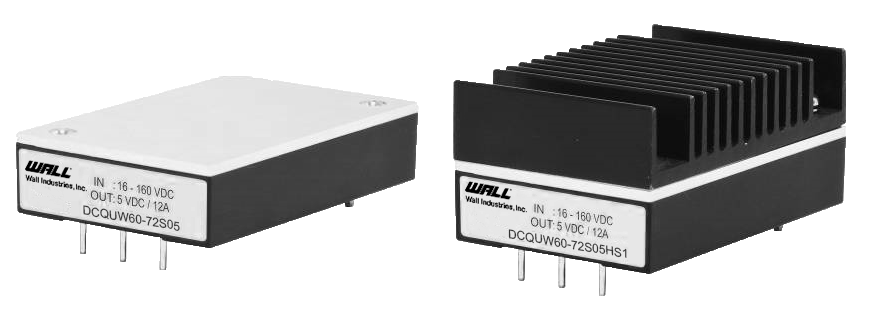

The DCQUW60 series of quarter-brick DC/DC converters offers up to 60 watts of output power in a compact 1.45” x 2.28” x 0.50” package with optional heatsink. This series consists of single output models with an ultra-wide 12:1 input voltage range. Each model in this series features low standby power, no minimum load requirement, remote on/off, and 2250VDC basic insulation. This series also has over voltage, over load, over temperature, and short circuit protection as well IEC/UL/EN60950-1 and IEC/UL/EN62368-1, pending safety approvals and EN50155 and EN45545-2 pending railway approvals. Please contact factory for ordering information.
• Ultra-Wide 12:1 Input Voltage Range
• 2250VDC Basic Insulation
• 3000VAC Reinforced Insulation
• No Minimum Load Requirement
• Low Standby Power
• Remote On/Off
• Optional Heatsink
• Over Voltage, Over Load, Over Temperature, and Short Circuit Protection
• IEC/UL/EN60950-1 and IEC/UL/EN62368-1 Safety Approvals (Pending)
• EN50155 & EN45545-2 Railway Approvals (Pending)
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCQUW60-36S05 | Input Voltage: 36 | Output Voltage: 5 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-36S12 | Input Voltage: 36 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-36S15 | Input Voltage: 36 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-36S24 | Input Voltage: 36 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-36S28 | Input Voltage: 36 | Output Voltage: 28 | Output Current: 2.15A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-36S48 | Input Voltage: 36 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-36S53 | Input Voltage: 36 | Output Voltage: 53 | Output Current: 1.14A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-72S05 | Input Voltage: 72 | Output Voltage: 5 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-72S12 | Input Voltage: 72 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-72S15 | Input Voltage: 72 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-72S24 | Input Voltage: 72 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-72S28 | Input Voltage: 72 | Output Voltage: 28 | Output Current: 2.15A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-72S48 | Input Voltage: 72 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| DCQUW60-72S53 | Input Voltage: 72 | Output Voltage: 53 | Output Current: 1.14A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 36, 72 |
| Input Voltage Range: | 9~75, 14~160 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Standard: Positive Logic & 0.150" Pin Length See Notes/Data Sheet for more options |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 28, 48, 53 |
| Voltage Accuracy: | ±1.0 |
| Output Current: | 1.14A, 1.25A, 2.15A, 2.5A, 4A, 5A, 12A |
| Output Power (Watts): | 60 |
| Output Trim/Adjustability: | -20 to +10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | % of Vout(nom); Hiccup Mode: 120-135% |
| Thermal Protection: | +110ºC |
| General | |
| Efficiency: | Up to 90% |
| Isolation: | 36Vin Nominal Input: 1 Minute (Basic Insulation): Input to Output: 2250VDC Input (Output to Base-Plate): 1600VDC 72Vin Nominal Input: 1 Minute (Reinforced Insulation): Input to Output: 3000VAC Input (Output) to Base-Plate: 1500VAC |
| Environmental | |
| Operating Temperature: | -40 to +105ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 2.26oz (64g) |
| Dimensions: | Standard Package: 1.45in x 2.28in x 0.50in (36.8mm x 57.9mm x 12.7mm) Heatsink Option 1 & 3: 1.45in x 2.28in x 0.75in (36.8mm x 57.9mm x 19.1mm) Heatsink Option 2 & 4: 1.45in x 2.28in x 1.01in (36.8mm x 57.9mm x 25.7mm) |
| Case Material: | Aluminum Base-Plate with Plastic Case |
| Notes & safety | |
| Notes: | 1. Several options available for this series that change product model number. -Add "S" Suffix for Positive Logic & 0.200" pin length -Add "N" Suffix for Negative Logic & 0.150" pin length -Add "L" Suffix for Negative Logic & 0.200" pin length -Add "HS" Suffix for 7G-0029B-F, H=0.24" -Add "HS1" Suffix for 7G-0030B-F, H=0.5" -Add "HS2" Suffix for 7G-0031B-F, H=0.24" -Add "HS3" Suffix for 7G-0032B-F, H=0.5" -Add "TH" Suffix for Through Hole with No Thread (Heatsink not available for this option) 2. Input source impedance: The power module will operate as specified without external components, assuming that the source voltage has a very low impedance and reasonable input voltage regulation. Highly inductive source impedances can affect the stability of the power module. Since real-world voltage source has finite impedance, performance can be improved by adding an external filter capacitor. -Recommended filter for 36Vin Nominal Input Models: Nippon Chemi-con KY series, 220µF/100V. -Recommended filter for 72Vin Nominal Input Models: Nippon Chemi-con KXJ series, 150µF/200V. 3. If remote sense is not being used, SENSE pins should be connected to corresponding polarity OUTPUT pins. 5. BASE-PLATE GROUNDING: when two screw bolts are connected to shield plane, EMI could be reduced 6. With 2pcs of aluminum electrolytic capacitor: -Recommended for 36Vin Nominal Input Models: Nippon Chemi-con KY series, 220µF/100V -Recommended for 72Vin Nominal Input Models: Nippon Chemi-con KXJ series, 150µF/200V 7. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | (PENDING) IEC/UL/EN60950-1, IEC/UL/EN62368-1, EN50155, EN45545-2 |
