DCPSD40

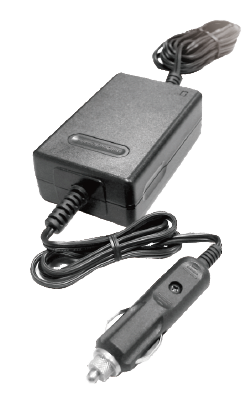

The DCPSD40 series of non-isolated DC/DC supplies offers up to 40 watts of output power in a 4.23in x 2.64in x 1.42in compact package. This series consists of single output models with an input voltage range of 11 to 15VDC and 11 to 26VDC. Each model has high efficiency and high reliability and optional input and output connectors are available. Please contact factory for further information.

• Single Output • Up to 40 Watts of Output Power • 11 to 26VDC Wide Input Range for 5~11VDC Models • 11 to 15VDC Input Voltage Range for 13~48VDC Models • Compact Package • Optional Input and Output Connectors • High Efficiency and Reliability • Weight 7.1~8.8oz (200~250g) • Dimensions: 4.23in x 2.64in x 1.42in
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DCPSD40-1 Input Voltage: 11~26 Output Voltage: 5~6 Output Current: 5.0A Output Power (W): 25 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
DCPSD40-1-1 Input Voltage: 11~26 Output Voltage: 6~8 Output Current: 5.0A Output Power (W): 30 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
DCPSD40-2 Input Voltage: 11~26 Output Voltage: 8~11 Output Current: 4.3A Output Power (W): 35 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
DCPSD40-4 Input Voltage: 11~15 Output Voltage: 13~16 Output Current: 2.9A Output Power (W): 38 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
DCPSD40-5 Input Voltage: 11~15 Output Voltage: 16~21 Output Current: 2.5A Output Power (W): 40 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
DCPSD40-6 Input Voltage: 11~15 Output Voltage: 21~27 Output Current: 1.6A Output Power (W): 40 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
DCPSD40-7 Input Voltage: 11~15 Output Voltage: 27~33 Output Current: 1.4A Output Power (W): 40 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
DCPSD40-8 Input Voltage: 11~15 Output Voltage: 33~48 Output Current: 1.2A Output Power (W): 40 No. Outputs: S Case: In Car DC/DC Size: 4.23" x 2.64" x 1.42" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12
Input Voltage Range: 11~26
Output
Output Voltage: 5~6, 6~8, 8~11, 13~16, 16~21, 21~27, 27~33, 33~48
Output Current: 1.2A, 1.4A, 1.6A, 2.5A, 2.9A, 4.3A, 5.0A
Output Power (Watts): 25, 30, 35, 38, 40
General
Environmental
Physical
Weight: 7.1~8.8oz (200~250g)
Dimensions: 4.23in x 2.64in x 1.42in (107.5mm x 67mm x 36mm)
Notes & safety
Notes: 1. Output voltage is specified as a range. The output voltage can be set at any voltage within its specified range. User must specify what they would like the voltage set at.
2. Optional input and output connectors available, please call factory for details.
*Due to advances in technology, specifications subject to change without notice.
