DCPSD12

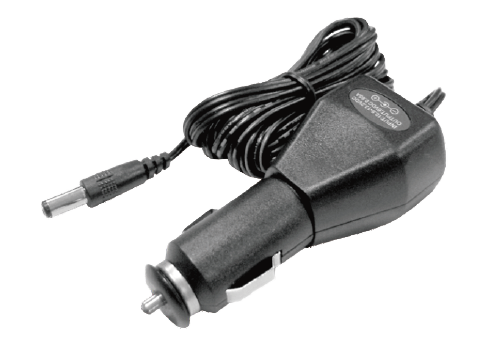

The DCPSD12 series of non-isolated DC/DC supplies offers up to 8 watts of output power in a 3.52in x 1.51in x 1.20in compact package. This series consists of single output models with an input voltage range of 11 to 15VDC. Each model has high efficiency and high reliability and optional input and output connectors are available. Please contact factory for further information.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCPSD12-1 | Input Voltage: 11~15 | Output Voltage: 5~6 | Output Current: 1.00A | Output Power (W): 5 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| DCPSD12-1-1 | Input Voltage: 11~15 | Output Voltage: 6~8 | Output Current: 1.00A | Output Power (W): 6 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| DCPSD12-2 | Input Voltage: 11~15 | Output Voltage: 8~10 | Output Current: 1.00A | Output Power (W): 8 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| DCPSD12-4 | Input Voltage: 11~15 | Output Voltage: 13~16 | Output Current: 0.61A | Output Power (W): 8 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| DCPSD12-5 | Input Voltage: 11~15 | Output Voltage: 16~21 | Output Current: 0.50A | Output Power (W): 8 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| DCPSD12-6 | Input Voltage: 11~15 | Output Voltage: 21~27 | Output Current: 0.38A | Output Power (W): 8 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| DCPSD12-7 | Input Voltage: 11~15 | Output Voltage: 27~33 | Output Current: 0.29A | Output Power (W): 8 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| DCPSD12-8 | Input Voltage: 11~15 | Output Voltage: 33~48 | Output Current: 0.24A | Output Power (W): 8 | No. Outputs: S | Case: In Car DC/DC | Size: 3.52" x 1.51" x 1.2" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 11~15 |
| Input Voltage Range: | 11~15 |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~10, 13~16, 16~21, 21~27, 27~33, 33~48 |
| Output Current: | 0.24A, 0.29A, 0.38A, 0.50A, 0.61A, 1.00A |
| Output Power (Watts): | 5, 6, 8 |
| General | |
| Environmental | |
| Physical | |
| Weight: | 2.5~3.5oz (70~100g) |
| Dimensions: | 3.52in x 1.51in x 1.20in (89.3mm x 38.4mm x 30.5mm) |
| Notes & safety | |
| Notes: | 1. Output voltage is specified as a range. The output voltage can be set at any voltage within its specified range. User must specify what they would like the voltage set at. 2. Optional input and output connectors available, please call factory for details. *Due to advances in technology, specifications subject to change without notice. |
