DCPDLW06
The DCPDLW06 series of DC/DC power converters provides 6 watts of output power in a 0.86 x 0.44 x 0.36 inch SIP package. This series has single and dual output models with 4:1 ultra wide input voltage ranges of 9-36VDC and 18-75VDC. Some features include high efficiency up to 87%, 1600VDC (standard) or 3000VDC (suffix “H”) I/O isolation, remote ON/OFF control, and continuous short circuit protection. Both plastic (standard) and metal (suffix “M”) case types are available for this series. All models are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. This series is best suited for use in industry control systems, wireless networks, measurement equipment, telecom/datacom, and semiconductor equipment.
• 0.86” x 0.44” x 0.36” SIP Package • High Efficiency up to 87% • Remote ON/OFF Control • 4:1 Ultra Wide Input Voltage Ranges • 6 Watts Maximum Output Power • Fixed Switching Frequency • 1600VDC I/O Isolation (Optional 3000VDC Isolation) • Continuous Short Circuit Protection • Plastic (Standard) & Metal (Suffix “M”) Case Types Available • CE Mark Meets 2006/95/EC, 93/68/EEC, & 2004/108/EC • UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals • Compliant to RoHS EU Directive 2011/65/EU
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCPDLW06-24S3.3 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1500mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48S3.3 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1500mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 666mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48S09 | Input Voltage: 48 | Output Voltage: 9 | Output Current: 666mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| DCPDLW06-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.86” x 0.44” x 0.36” | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18~75, 9~36 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 1500mA, 1200mA, 666mA, 500mA, 400mA, 250mA, ±600mA, ±250mA, ±200mA |
| Output Power (Watts): | 5, 6 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | Standard Models: 1600VDC min. Suffix "H" Models: 3000VDC min. |
| Environmental | |

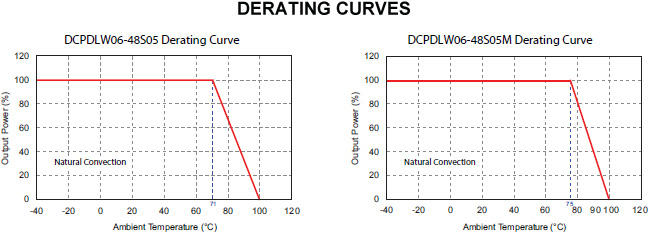

| Operating Temperature: | Standard Models: -40°C to +71°C (without derating) Suffix "M" Models: -40°C to +75°C (without derating) |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | Standard Models: 0.17oz (4.8g) Suffix "M" Models: 0.21oz (5.9g) |

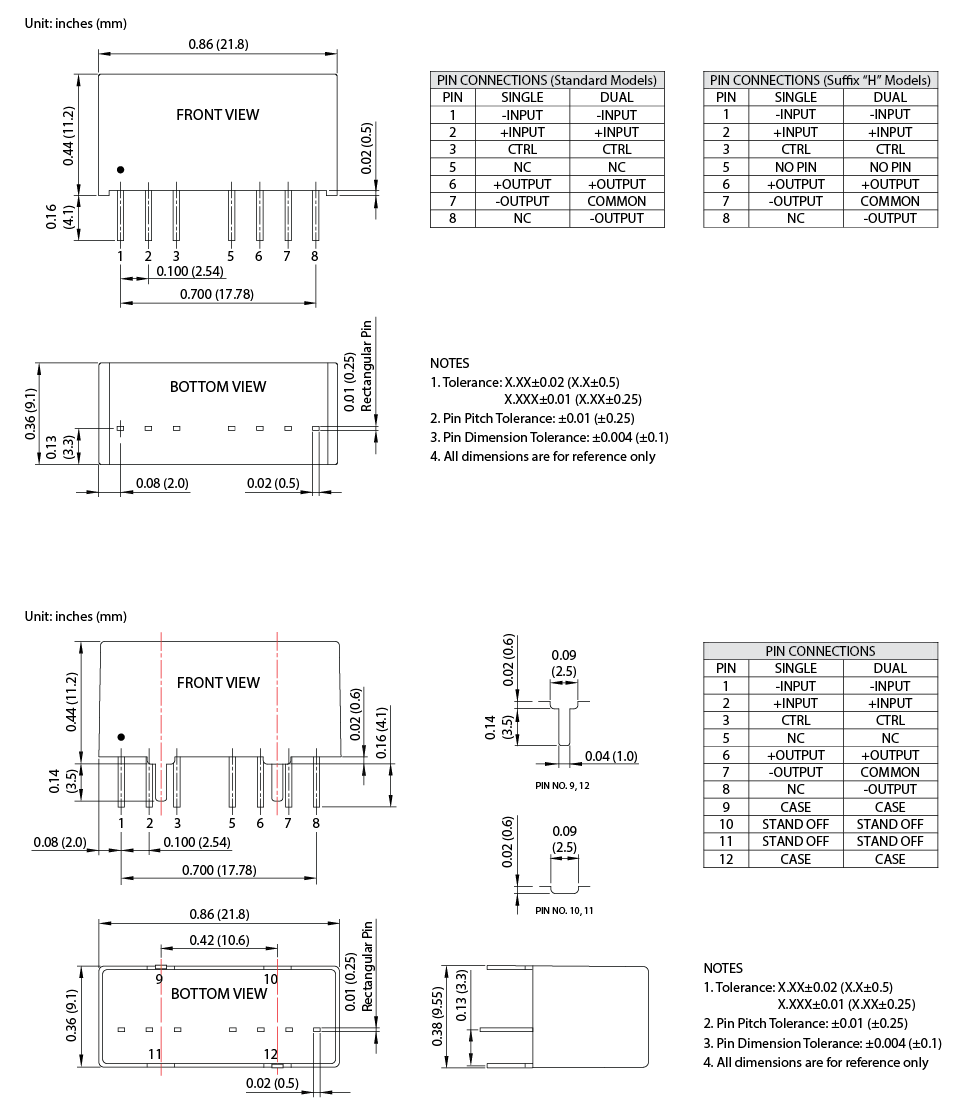

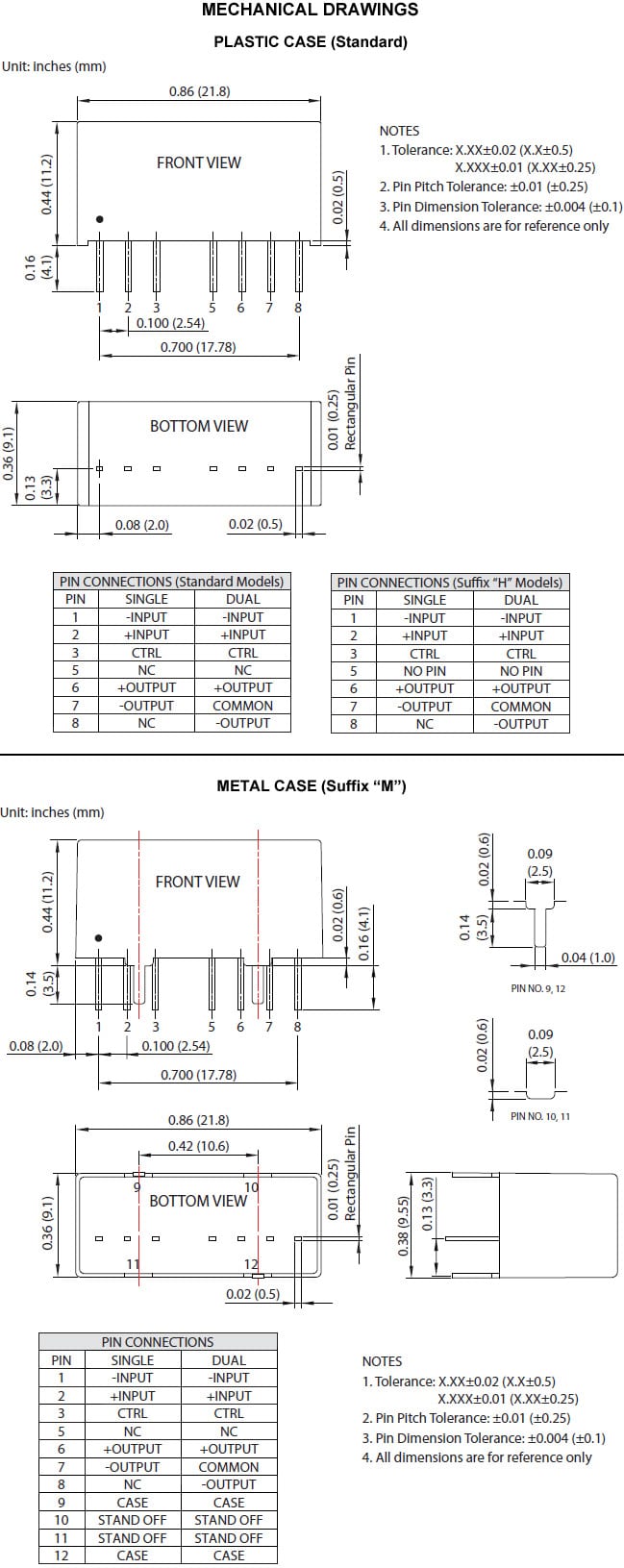

| Dimensions: | 0.86” x 0.44” x 0.36” |
| Case Material: | Standard Models: non-conductive black plastic Suffix "M" Models: copper |
| Notes & safety | |
| Notes: | 1. The DCPDLW06 series standard models can only meet EMI Class A and Class B with external components added. Please contact factory for more information. 2. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. We recommend connecting an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V) in parallel. 3. Two case types are available for this series. Plastic case is standard; for the metal case add the suffix “M” to the model number. See the model number setup on page 7 for ordering details. 4. 1600VDC I/O isolation is standard; for 3000VDC I/O isolation add the suffix “H” to the model number (Ex: DCPDLW06-24S12H). 3000VDC I/O isolation is only available for plastic case models. 5. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
