DCPDL09
The DCPDL09 series of DC DC converters offers up to 90 watts of output power in a compact and low profile package. This series consists of both single and dual output models with 2:1 wide input ranges. Models in this series have a high efficiency up to 89%, low standby power, and over load and short circuit protection. Models are also compliant to both RoHS and REACH and have UL60950-1, EN60950-1, IEC60905-1, UL62368-1, EN62368-1, & IEC62368-1 safety approvals.
• No Minimum Load Required
• 1600VDC Input to Output Insulation
• Compact Size and Low Profile
• Low Standby Power
• CE Marked
• 2:1 Wide Input Range
• RoHS and REACH Compliant
• High Efficiency up to 89%
• Single and Dual Output Voltages
• Over Load and Short Circuit Protection
• UL60950-1, EN60950-1, IEC60950-1, UL62368-1, EN62368-1, & IEC62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCPDL09-12S3P3S | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12S05S | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12S09S | Input Voltage: 12 | Output Voltage: 9 | Output Current: 1000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12S12S | Input Voltage: 12 | Output Voltage: 12 | Output Current: 750mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12S15S | Input Voltage: 12 | Output Voltage: 15 | Output Current: 600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12S24S | Input Voltage: 12 | Output Voltage: 24 | Output Current: 375mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24S3P3S | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24S05S | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24S09S | Input Voltage: 24 | Output Voltage: 9 | Output Current: 1000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24S12S | Input Voltage: 24 | Output Voltage: 12 | Output Current: 750mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24S15S | Input Voltage: 24 | Output Voltage: 15 | Output Current: 600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24S24S | Input Voltage: 24 | Output Voltage: 24 | Output Current: 375mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48S3P3S | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48S05S | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48S09S | Input Voltage: 48 | Output Voltage: 9 | Output Current: 1000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48S12S | Input Voltage: 48 | Output Voltage: 12 | Output Current: 750mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48S15S | Input Voltage: 48 | Output Voltage: 15 | Output Current: 600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48S24S | Input Voltage: 48 | Output Voltage: 24 | Output Current: 375mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12D05S | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12D12S | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±375mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12D15S | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±300mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24D05S | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24D12S | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±375mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-24D15S | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±300mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48D05S | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48D12S | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±375mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-48D15S | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±300mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.36" | Get a Quote |
| DCPDL09-12S3P3M | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12S05M | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12S09M | Input Voltage: 12 | Output Voltage: 9 | Output Current: 1000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12S12M | Input Voltage: 12 | Output Voltage: 12 | Output Current: 750mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12S15M | Input Voltage: 12 | Output Voltage: 15 | Output Current: 600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12S24M | Input Voltage: 12 | Output Voltage: 24 | Output Current: 375mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24S3P3M | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24S05M | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24S09M | Input Voltage: 24 | Output Voltage: 9 | Output Current: 1000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24S12M | Input Voltage: 24 | Output Voltage: 12 | Output Current: 750mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24S15M | Input Voltage: 24 | Output Voltage: 15 | Output Current: 600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24S24M | Input Voltage: 24 | Output Voltage: 24 | Output Current: 375mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48S3P3M | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48S05M | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48S09M | Input Voltage: 48 | Output Voltage: 9 | Output Current: 1000mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48S12M | Input Voltage: 48 | Output Voltage: 12 | Output Current: 750mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48S15M | Input Voltage: 48 | Output Voltage: 15 | Output Current: 600mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48S24M | Input Voltage: 48 | Output Voltage: 24 | Output Current: 375mA | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12D05M | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12D12M | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±375mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-12D15M | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±300mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24D05M | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24D12M | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±375mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-24D15M | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±300mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48D05M | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48D12M | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±375mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| DCPDL09-48D15M | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±300mA | Output Power (W): 9 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.44" x 0.38" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 9~18 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2000mA, 1600mA, 1000mA, 750mA, 600mA, 375mA, ±800mA, ±375mA, ±300mA |
| Output Power (Watts): | 9 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | 3.3V Standard Models: -40 to +100°C 3.3V Standard Models Derating: +45 to +100°C 3.3V Metal Case Models: -40 to +100°C 3.3V Metal Case Models Derating: +50 to +100°C All Other Output Standard Models: -40 to +100°C All Other Output Standards Models Derating: +55 to +100°C All Other Output Metal Case Models: -40 to +100°C All Other Output Metal Case Models Derating: +60 to +100°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | Standard Case: 0.17oz (4.8g) Metal Case: 0.21oz (5.9g) |

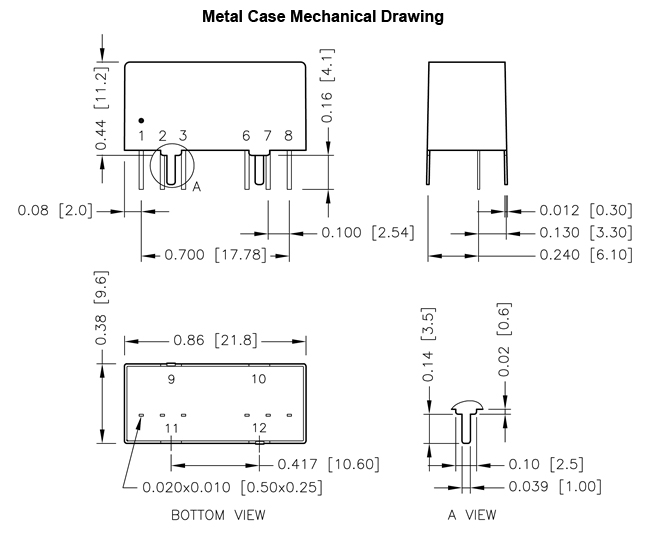

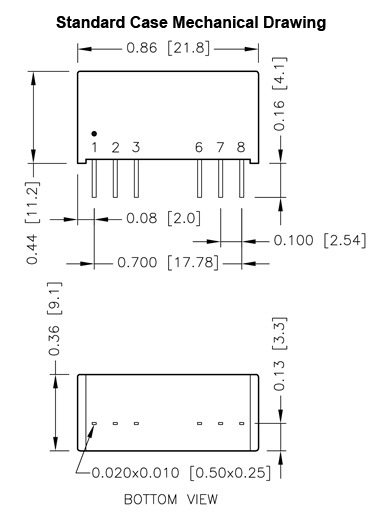

| Dimensions: | Standard Case: 0.86" x 0.44" x 0.36" Metal Case: 0.86" x 0.44" x 0.38" |
| Case Material: | Standard Case: Non-Conductive Black Plastic Metal Case: Copper |
| Notes & safety | |
| Notes: | (1) “x” in model name indicates the case type. “x” can be “S” to indicate standard (plastic) case or “M” to indicate metal case. (2) The standard modules either EMI Class A or Class B with external components. For further information, please contact factory. (3) An external input filter capacitor is required if the module is to meet EN61000-4-4 and EN61000-4-5. We suggest the following: DCPDL09-12xxx & DCPDL09-24xxx recommend to use an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V) and a TVS (SMDJ70A, 70V, 3000Watt peak pulse power) to connect in parallel. DCPDL09-48xxx recommended to use an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V) and a TVS (SMDJ120A, 120V, 3000Watt peak pulse power) to connect in parallel. (4) This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1, UL62368-1, EN62368-1, IEC62368-1 |
| RoHS Compliance: | Yes |
