DCMSW1

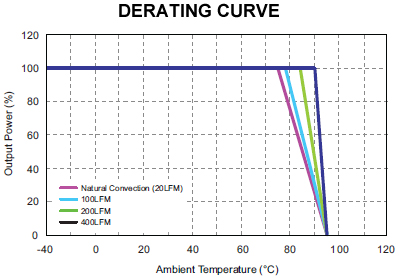

The DCMSW1 series of DC/DC converters provides 1 Watt of output power in an ultra compact SMT package. These converters operate over 2:1 input voltage ranges of 4.5-9VDC, 9-18VDC, 18-36VDC, and 36-75VDC. This series also has fully regulated single and dual output voltages of 5V, 12V, 15V, ±12V, and ±15V. The DCMSW1 series’ impressive efficiencies enable these modules to deliver their fully rated output power from –40°C to +75°C without derating. Other features include remote on/off control, low ripple and noise, 1500VDC I/O isolation, and continuous short circuit protection. The very small footprint of these converters makes them an ideal solution for space critical applications in communication equipment, instrumentation, and many other battery operated applications.
• 1 Watt Output Power
• 1500VDC I/O Isolation
• Low Ripple & Noise
• Remote ON/OFF Control
• Fully Regulated Single & Dual Outputs
• MTBF > 2,800,000 Hours
• 2:1 Wide Input Voltage Range
• -40°C to +85°C Operating Temperature
• Continuous Short Circuit Protection
• Ultra Compact SMT Package
• Qualified for Lead-free Reflow Process
• CSA/UL/IEC/EN 60950-1 Safety Approvals (Pending)
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMSW1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-05S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-05S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-12S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-12S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-24S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-24S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-24S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-48S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-48S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-48S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| DCMSW1-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.54" x 0.33" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 4.5~9, 9~18 |
| Input Filter: | Capacitor |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, ±12, ±15 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 200mA, 83mA, 67mA, ±42mA, ±33mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 1500VDC min. (input to output) |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -50 to 125°C |

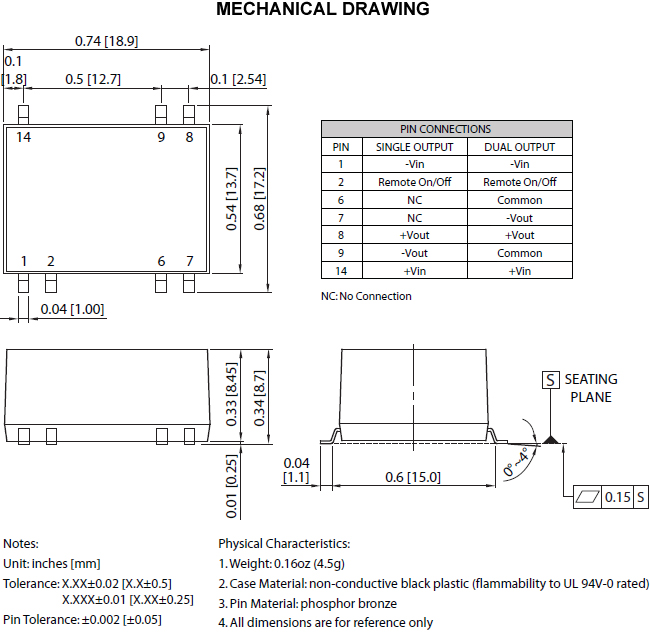

| Physical | |
| Weight: | 0.16 oz |
| Dimensions: | 0.74 x 0.54 x 0.33 |
| Case Material: | Non-conductive black plastic |
| Notes & safety | |
| Notes: | 1. All DC/DC converters should be externally fused at the front end for protection. 2. Other input and output voltages may be available, please contact factory. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | CSA 60950-1 recognition, IEC/EN 60950-1 (CB-scheme) pending |
| RoHS Compliance: | Yes |
