DCMSPU01H
The DCMSPU01H series of DC DC converters offers 1 watt of output power in a compact 0.64” x 0.37” x 0.34” industrial SMD package. This series consists of both single and dual output models and 3.3VDC, 5VDC, or 12VDC input options. Other options are available for this series such as a water-washable process and a tape and reel package. Each model in this series has I/O isolation of 3000VDC, high efficiency, and over load and short circuit protection. This series qualifies for lead-free reflow solder process according to IPC/JEDEC J-STD-020D.1 and has UL/cUL 60950-1, IEC/EN 60950-1, UL/cUL 62368-1, and IEC/EN 62368-1 safety approvals. Please call factory for order details.
• Industrial SMD Package
• I/O Isolation 3000VDC
• Water-Washable Process Available
• Tape & Reel Package Available
• High Efficiency
• Qualifies for Lead-Free Reflow Solder Process According to IPC/JEDEC J-STD-020D.1
• Over Load and Short Circuit Protection
• UL/cUL 60950-1, IEC/EN 60950-1, UL/cUL 62368-1, and IEC/EN 62368-1 Pending Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMSPU01-033S033H | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-033S05H | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-033S12H | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-033S15H | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-05S033H | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-05S05H | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-05S12H | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-05S15H | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-12S033H | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-12S05H | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-12S12H | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-12S15H | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-033D05H | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-033D12H | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-033D15H | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-05D05H | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-05D12H | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-05D15H | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-12D05H | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-12D12H | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| DCMSPU01-12D15H | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.67" x 0.37" x 0.34" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 12 |
| Input Voltage Range: | 2.97~3.63, 4.5~5.5, 10.8~13.2 |
| Input Filter: | Internal Capacitor Type |
| Output | |
| Output Voltage: | -15, -12, -5, 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±3.0% Max. |
| Output Current: | -100mA, -42mA, -33mA, 33mA, 42mA, 67mA, 84mA, 100mA, 200mA, 300mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 3000VDC |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | 50 to +125ºC |
| Physical | |
| Weight: | 0.067 (1.9g) |

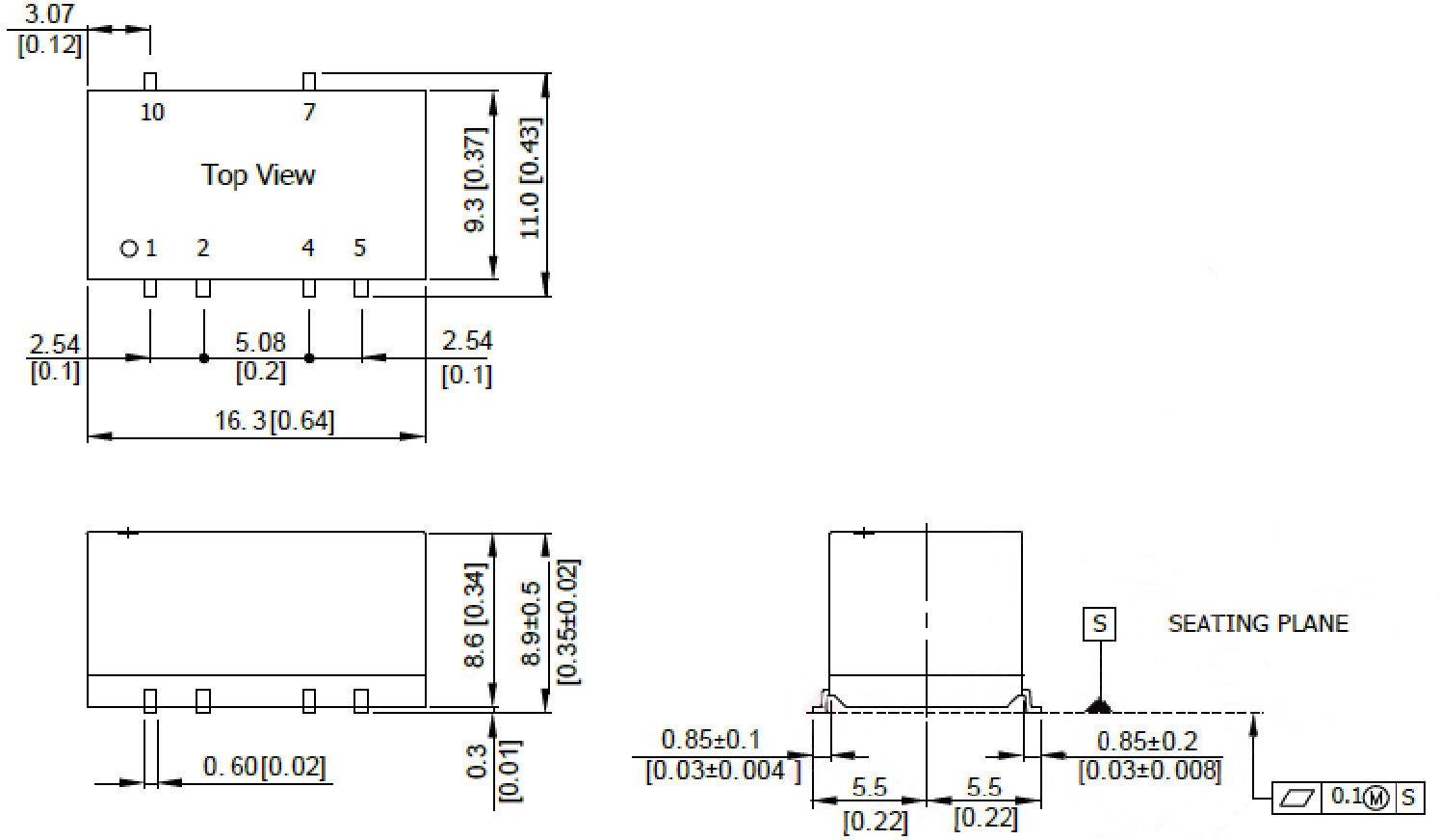

| Dimensions: | 0.67in x 0.37in x 0.34in (16.3mm x 9.3mm x 8.6mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will not damage these modules; however they may not meet all specifications listed. 2. We recommend protecting the converter by a fast blow fuse in the input supply line. 3. Other inputs and output voltages may be available, please contact factory. 4. To meet EN55022 Class A, an external filter is necessary. Please contact factory. 5. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor: 1800µF/50V KY Al-E Cap. 6. Natural convection is about 20LFM but is not equal to still air (0 LFM).] 7. For Water-Washable process, add “W” to end of model number. 8. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (UL certificate), IEC/EN 60950-1 (CB-report), UL/cUL 62368-1 recognition (UL certificate), IEC/EN 62368-1 (CB-report) |
| RoHS Compliance: | Yes |
