DCMPP06
The DCMPP06 series of medical DC/DC power converters provides 6 Watts of output power in a 1.25” x 0.80” x 0.40” DIP package. This series consists of single and dual output models with 2:1 wide input voltage ranges of 4.5-9VDC, 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency up to 89%, 5000VAC I/O (2 MOPP) isolation, and low stand-by power consumption. These converters are also protected against under voltage, short circuit, over voltage, and over load conditions. All models are RoHS compliant and have ANSI/AAMI ES60601-1, EN60601-1, and IEC60601-1 safety approvals. Remote ON/OFF and Trim functions are also available for this series. 4:1 input voltage models are also available (See theDCMPPW06 series).
• 2µA Patient Leakage Current
• Single & Dual Outputs
• Under Voltage Protection
• High Efficiency up to 89%
• 2:1 Wide Input Voltage Ranges
• Built-in EMI Class A Filter
• Low Stand-by Power Consumption
• 6 Watts Output Power
• Reinforced Insulation for 250VAC Working Voltage
• Clearance and Creepage Distance: 8.0mm/2MOPP
• 5000VAC Input to Output 2MOPP Isolation
• Short Circuit, Over Voltage, and Over Load Protection
• CE Marked
• Compliant to RoHS II & REACH
• ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1 3rd Edition, UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals
• Optional Remote ON/OFF Control and Trim Pin
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMPP06-5S33A | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S33B | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S05B | Input Voltage: 5 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S05A | Input Voltage: 5 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5D05A | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5D05B | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S12B | Input Voltage: 5 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S12A | Input Voltage: 5 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5D12A | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5D12B | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S15A | Input Voltage: 5 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S15B | Input Voltage: 5 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5D15A | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5D15B | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S24A | Input Voltage: 5 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-5S24B | Input Voltage: 5 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S33B | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S33A | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S05A | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S05B | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12D05A | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12D05B | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S12A | Input Voltage: 12 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S12B | Input Voltage: 12 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12D12A | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12D12B | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S15A | Input Voltage: 12 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S15B | Input Voltage: 12 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12D15A | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12D15B | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S24A | Input Voltage: 12 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-12S24B | Input Voltage: 12 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S33B | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S33A | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S05B | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S05A | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24D05A | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24D05B | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S12B | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S12A | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24D12A | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24D12B | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S15B | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S15A | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24D15B | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24D15A | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S24B | Input Voltage: 24 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-24S24A | Input Voltage: 24 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S33B | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S33A | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1.8A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S05A | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S05B | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48D05A | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48D05B | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S12B | Input Voltage: 48 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S12A | Input Voltage: 48 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48D12B | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48D12A | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S15A | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S15B | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48D15A | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48D15B | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S24B | Input Voltage: 48 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| DCMPP06-48S24A | Input Voltage: 48 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 4.5~9, 9~18 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Optional |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1.8A, 1.2A, 500mA, 400mA, 250mA, ±600mA, ±250mA, ±200mA |
| Output Power (Watts): | 6 |
| Output Trim/Adjustability: | Optional for "B" type |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | Input to Output: 5000VAC (2MOPP) |
| Environmental | |

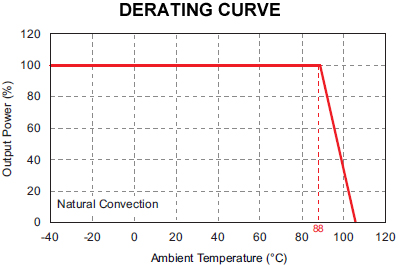

| Operating Temperature: | -40 to 105°C (with derating) |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.48 oz |

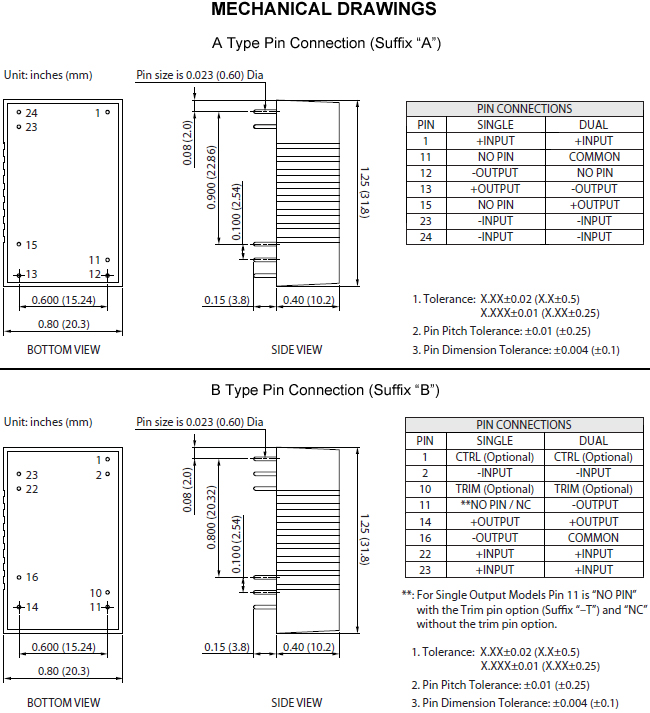

| Dimensions: | 1.25" x 0.80" x 0.40" |
| Case Material: | Non-conductive black plastic |
| Notes & safety | |
| Notes: | 1. The “x” in the model number represents the Pin Connection type. It can be “A” for pin connection type A or “B” for pin connection type B. See mechanical drawings on page 4 for more information. 2. The DCMPP06 series meets EMI Class A without an external filter added. This series can only meet EMI Class B with external components added. Please contact factory for more information. 3. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. • For 5VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 1000µF/25V) and a reverse diode (Vishay V10P45) in parallel. • For 12VDC & 24VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 470µF/50V) in parallel. • For 48VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 330µF/100V) in parallel. 4. Remote ON/OFF control is optional and is only available for “B” type pin connection models. To order the converter with remote ON/OFF add the suffix “-P” to the model number (Ex: DCMPP06-48S12B-P). 5. Trim function is optional and is only available for “B” type pin connection models. To order the converter with Trim pin add the suffix “-T” to the model number (Ex: DCMPP06-48S12B-T). 6. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1 3rd Edition, UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
