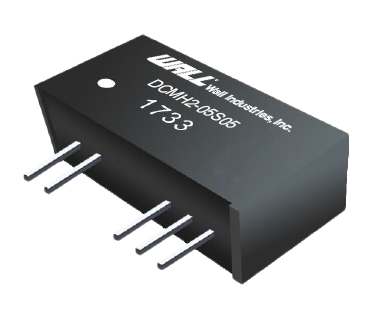

DCMH2
The DCMH2 series of medical high isolation DC/DC converters offers 2 watts of output power in a very compact 7 pin SIP package. This series consists of unregulated single and dual output models with a wide input voltage range. Features of this series include reinforced insulation, internal SMD construction, high efficiency, and short circuit protection. This series design refers to EN60601-1, ANSI/AAMI ES60601-1 and is RoHS compliant.
• Wide Input Voltage Range
• 7PIN SIP Package
• Reinforced Insulation
• Unregulated Outputs
• Internal SMD Construction
• Short Circuit Protection
• High Efficiency
• Industry Standard Pin Out
• Design Refers to EN60601-1, ANSI/AAMI ES60601-1
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMH2-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-05D05 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-05D09 | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-12D09 | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-24D09 | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCMH2-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24 |
| Input Voltage Range: | 4.5~5.5, 10.8~13.2, 21.6~26.4 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 5, 12, 15, ±5, ±9, ±12, ±15 |
| Voltage Accuracy: | ±5 |
| Output Current: | ±67mA, ±84mA, 111mA, ±200mA, 133mA, 167mA, 400mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Yes |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | ≤4200VAC 6000VDC |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.14oz (4.0g) |

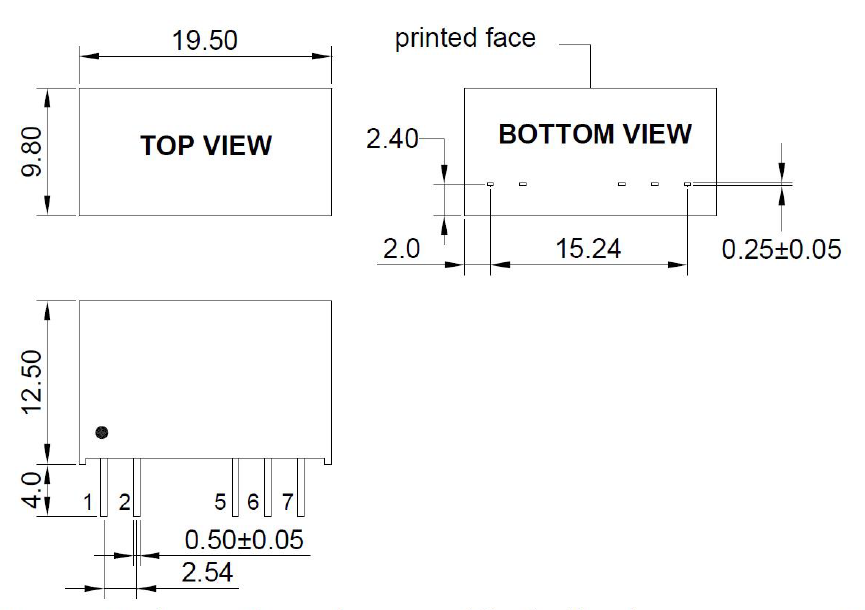

| Dimensions: | 0.77in x 0.39in x 0.49in (19.5mm x 9.80mm x 12.50mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | 1. Capacitive loads of positive and negative outputs are identical. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN60601-1, ANSI/AAMI ES60601-1 |
| RoHS Compliance: | Yes |
