DCMFW02
The DCMFW02 series of DC/DC converters offers up to 2 watts of output power in an ultra-compact 0.55” x 0.55” x 0.31” DIP-8 package. This series consists of both single and dual, fully-regulated output models and a wide 2:1 input voltage range. Each model in this series has over load and short circuit protection, is RoHS & REACH compliant, and requires no minimum load. This series has UL/cUL/IEC/EN 60905-1 safety approval & CE marking. Please contact factory for order details.
• Wide 2:1 Input Voltage Range
• Ultra-Compact DIP-8 Package
• Full Regulated Output Voltage
• RoHS & REACH Compliant
• No Minimum Load Requirement
• Over Load and Short Circuit Protection
• UL/cUL/IEC/EN 60950-1 Safety Approval & CE Marking
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMFW02-05S033 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-12S033 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-12S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-24S033 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-48S033 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-05D05 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-12D15 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: | Get a Quote |
| DCMFW02-24D12 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: | Get a Quote |
| DCMFW02-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| DCMFW02-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.55" x 0.55" x 0.31" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 4.5~10, 9~18, 18~36, 36~75 |
| Input Filter: | Internal Capacitor |
| Output | |
| Output Voltage: | -15, -12, -5, 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±1.5 |
| Output Current: | -200mA, -83mA, -67mA, 67mA, 83mA, 134mA, 167mA, 200mA, 400mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | 87% |
| Isolation: | 60 Seconds: 1500VDC 1 Second: 1800VDC |
| Environmental | |
| Operating Temperature: | -40 to 80ºC |
| Storage Temperature: | -50 to +125ºC |
| Physical | |
| Weight: | 0.14oz (3.9g) |

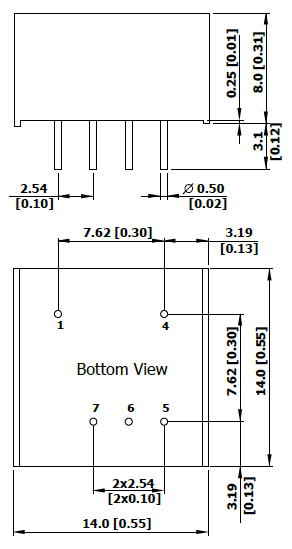

| Dimensions: | 0.55in x 0.55in x 0.31in (14mm x 14mm x 8mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. It is recommended to protect the converter by a slow blow fuse in the input supply line. 2. Other inputs and outputs may be available, please contact factory. 3. To meet EN61000-4-4 & EN61000-4-5 and external capacitor across the input pins is required. Suggested capacitor: 220µF/100V. 4. To meet EN55022 Class A, B an external filter is necessary. Please contact factory. 5. Natural Convection is about 20LFM but is not equal to still air (0 LFM). 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 Recognition (UL Certificate), IEC/EN 60950-1 (CB-Report) |
| RoHS Compliance: | Yes |
