DCMAW1
The DCMAW1 series of DC/DC power converters consists of fully regulated single and dual output models with 2:1 wide input voltage ranges of 4.5-9 VDC, 9-18 VDC, 18-36 VDC, and 36-75 VDC. These converters provide 1 Watt of output power in a very small SIP-6 package occupying only 0.2 square inches on the PCB. A high efficiency allows these converters to operate at a wide operating temperature range of -40°C to +85°C without derating. Further features include low ripple & noise, 1500VDC I/O isolation, and short circuit protection. These converters are RoHS compliant and have CSA/UL/IEC/EN 60950-1 safety approvals. These converters’ very compact dimensions make them an ideal solution for many space critical applications in battery powered instrumentations.
• RoHS Compliant
• 1 Watt Output Power
• Fully Regulated Single & Dual Outputs
• 1500VDC I/O Isolation
• High Efficiency up to 80%
• Low Ripple & Noise
• Compact SIP-6 Package
• 2:1 Wide Input Voltage Ranges

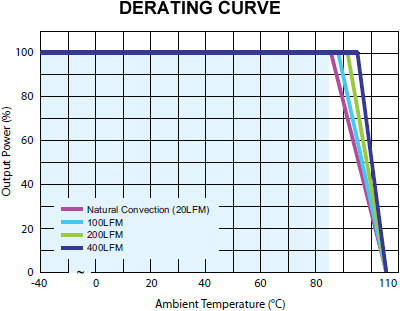

• -40°C to +85°C Operating Temperature Range
• Continuous Short Circuit Protection
• CSA/UL/IEC/EN 60950-1 Safety Approvals (Pending)
• Input Filter Complies to EN55022, Class A & FCC, Level A
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMAW1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| DCMAW1-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.67" x 0.3" x 0.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 4.5~9, 9~18 |
| Input Filter: | Capacitor |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, -12, 15, -15, 24 |
| Voltage Accuracy: | ±1% |
| Output Current: | 200mA, 83mA, 67mA, 42mA, ±42mA, ±33mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 80% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |

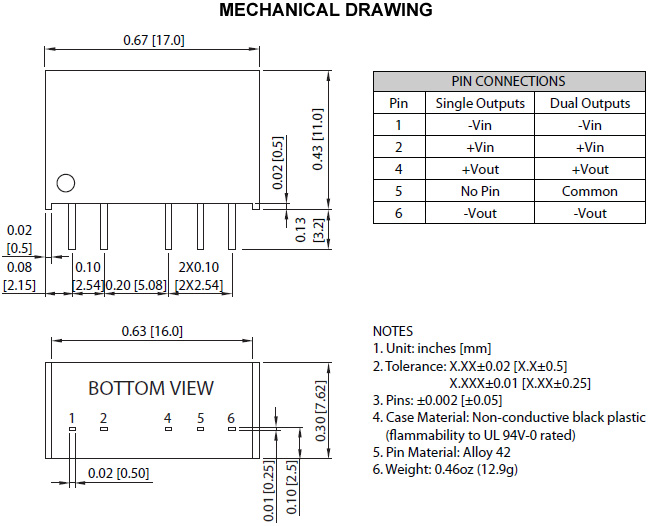

| Physical | |
| Weight: | 0.46 oz |
| Dimensions: | 0.67 x 0.30 x 0.43 |
| Case Material: | Non-conductive black plastic |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CSA/UL/IEC/EN 60950-1 |
| RoHS Compliance: | Yes |
