DCLSR01
The DCLSR01 series of DC DC converters offers up to 15 watts of output power in a compact 0.60″ x 0.37″ x 0.29″ package. This series consists of single output models with wide input ranges of of 3.0~5.5VDC & 4.6~36VDC. This series offers high efficiency up to 96% and short circuit, over load, and over temperature protection. The DCLSR01 series also offers UL60950-1, EN60950-1, and IEC60950-1 safety approvals.
• No Minimum Load Required
• Non-Isolation
• Low Standby Power
• Up to 15 Watts of Output Power
• High Efficiency Up to 96%
• 3.0~5.5VDC & 4.6~36VDC Wide Input Range
• Short Circuit, Over Load, and Over Temperature Protection
• UL60950-1, EN60950-1, IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCLSR01-05S1P2 | Input Voltage: 5 | Output Voltage: 1.2 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-05S1P5 | Input Voltage: 5 | Output Voltage: 1.5 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-05S1P8 | Input Voltage: 5 | Output Voltage: 1.8 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-05S2P5 | Input Voltage: 5 | Output Voltage: 2.5 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-12S1P2 | Input Voltage: 12 | Output Voltage: 1.2 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-12S1P5 | Input Voltage: 12 | Output Voltage: 1.5 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-12S1P8 | Input Voltage: 12 | Output Voltage: 1.8 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-12S2P5 | Input Voltage: 12 | Output Voltage: 2.5 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-12S3P3 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-12S6P5 | Input Voltage: 12 | Output Voltage: 6.5 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| DCLSR01-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.37" x 0.29" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24 |
| Input Voltage Range: | 12-36, 15-36, 18-36, 3.0-5.5, 3.8-5.5, 4.6-36, 4.75-36, 6.5-36, 9.0-36 |
| Input Filter: | Capacitor |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 1.2, 1.5, 1.8, 2.5, 5, 6.5, 9, 12, 15 |
| Voltage Accuracy: | ±2% |
| Output Current: | 1A |
| Output Power (Watts): | 15 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 96% |
| Isolation: | See Table |
| Environmental | |
| Operating Temperature: | -40 - +100°C |
| Storage Temperature: | -55 - +125°C |
| Physical | |
| Weight: | 0.06 oz |

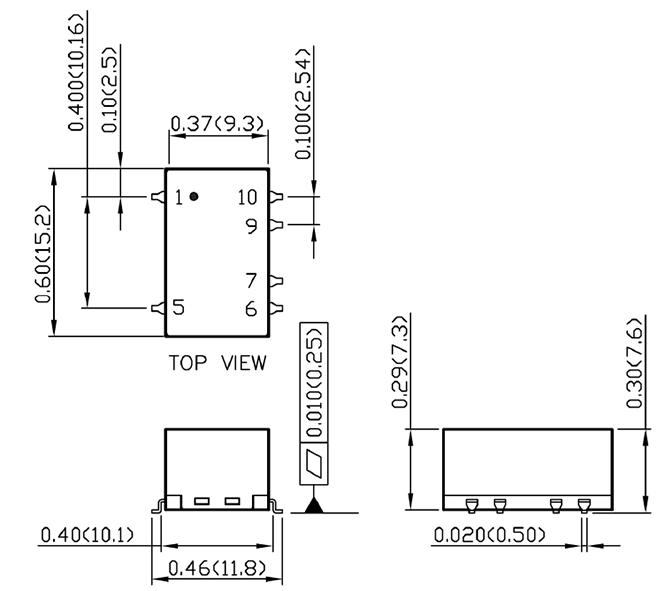

| Dimensions: | 0.6in x 0.37in x 0.29in |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. With a C1 (22uF/50V) input capacitor for input voltage > 32VDC, the input allows 36VDC, max. 2. This product is Listed to applicable standards and requirements by UL. CAUTION: The power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
