DCHPW1500

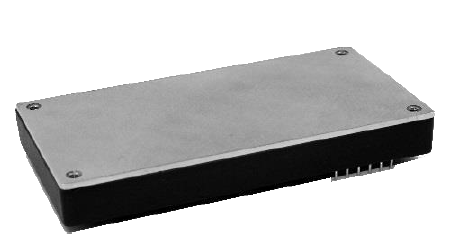

The DCHPW1500 series of DC/DC converters offers up to 1500 watts of output power in a 4.60” x 3.2” x 0.55” full brick package. This series consists of single output models with a wide input range as well as high reliability, efficiency and power density. This series also has protection against over current, over voltage, over temperature, short circuit, and input under and over voltage conditions. The DCHPW1500 series is RoHS5 and UL/IEC/EN60950/GB4943 compliant.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHPW1500-450S28 | Input Voltage: 450 | Output Voltage: 28 | Output Current: 54A | Output Power (W): 1500 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 3.2" x 0.55" | Get a Quote |
| DCHPW1500-450S48 (Preliminary) | Input Voltage: 450 | Output Voltage: 48 | Output Current: 31A | Output Power (W): 1500 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 3.2" x 0.55" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 450 |
| Input Voltage Range: | 200~750 |
| Remote ON/OFF: | Yes |
| OVLO: | Turn-On: 770VDC Typ. Turn-Off: 760VDC Typ. Hysteresis: 10VDC |
| UVLO: | Turn-On: 180VDC Typ. Turn-Off: 190VDC Typ. Hysteresis: 10VDC |
| Output | |
| Output Voltage: | 28, 48 |
| Voltage Accuracy: | ±1% |
| Output Current: | 31A, 54A |
| Output Power (Watts): | 1500 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | DCHPW1500-450S48: 33-37VDC DCHPW1500-450S28: 59-65VDC |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 95% |
| Environmental | |
| Operating Temperature: | -40 to +90ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | DCHPW1500-450S28: 9.52oz (270g) DCHPW1500-450S48: Approx. 13.76oz (390g) |

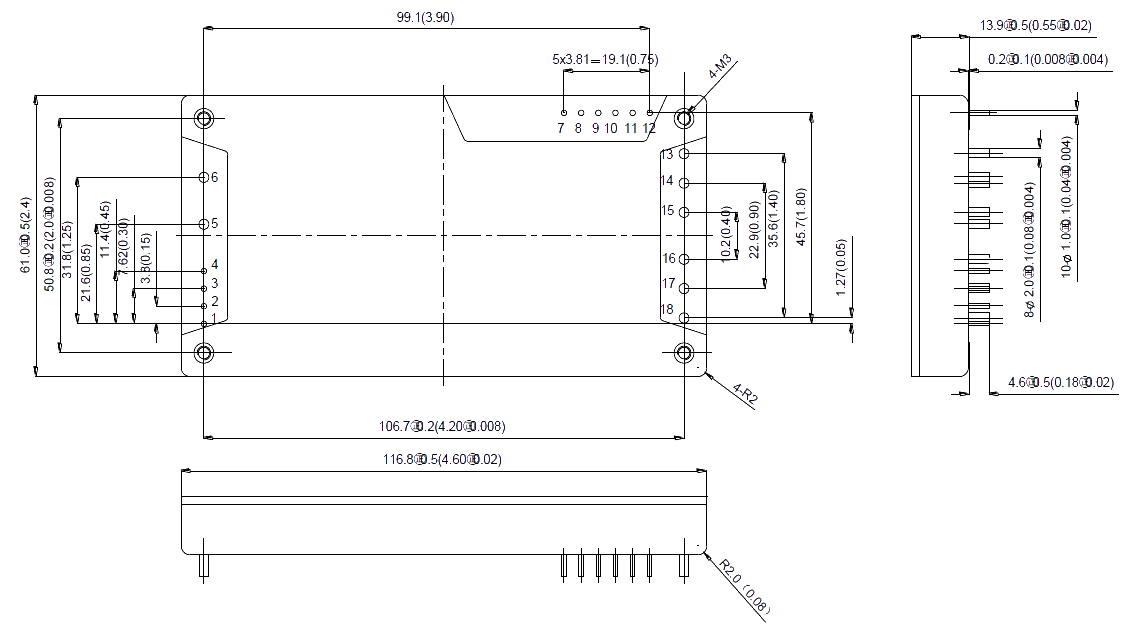

| Dimensions: | 4.60in x 3.2in x 0.55in (116.8mm x 82mm x 18mm) |
| Notes & safety | |
| Notes: | 1. Power at input and then use ON/OFF pin to turn on the module. Measure output voltage rising time 10%Vo_set ¬to 90%V¬o_set. 2. Power at input and then use ON/OFF pin to turn on the module. Measure output voltage rising time 10%Vo_set. 3. Note: Peak voltage judging method: -Based on captioned configurations and test according to the Standard/Class requirements, if no problem found, test result is considered PASS. -Based on captioned configurations and test according to the Standard/Class requirements, if no output from the modules because the over voltage protection of the under voltage lockout is triggered or the module failed due to component damaged, the test result is considered FAIL. -Based on captioned configurations and test according to the Standard/Class requirements, if there is temporary output voltage fluctuation but not exceeding the voltage regulation limit, output resumes normally after stop testing and no component damage, the test result is considered PASS. -Based on captioned configurations and test according to the Standard/Class requirements. If there is temporary output voltage fluctuations with spikes or valleys exceeding the voltage regulation limit, the test result cannot be determined. It will require further product evaluations. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/IEC/EN60950/GB4943 |
| RoHS Compliance: | RoHS5 |
