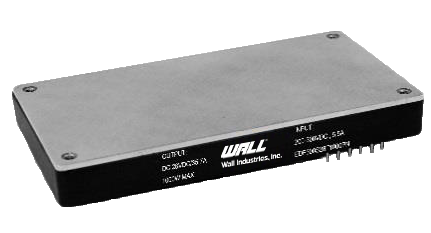

DCHP1000
The DCHP1000 series of DC/DC power modules offers up to 1000 watts of output power in a 4.6” x 2.4” x 0.55” package. This series consists with single output models with wide input voltage ranges. Features of this series include high reliability, high efficiency, high power density, as well as disable/enable control, and parallel current share function. This series is also protected against input over/under voltage conditions and over current, over voltage, over temperature, and short circuit conditions.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHP1000-300S08* | Input Voltage: 300 | Output Voltage: 8 | Output Current: 70A | Output Power (W): 560 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-500S08 | Input Voltage: 500 | Output Voltage: 8 | Output Current: 70A | Output Power (W): 560 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-300S12* | Input Voltage: 300 | Output Voltage: 12 | Output Current: 70A | Output Power (W): 840 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-500S12 | Input Voltage: 500 | Output Voltage: 12 | Output Current: 70A | Output Power (W): 840 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-300S48 | Input Voltage: 300 | Output Voltage: 48 | Output Current: 20.8A | Output Power (W): 998.4 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-500S48 | Input Voltage: 500 | Output Voltage: 48 | Output Current: 20.8A | Output Power (W): 998.4 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-300S28 | Input Voltage: 300 | Output Voltage: 28 | Output Current: 35.7A | Output Power (W): 999.6 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-500S28 | Input Voltage: 500 | Output Voltage: 28 | Output Current: 35.7A | Output Power (W): 999.6 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-300S24* | Input Voltage: 300 | Output Voltage: 24 | Output Current: 41.7A | Output Power (W): 1000.8 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-300S36 | Input Voltage: 300 | Output Voltage: 36 | Output Current: 27.8A | Output Power (W): 1000.8 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-500S24 | Input Voltage: 500 | Output Voltage: 24 | Output Current: 41.7A | Output Power (W): 1000.8 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| DCHP1000-500S36 | Input Voltage: 500 | Output Voltage: 36 | Output Current: 27.8A | Output Power (W): 1000.8 | No. Outputs: S | Case: Through Hole | Size: 4.6" x 2.4" x 0.55" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 300, 500 |
| Input Voltage Range: | 200~400, 380~650 |
| Remote ON/OFF: | Yes |
| UVLO: | See Data Sheet |
| Output | |
| Output Voltage: | 8, 12, 24, 28, 36, 48 |
| Output Current: | 20.8A, 27.8A, 35.7A, 41.7A, 70A |
| Output Power (Watts): | 560~1000 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Can be a long short circuit, automatic recovery |
| Over Voltage Protection: | 120~150%Vout |
| Thermal Protection: | Shutdown, Termistor PCB nearby temp. : 100~120ºC Recovery Turn On, Thermistor PCB Nearby Temp: 90~110ºC |
| General | |
| Efficiency: | Up to 94% |
| Isolation: | Input to Output: 4250VDC Input to Case: 3535VDC Output to Case: 1500VDC |
| Environmental | |
| Operating Temperature: | See Data Sheet |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 300VDC Nominal Input Models: 8.11oz (230g) 500VDC Nominal Input Models: 8.82oz (250g) |

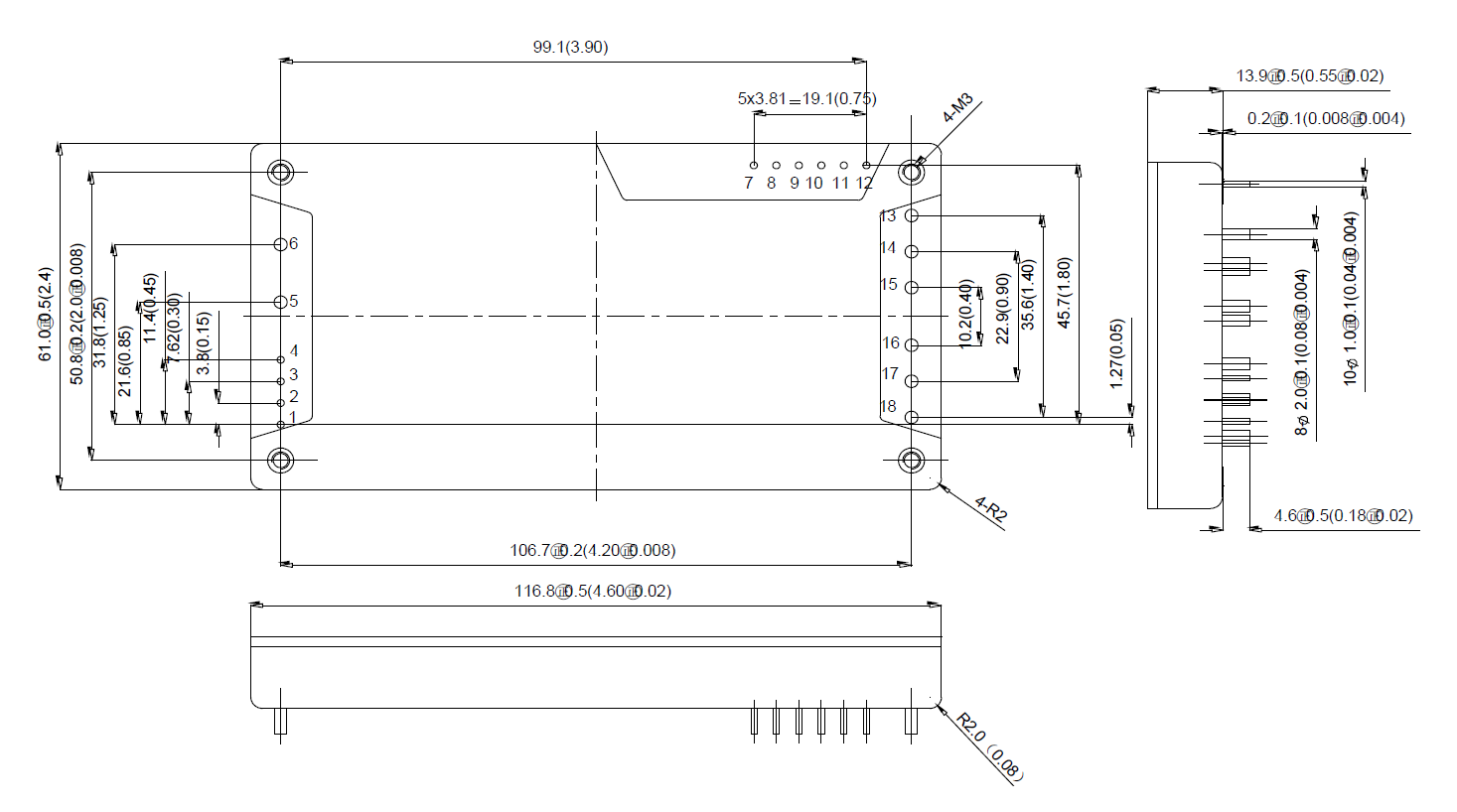

| Dimensions: | 4.6in x 2.4in x 0.55in (116.8mm x 61mm x 13.9mm) |
| Case Material: | Plastic |
| Notes & safety | |
| Notes: | 1. M grade and other output voltages are available. Contact factory for more information. 2. Products marked with "*" are Under Development *Due to advances in technology, specifications subject to change without notice. |
