DCHF600W
The DCHF600W series of DC/DC power converters offers output power from 600W to 624W in a 9.84” x 6.30” x 3.43” enclosed case. This series has 2:1 input voltage ranges of 36-72VDC and 72-144VDC and 24V, 28V, and 48VDC single outputs available. Some features include ±10% output adjustability, cooling fan, and a built-in EMI filter. These supplies are also RoHS compliant. All models are protected against short circuit, over voltage, over current, and over temperature conditions.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHF600W-SD48-24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 25A | Output Power (W): 600 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF600W-SD110-24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 25A | Output Power (W): 600 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF600W-SD48-28 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 22A | Output Power (W): 616 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF600W-SD110-28 | Input Voltage: 110 | Output Voltage: 28 | Output Current: 22A | Output Power (W): 616 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF600W-SD48-48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 13A | Output Power (W): 624 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF600W-SD110-48 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 13A | Output Power (W): 624 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 48, 110 |
| Input Voltage Range: | 36~72, 72~144 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 24, 28, 48 |
| Output Current: | 25A, 22A, 13A |
| Output Power (Watts): | 600, 616, 624 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 1000VDC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 6.17 lbs |

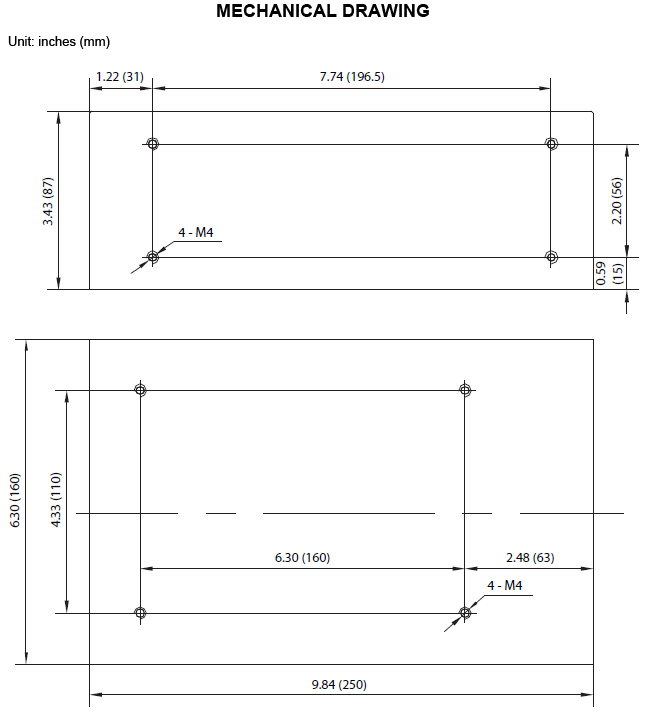

| Dimensions: | 9.84 x 6.30 x 3.43 |
| Notes & safety | |
| Notes: | Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
