DCHF100W
The DCHF100W series of DC/DC power converters offers 100W of output power in a 7.83” x 3.86” x 1.54” enclosed case. This series has 2:1 input voltage ranges of 18-36VDC, 36-72VDC, and 72-144VDC. The DCHF100W series also has 5V, 12V, 24V, and 48VDC single outputs available. Some features include ±10% output adjustability, a built-in EMI filter, and over current and short circuit protection. These supplies are also RoHS compliant.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHF100W-SD24-5 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD24-12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 8.5A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD24-24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 4.2A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD24-48 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 2.1A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD48-5 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD48-12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 8.5A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD48-24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 4.2A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD48-48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 2.1A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD110-5 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD110-12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 8.5A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD110-24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 4.2A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| DCHF100W-SD110-48 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 2.1A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 18~36, 36~72, 72~144 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 24, 48 |
| Output Current: | 20A, 8.5A, 4.2A, 2.1A |
| Output Power (Watts): | 100 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| General | |
| Efficiency: | Up to 79% |
| Isolation: | 1000VDC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.2 lbs |

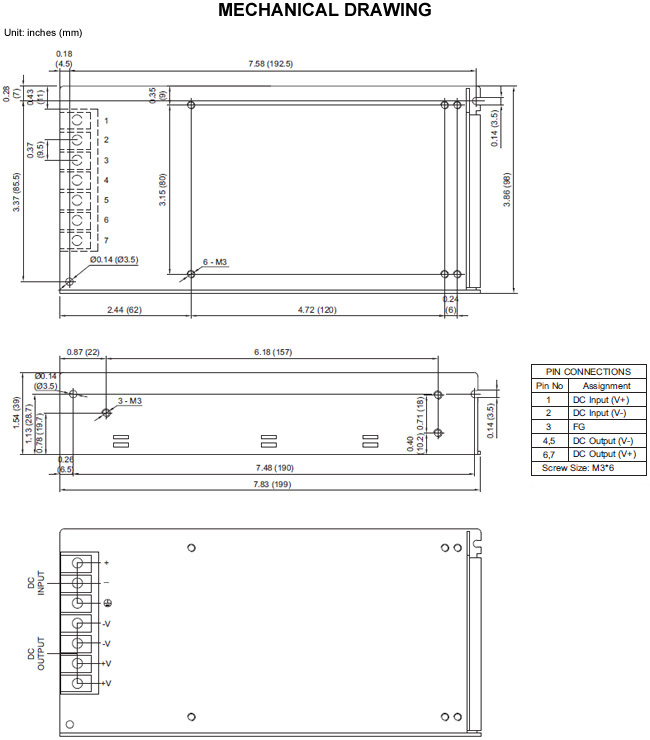

| Dimensions: | 7.83 x 3.86 x 1.54 |
| Notes & safety | |
| Notes: | *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
