DCHF1000W
The DCHF1000W series of DC/DC power converters offers output power from 840W to 1008W in a 9.84” x 6.30” x 3.43” enclosed case. This series has 24V, 28V, and 48VDC single output models with input voltage ranges of 36-72VDC and 95-132VDC. Some features include ±10% output adjustability, cooling fan, and a built-in EMI filter. These supplies are RoHS compliant and are 100% full load burn-in tested. All models are protected against short circuit, over voltage, over current, and over temperature conditions.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHF1000W-SD48-24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 35A | Output Power (W): 840 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF1000W-SD48-28 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 30A | Output Power (W): 840 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF1000W-SD110-24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 35A | Output Power (W): 840 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF1000W-SD110-28 | Input Voltage: 110 | Output Voltage: 28 | Output Current: 30A | Output Power (W): 840 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF1000W-SD48-48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 21A | Output Power (W): 1008 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| DCHF1000W-SD110-48 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 21A | Output Power (W): 1008 | No. Outputs: S | Case: Chassis Mount | Size: 9.84" x 6.3" x 3.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 48, 110 |
| Input Voltage Range: | 36~72, 95~132 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 24, 28, 48 |
| Output Current: | 35A, 30A, 21A |
| Output Power (Watts): | 840, 1008 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 1000VDC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 6.8 lbs |

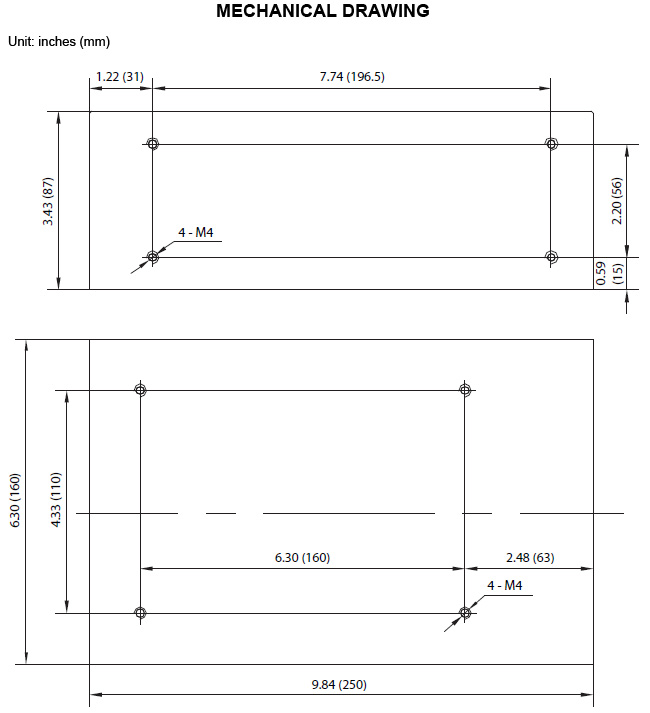

| Dimensions: | 9.84 x 6.30 x 3.43 |
| Notes & safety | |
| Notes: | *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
