DCHBW150
The DCHBW150 series of DC/DC power converters provides up to 182 watts of output pow rin an industry standard half-brick package and footprint. This series consists of single output models ranging from 3.3VDC to 48VDC with 4:1 ultra-wide input voltage ranges. Some features include high efficiency up to 91%, adjustable output voltage, and remote on/off control. These converters also have short circuit, over voltage, over current, and over temperature protection. The DCHBW150 series is RoHS & REACH compliant and has IEC/UL/EN60950-1 safety approvals. Several different options are available for this series including negative remote on/off control, terminal block, pin length, heatsinks, sync pin, case pin, and thru-hole inserts. Please contact factory for more details.
• Railway Applications
• Soft-Start
• 4:1 Ultra Wide Input Voltage Ranges
• 132~182 Watts Output Power
• Single Outputs Ranging from 3.3VDC to 48VDC
• Output Current up to 43A
• Under Voltage Lockout
• High Efficiency up to 91%
• No Minimum Load Requirements
• Adjustable Output Voltage
• Industry Standard Half-Brick Footprint
• Remote On/Off Control
• Input to Output Basic Insulation: 2250VDC, 3000VAC Reinforced Insulation

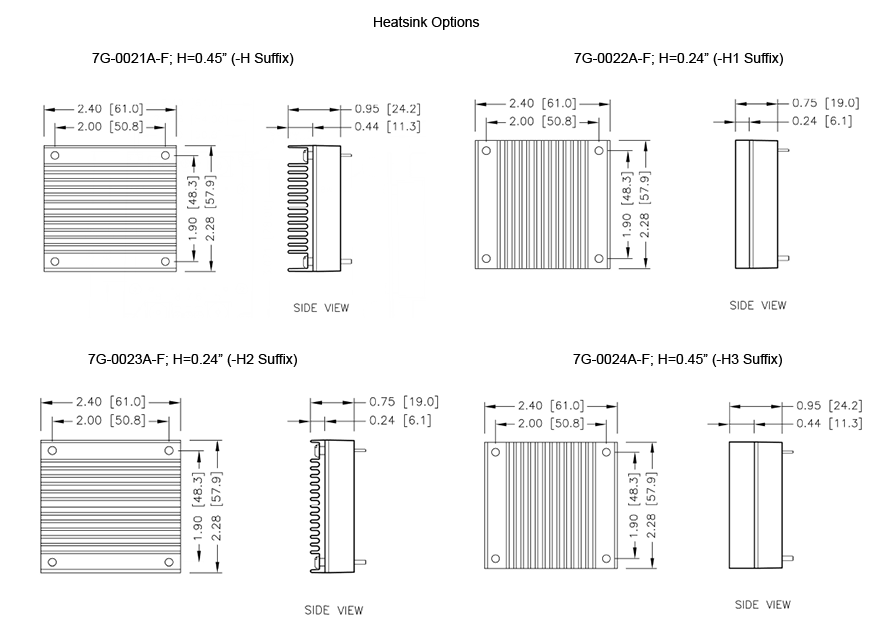

• Several Mechanical Options Available
• Short Circuit, Over Voltage, Over Current, and Over Temperature Protection
• RoHS & REACH Compliant
• IEC/UL/EN60950-1 Safety Approvals
Part Number Setup:

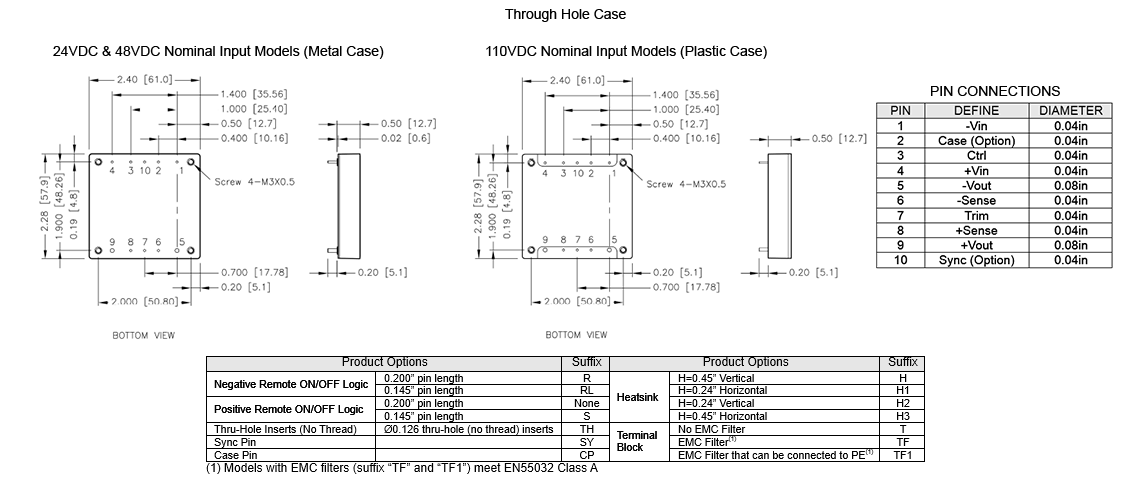

No Suffix: Through Hole

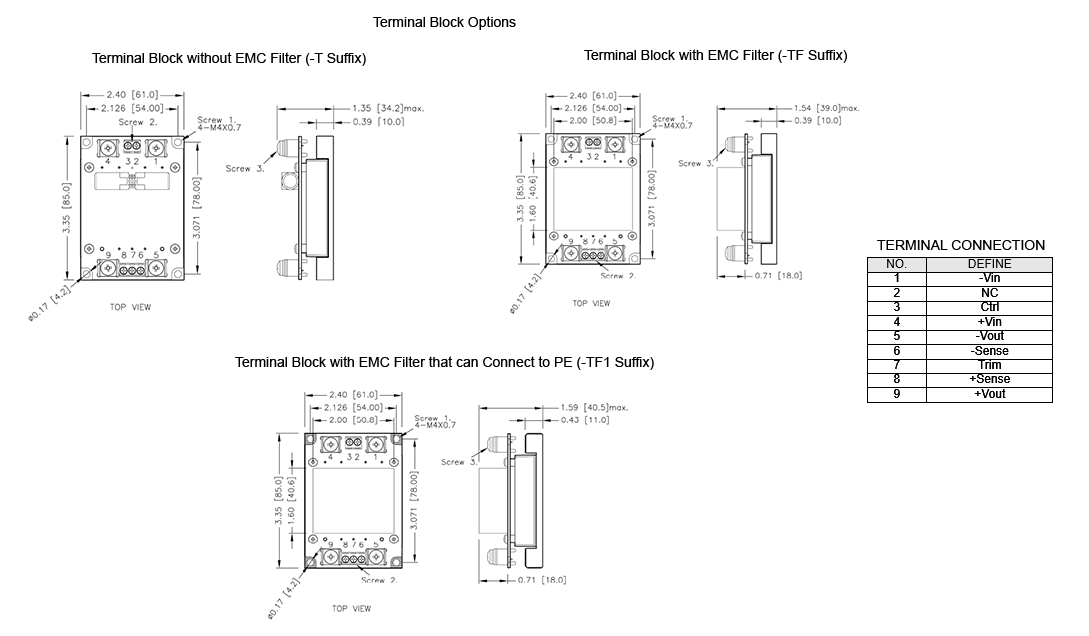

"x"= Chassis Mount Options
T: No EMC Filter
TF: EMC Filter
TF1: EMC Filter that can be connected to PE
No Suffix: Through Hole
"x"= Chassis Mount Options
T: No EMC Filter
TF: EMC Filter
TF1: EMC Filter that can be connected to PE
Example:
DCHBW150-24S05TF = 24VDC Input, 5VDC Output with EMC Filter
DCHBW150-24S05TF = 24VDC Input, 5VDC Output with EMC Filter
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHBW150-24S3.3 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-48S3.3 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-24S3.3x | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-48S3.3x | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 28A | Output Power (W): 140 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-24S28 | Input Voltage: 24 | Output Voltage: 28 | Output Current: 5A | Output Power (W): 140 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-24S05x | Input Voltage: 24 | Output Voltage: 5 | Output Current: 28A | Output Power (W): 140 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-24S28x | Input Voltage: 24 | Output Voltage: 28 | Output Current: 5A | Output Power (W): 140 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-110S3.3 | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 43A | Output Power (W): 141.9 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-110S3.3x | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 43A | Output Power (W): 141.9 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 9.5A | Output Power (W): 142.5 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-24S15x | Input Voltage: 24 | Output Voltage: 15 | Output Current: 9.5A | Output Power (W): 142.5 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 12A | Output Power (W): 144 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 6A | Output Power (W): 144 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-24S48 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 3A | Output Power (W): 144 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-24S12x | Input Voltage: 24 | Output Voltage: 12 | Output Current: 12A | Output Power (W): 144 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-24S24x | Input Voltage: 24 | Output Voltage: 24 | Output Current: 6A | Output Power (W): 144 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-24S48x | Input Voltage: 24 | Output Voltage: 48 | Output Current: 3A | Output Power (W): 144 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 30A | Output Power (W): 150 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-48S05x | Input Voltage: 48 | Output Voltage: 5 | Output Current: 30A | Output Power (W): 150 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-48S15x | Input Voltage: 48 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-48S48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 153.6 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-48S48x | Input Voltage: 48 | Output Voltage: 48 | Output Current: 3.2A | Output Power (W): 153.6 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-48S28 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 5.5A | Output Power (W): 154 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-48S28x | Input Voltage: 48 | Output Voltage: 28 | Output Current: 5.5A | Output Power (W): 154 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 13A | Output Power (W): 156 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 6.5A | Output Power (W): 156 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-48S12x | Input Voltage: 48 | Output Voltage: 12 | Output Current: 13A | Output Power (W): 156 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-48S24x | Input Voltage: 48 | Output Voltage: 24 | Output Current: 6.5A | Output Power (W): 156 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-110S05 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 32A | Output Power (W): 160 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-110S05x | Input Voltage: 110 | Output Voltage: 5 | Output Current: 32A | Output Power (W): 160 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-110S12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 15A | Output Power (W): 180 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-110S15 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 12A | Output Power (W): 180 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-110S24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 7.5A | Output Power (W): 180 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-110S12x | Input Voltage: 110 | Output Voltage: 12 | Output Current: 15A | Output Power (W): 180 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-110S15x | Input Voltage: 110 | Output Voltage: 15 | Output Current: 12A | Output Power (W): 180 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-110S24x | Input Voltage: 110 | Output Voltage: 24 | Output Current: 7.5A | Output Power (W): 180 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-110S28 | Input Voltage: 110 | Output Voltage: 28 | Output Current: 6.5A | Output Power (W): 182 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-110S28x | Input Voltage: 110 | Output Voltage: 28 | Output Current: 6.5A | Output Power (W): 182 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| DCHBW150-110S48 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 3.8A | Output Power (W): 182.4 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHBW150-110S48x | Input Voltage: 110 | Output Voltage: 48 | Output Current: 3.8A | Output Power (W): 182.4 | No. Outputs: S | Case: Chassis Mount | Size: 3.35" x 2.4" x 1.35~1.59" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 16.5~75, 43~160, 8.5~36, 9~36 |
| Input Filter: | Pi type |
| Remote ON/OFF: | Positive (standard) or Negative (optional) logic |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, 28, 48 |
| Voltage Accuracy: | ±1% |
| Output Current: | 40A, 28A, 12A, 9.5A, 6A, 5A, 3A, 30A, 13A, 10A, 6.5A, 5.5A, 3.2A, 43A, 32A, 15A, 12A, 7.5A, 6.5A, 3.8A |
| Output Power (Watts): | 132, 140, 141.9, 142, 142.5, 144, 150, 153.6, 154, 156, 160, 180, 182, 182.4 |
| Output Trim/Adjustability: | -20 - +10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 115-130% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | 110Vin Input Models: Input to Output: 3000VAC Input (Output to Case): 1500VAC Other Models: Input to Output: 2250VDC Input (Output to Case): 1600VDC |
| Environmental | |

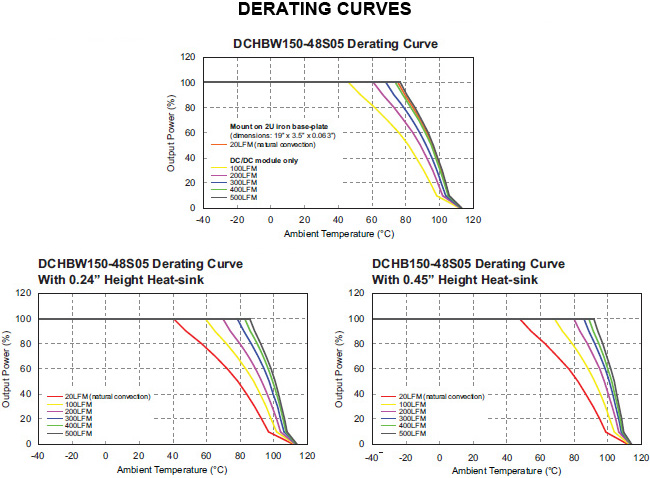

| Operating Temperature: | -40 to 115°C (case) |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | Through Hole Package: 3.7 oz (105g) Terminal Block without EMC Filter (-T Suffix): 8.29oz (235g) Terminal Block with EMC Filter (-TF Suffix): 9.88oz (280g) Terminal Block with EMC Filter That Can Connect to PE (-TF1 Suffix): 12.16oz (344.73g) |
| Dimensions: | Through Hole: 2.4in x 2.28in x 0.5in Terminal Block without EMC Filter (-T Suffix): 3.35in x 2.40in x 1.35in Terminal Block with EMC Filter (-TF Suffix): 3.35in x 2.40in x 1.54in Terminal Block with EMC Filter That Can Connect to PE (-TF1 Suffix): 3.35in x 2.40in x 1.59in |
| Case Material: | 24V & 48V input models: metal 110V input models: aluminum base-plate with plastic case |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. Input source impedance: Power module will operate as specifications without external components, assuming source voltage has very low impedance and reasonable input voltage regulation. Highly inductive source impedances can affect stability of the power module. Since real-world voltage source has finite impedance, performance can be improved by adding external filter capacitor. 24VDC & 48VDC Nominal Input Voltage recommended capacitor: Nippon Chemi-con KY series, 100µF/100V 110VDC Nominal Input Voltage recommended capacitor: Ruby-con BXF series, 68µF/200V 2. (1) Multiple DCHBW150 series modules can be synchronized together simply by connecting the module SYNC pins together. Care should be taken to ensure the ground potential difference between the modules are minimized. (2) In this configuration all of the modules will be synchronized to the highest frequency module. (3) Up to three modules can be synchronized using this technique (4) More relevant information in application notes 3. Output voltage is adjustable for 10% trim up or -20% trim down of nominal output voltage by connecting a single resistor between TRIM and +SENSE pins for trim up or between TRMI and –SENSE pins for trim down. To calculate value of the resistor RU and RD. For particular output voltage see page 5. 4. Maximum output deviation is +10% inclusive of remote sense and trim. If remote sense is not being used, the +SENSE should be connected to corresponding +OUTPUT and likewise the –SENSE should be connected to its corresponding –OUTPUT. 5. CTRL pin is referenced to –INPUT. To order negative logic remote on/off control add the suffix “R” to the model number. Ex. DCHBW150-48S12R 6. (1) Thermal test conditions for vertical direction are by natural convection (20LFM). (2) The iron base-plate dimensions are 19” x 3.5” x 0.063” (the height is EIA standard 2U) (3) Heat sink is optional. See “Product Options” table on page 7 for suffix options. 7. CASE GROUNDING: Connecting four screw bolts to shield plane will help to reduce the EMI 8. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. 24VDC & 48VDC Nominal Input Voltage Models: 2pcs of aluminum electrolytic capacitor (Nippon Chemi-con KY series, 220µF/100V) 110VDC Nominal Input Models: 2pcs of aluminum electrolytic capacitor (Nippon Chemi-con KXJ series, 150µF/200V) 9. This series comes with several different options: negative remote on/off control, heatsinks, case pin, sync pin, pin length, terminal block, and thru-hole inserts. See the Product Options table on page for 7 more ordering information. 10. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1, EN50155, EN45545-2 |
| RoHS Compliance: | Yes |
