DCHBW100

The DCHBW100 series of DC/DC power converters provides up to 100.8 Watts of output power in an industry standard half-brick package and footprint. This series consists of single output models ranging from 3.3VDC to 48VDC with 4:1 ultra wide input voltage ranges. Some features include high efficiency up to 93%, adjustable output voltage, and remote on/off control. These converters also have short circuit, over voltage, over current, and over temperature protection. The DCHBW100 series is RoHS compliant and has UL60950-1, EN60950-1, IEC60950-1, and EN50155 safety approvals. Several different options are available for this series including negative remote on/off control, terminal block, pin length, heatsinks, and thru-hole inserts.

• Railway Applications • Soft-Start • 4:1 Ultra Wide Input Voltage Ranges • 82.5~100.8 Watts Output Power • High Efficiency up to 93% • Under Voltage Lockout • No Minimum Load Requirements • Adjustable Output Voltage • Remote On/Off Control • Industry Standard Half-Brick Footprint • Single Outputs Ranging from 3.3VDC to 48VDC • 2250VDC Basic Insulation for 24VIN & 48VIN • 3000VAC Reinforced Insulation for 110VDC Nominal Input Models • Threaded Inserts and Thru-Hole Inserts Available • Short Circuit, Over Voltage, Over Current, and Over Temp. Protection • Compliant to RoHS II & REACH • CE Mark Meets 2006/95/EC, 2011/95/EC, and 2004/108/EC • UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals

Part Number Setup:
No Suffix: Through Hole

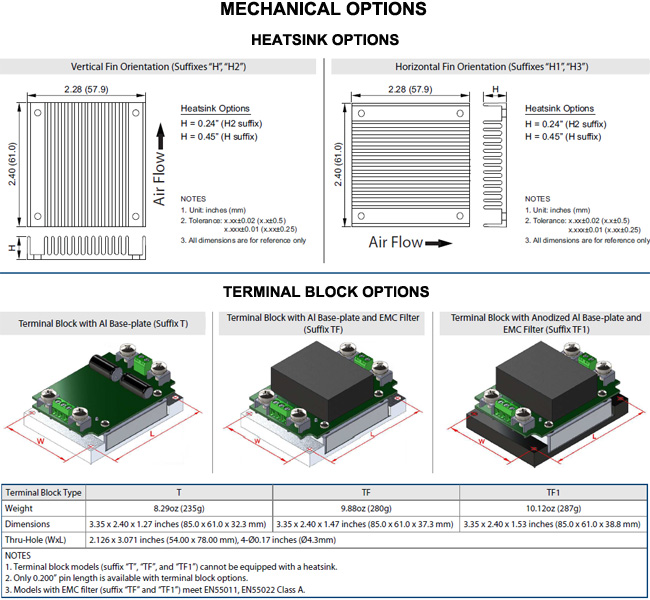

"x"= Chassis Mount Options
T: Terminal Block with Aluminum Baseplate
TF: Terminal Block with Aluminum Baseplate and EMC Filter
TF1: Terminal Block with Anodized Aluminum Baseplate and EMC Filter, can be connected to PE

Example:
DCHBW100-24S12T = 24VDC Input, 12VDC Output with Terminal Block with Aluminum Baseplate

Get a Quote Request a Sample Custom Solutions

Models
Specifications

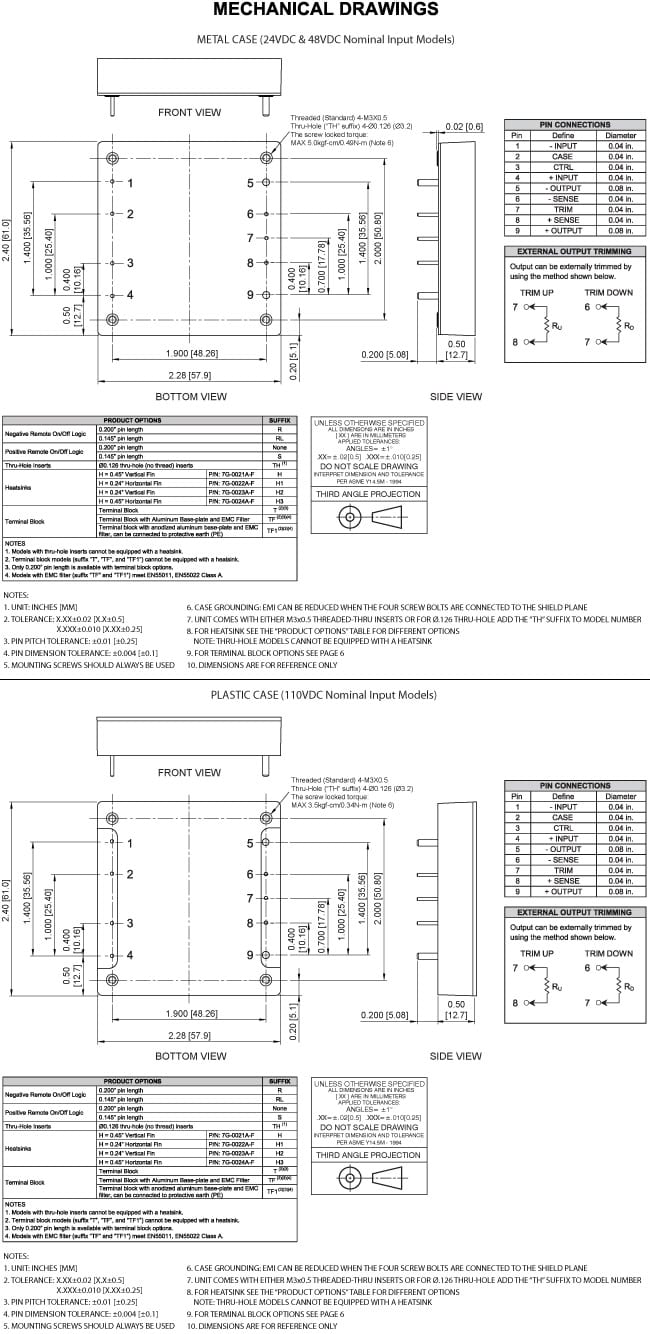

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DCHBW100-24S3.3	Input Voltage: 24	Output Voltage: 3.3	Output Current: 25A	Output Power (W): 82.5	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S3.3	Input Voltage: 48	Output Voltage: 3.3	Output Current: 25A	Output Power (W): 82.5	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S3.3	Input Voltage: 110	Output Voltage: 3.3	Output Current: 25A	Output Power (W): 82.5	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S3.3x	Input Voltage: 24	Output Voltage: 3.3	Output Current: 25A	Output Power (W): 82.5	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S3.3x	Input Voltage: 48	Output Voltage: 3.3	Output Current: 25A	Output Power (W): 82.5	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S3.3x	Input Voltage: 110	Output Voltage: 3.3	Output Current: 25A	Output Power (W): 82.5	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S05	Input Voltage: 24	Output Voltage: 5	Output Current: 20A	Output Power (W): 100	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S05	Input Voltage: 48	Output Voltage: 5	Output Current: 20A	Output Power (W): 100	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S05	Input Voltage: 110	Output Voltage: 5	Output Current: 20A	Output Power (W): 100	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S05x	Input Voltage: 24	Output Voltage: 5	Output Current: 20A	Output Power (W): 100	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S05x	Input Voltage: 48	Output Voltage: 5	Output Current: 20A	Output Power (W): 100	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S05x	Input Voltage: 110	Output Voltage: 5	Output Current: 20A	Output Power (W): 100	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S15	Input Voltage: 24	Output Voltage: 15	Output Current: 6.7A	Output Power (W): 100.5	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S15	Input Voltage: 48	Output Voltage: 15	Output Current: 6.7A	Output Power (W): 100.5	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S15	Input Voltage: 110	Output Voltage: 15	Output Current: 6.7A	Output Power (W): 100.5	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S15x	Input Voltage: 24	Output Voltage: 15	Output Current: 6.7A	Output Power (W): 100.5	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S15x	Input Voltage: 48	Output Voltage: 15	Output Current: 6.7A	Output Power (W): 100.5	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S15x	Input Voltage: 110	Output Voltage: 15	Output Current: 6.7A	Output Power (W): 100.5	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S12	Input Voltage: 24	Output Voltage: 12	Output Current: 8.4A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S24	Input Voltage: 24	Output Voltage: 24	Output Current: 4.2A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S28	Input Voltage: 24	Output Voltage: 28	Output Current: 3.6A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S48	Input Voltage: 24	Output Voltage: 48	Output Current: 2.1A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S12	Input Voltage: 48	Output Voltage: 12	Output Current: 8.4A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S24	Input Voltage: 48	Output Voltage: 24	Output Current: 4.2A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S28	Input Voltage: 48	Output Voltage: 28	Output Current: 3.6A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S48	Input Voltage: 48	Output Voltage: 48	Output Current: 2.1A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S12	Input Voltage: 110	Output Voltage: 12	Output Current: 8.4A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S24	Input Voltage: 110	Output Voltage: 24	Output Current: 4.2A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S28	Input Voltage: 110	Output Voltage: 28	Output Current: 3.6A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S48	Input Voltage: 110	Output Voltage: 48	Output Current: 2.1A	Output Power (W): 100.8	No. Outputs: S	Case: Through Hole	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S12x	Input Voltage: 24	Output Voltage: 12	Output Current: 8.4A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S24x	Input Voltage: 24	Output Voltage: 24	Output Current: 4.2A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S28x	Input Voltage: 24	Output Voltage: 28	Output Current: 3.6A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-24S48x	Input Voltage: 24	Output Voltage: 48	Output Current: 2.1A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S12x	Input Voltage: 48	Output Voltage: 12	Output Current: 8.4A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S24x	Input Voltage: 48	Output Voltage: 24	Output Current: 4.2A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S28x	Input Voltage: 48	Output Voltage: 28	Output Current: 3.6A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-48S48x	Input Voltage: 48	Output Voltage: 48	Output Current: 2.1A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S12x	Input Voltage: 110	Output Voltage: 12	Output Current: 8.4A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S24x	Input Voltage: 110	Output Voltage: 24	Output Current: 4.2A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S28x	Input Voltage: 110	Output Voltage: 28	Output Current: 3.6A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote
DCHBW100-110S48x	Input Voltage: 110	Output Voltage: 48	Output Current: 2.1A	Output Power (W): 100.8	No. Outputs: S	Case: Chassis Mount	Size: 2.4" x 2.28" x 0.5	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	24, 48, 110
Input Voltage Range:	16.5~75, 43~160, 8.5~36, 9~36
Input Filter:	Pi type
Remote ON/OFF:	Positive (standard) or Negative (optional) logic
UVLO:	Yes
Input Frequency:	0 Hz
Output
Output Voltage:	3.3, 5, 12, 15, 24, 28, 48
Voltage Accuracy:	±1%
Output Current:	25A, 20A, 8.4A, 6.7A, 4.2A, 3.6A, 2.1A
Output Power (Watts):	82.5, 100, 100.5, 100.8
Output Trim/Adjustability:	-20 - +10%
Short Circuit Protection:	Continuous, automatic recovery
Over Voltage Protection:	115-130%
Thermal Protection:	Yes
General
Efficiency:	Up to 93%
Isolation:	24VDC & 48VDC Input Models: 2250VDC Basic Insulation 110VDC Input Models: 3000VAC Reinforced Insulation
Environmental

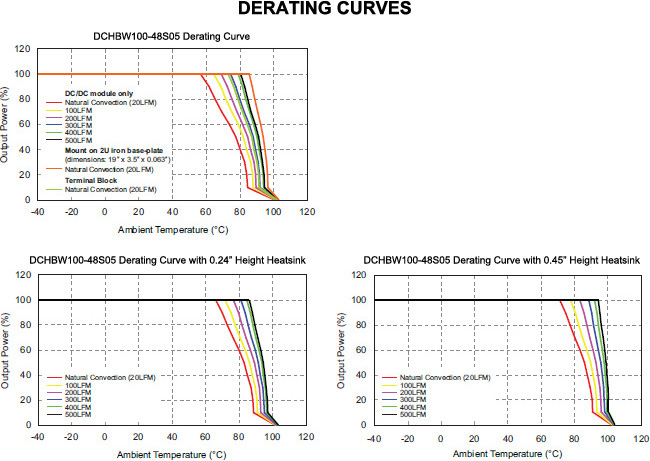

Operating Temperature:	-40 to 115°C (case)
Storage Temperature:	-55 to 125°C
Physical
Weight:	3.7 oz
Dimensions:	2.40 x 2.28 x 0.50
Case Material:	24VDC & 48VDC Input Models: metal110VDC Input Models: aluminum base-plate with plastic case
Shielding:	Six-Sided
Notes & safety
Notes:	NOTES 1. Input Source Impedance: These converters will operate under all listed specifications without external components assuming that the source voltage has very low impedance and reasonable input voltage regulation. Highly inductive source impedances can affect the stability of the converter. Since real world voltage sources have finite impedance, performance can be improved by adding an external filter capacitor. - For 24VDC & 48VDC nominal input models, we recommend Nippon chemi-con KY series, 100μF/100V. - For 110VDC nominal input models, we recommend Ruby-con BXF series, 68µF/200V. 2. Maximum output deviation is +10% inclusive of remote sense and trim. If remote sense is not being used the +SENSE should be connected to its corresponding +OUTPUT and likewise the -SENSE should be connected to its corresponding –OUTPUT. 3. (1) Thermal test conditions for vertical direction are by natural convection (20LFM). (2) The iron base-plate dimensions are 19” x 3.5” x 0.063” (the height is EIA standard 2U). (3) Heat sink is optional. See the “Model Number Setup” table on page 8 for suffix options. 4. The DCHBW100 standard models (no assembly options) can meet EN55011, EN55022 Class A or Class B with additional external components. 5. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. For 24VDC & 48VDC nominal input models, we recommend connecting two aluminum electrolytic capacitors (Nippon chemi-con KY series, 220μF/100V) in parallel. For 110VDC nominal input models, we recommend connecting three aluminum electrolytic capacitors (Nippon chemi-con KXJ series, 150μF/200V) in parallel. 6. Output voltage is adjustable for 10% trim up or -20% trim down of nominal output voltage by connecting a single resistor between TRIM and +SENSE pins for trim up or between TRIM and -SENSE pins for trim down. To calculate the value of the resistor RU and RD for a particular output voltage see page 6. 7. Measured by 20MHz bandwidth. 8. CASE GROUNDING: EMI can be reduced when you connect the four screw bolts to the shield plane. 9. This series comes with several different options: negative remote on/off control, heatsinks, case pin, sync pin, pin length, terminal block, and thru-hole inserts. See the “Model Number Setup” table on page 8 for more ordering information. 10. This product is Listed to applicable standards and requirements by UL. CAUTION: This power converter is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications are subject to change without notice.
Safety Approvals:	UL60950-1, EN60950-1, IEC60950-1, EN50155
RoHS Compliance:	Yes
