DCHB200
The DCHB200 series of DC/DC power converters provides up to 255 Watts of output power in an industry standard half-brick package and footprint. This series consists of single output models ranging from 3.3VDC to 53VDC with 2:1 wide input voltage ranges. Some features include high efficiency up to 93%, adjustable output voltage, and remote on/off control. These converters also have short circuit, over voltage, over current, and over temperature protection. The DCHB200 series is RoHS compliant and IEC/EN/UL62368-1 safety approvals. Several different options are available for this series including negative remote on/off control, terminal block, pin length, heatsinks, sync pin, case pin, and thru-hole inserts.
• 2:1 Wide Input Voltage Ranges
• 165~255 Watts Output Power
• No Minimum Load Requirements
• Adjustable Output Voltage
• Remote On/Off Control
• Industry Standard Half-Brick Footprint
• High Efficiency up to 93%
• Single Outputs Ranging from 3.3VDC to 53VDC
• Threaded Inserts and Thru-Hole Inserts Available
• Short Circuit, Over Voltage, Over Load, & Over Temp. Protection
• -40°C to +115°C Operating Case Temperature
• RoHS & REACH Compliant
• CE Marked
• IEC/EN/UL62368-1 Safety Approvals
• Several Mechanical Options Available
Part Number Setup:
"Tx"= Chassis Mount Options

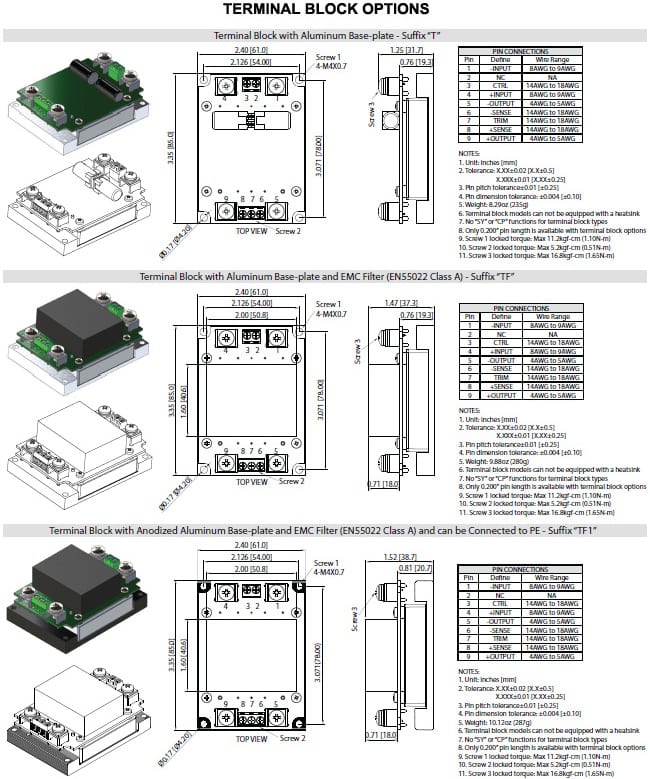

T: Chassis Mount, Terminal Block with Aluminum Baseplate
TF1: Chassis Mount, Terminal Block with Anodized Aluminum Baseplate and EMC Filter, can be connected to PE
"Tx"= Chassis Mount Options
T: Chassis Mount, Terminal Block with Aluminum Baseplate
TF1: Chassis Mount, Terminal Block with Anodized Aluminum Baseplate and EMC Filter, can be connected to PE
Example:
DCHB200-12S3.3T= 3.3V Chassis Mount, Terminal Block with Aluminum Baseplate
DCHB200-12S3.3T= 3.3V Chassis Mount, Terminal Block with Aluminum Baseplate
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

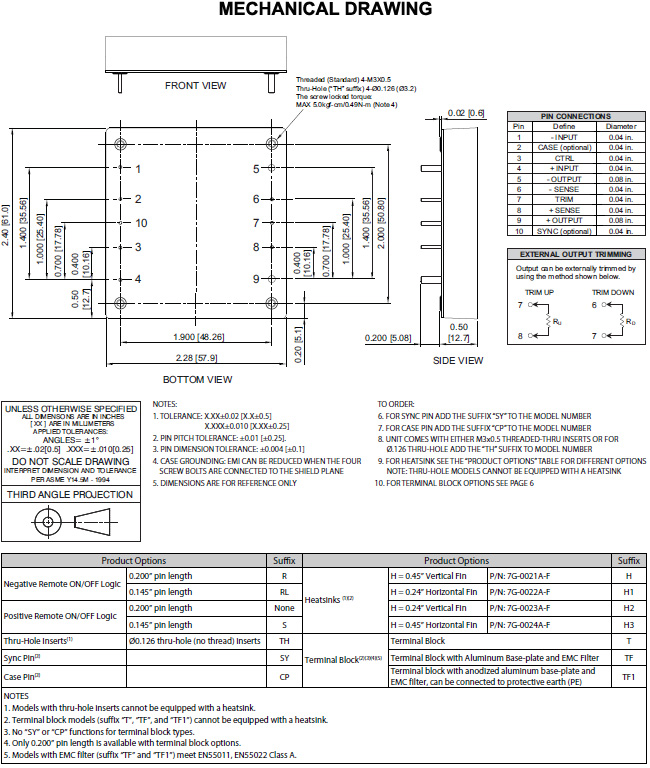

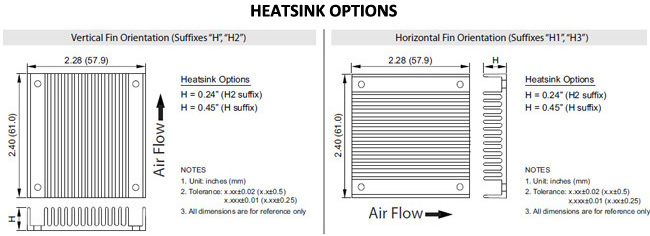

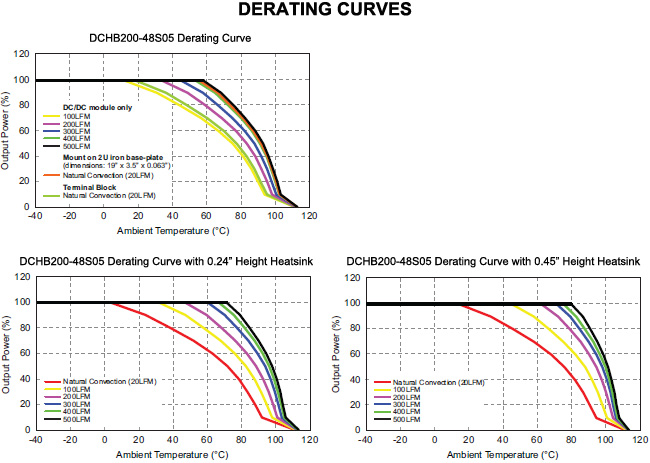

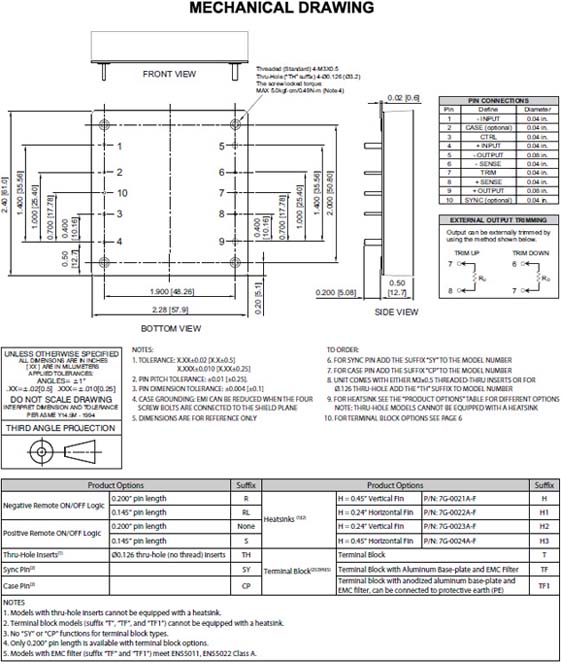

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHB200-12S3.3 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 50A | Output Power (W): 165 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S3.3 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 50A | Output Power (W): 165 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S3.3Tx | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 50A | Output Power (W): 165 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S3.3Tx | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 50A | Output Power (W): 165 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S48 | Input Voltage: 12 | Output Voltage: 48 | Output Current: 3.7A | Output Power (W): 177.6 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S48Tx | Input Voltage: 12 | Output Voltage: 48 | Output Current: 3.7A | Output Power (W): 177.6 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 36A | Output Power (W): 180 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 15A | Output Power (W): 180 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 12A | Output Power (W): 180 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 7.5A | Output Power (W): 180 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S12Tx | Input Voltage: 12 | Output Voltage: 12 | Output Current: 15A | Output Power (W): 180 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S15Tx | Input Voltage: 12 | Output Voltage: 15 | Output Current: 12A | Output Power (W): 180 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S24Tx | Input Voltage: 12 | Output Voltage: 24 | Output Current: 7.5A | Output Power (W): 180 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S28 | Input Voltage: 12 | Output Voltage: 28 | Output Current: 6.5A | Output Power (W): 182 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-12S28Tx | Input Voltage: 12 | Output Voltage: 28 | Output Current: 6.5A | Output Power (W): 182 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S3.3 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 60A | Output Power (W): 198 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S3.3Tx | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 60A | Output Power (W): 198 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 40A | Output Power (W): 200 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S05Tx | Input Voltage: 24 | Output Voltage: 5 | Output Current: 40A | Output Power (W): 200 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S28 | Input Voltage: 24 | Output Voltage: 28 | Output Current: 7.5A | Output Power (W): 210 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S28Tx | Input Voltage: 24 | Output Voltage: 28 | Output Current: 7.5A | Output Power (W): 210 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 18A | Output Power (W): 216 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 9A | Output Power (W): 216 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S48 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 4.5A | Output Power (W): 216 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S12Tx | Input Voltage: 24 | Output Voltage: 12 | Output Current: 18A | Output Power (W): 216 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S24Tx | Input Voltage: 24 | Output Voltage: 24 | Output Current: 9A | Output Power (W): 216 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S48Tx | Input Voltage: 24 | Output Voltage: 48 | Output Current: 4.5A | Output Power (W): 216 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 15A | Output Power (W): 225 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-24S15Tx | Input Voltage: 24 | Output Voltage: 15 | Output Current: 15A | Output Power (W): 225 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 46A | Output Power (W): 230 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S05Tx | Input Voltage: 48 | Output Voltage: 5 | Output Current: 46A | Output Power (W): 230 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S53 | Input Voltage: 48 | Output Voltage: 53 | Output Current: 4.7A | Output Power (W): 249.1 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S53Tx | Input Voltage: 48 | Output Voltage: 53 | Output Current: 4.7A | Output Power (W): 249.1 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 5.2A | Output Power (W): 249.6 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 21A | Output Power (W): 252 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 10.5A | Output Power (W): 252 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S28 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 9A | Output Power (W): 252 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S12Tx | Input Voltage: 48 | Output Voltage: 12 | Output Current: 21A | Output Power (W): 252 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S24Tx | Input Voltage: 48 | Output Voltage: 24 | Output Current: 10.5A | Output Power (W): 252 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S28Tx | Input Voltage: 48 | Output Voltage: 28 | Output Current: 9A | Output Power (W): 252 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 17A | Output Power (W): 255 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB200-48S15Tx | Input Voltage: 48 | Output Voltage: 15 | Output Current: 17A | Output Power (W): 255 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 16.5~36, 33~75, 8.5~22, 9~22 |
| Input Filter: | Pi type |
| Remote ON/OFF: | Positive (standard) or Negative (optional) logic |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, 28, 48, 53 |
| Voltage Accuracy: | ±1% |
| Output Current: | 50A, 36A, 15A, 12A, 7.5A, 6.5A, 3.7A, 40A, 18A, 15A, 9A, 7.5A, 4.5A, 60A, 46A, 21A, 17A, 10.5A, 9A, 5.2A, 4.7A |
| Output Power (Watts): | 165, 177.6, 180, 182, 198, 200, 210, 216, 225, 230, 249.1, 24.9.6, 252, 255 |
| Output Trim/Adjustability: | -20 - +10% |
| Short Circuit Protection: | continuous, automatic recovery |
| Over Voltage Protection: | 115-130% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | 3000VDC |
| Environmental | |
| Operating Temperature: | -40 to 115°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | Standard models: 3.70oz (105g) “T” suffix models: 8.29oz (235g) “TF1” suffix models: 10.12oz (287g) |
| Dimensions: | Standard models: 2.40 x 2.28 x 0.50 inches (61.0 x 57.9 x 12.7 mm) “T” suffix models: 3.35 x 2.40 x 1.27 inches (85.0 x 61.0 x 32.3 mm) “TF1” suffix models: 3.35 x 2.40 x 1.59 inches (85.0 x 61.0 x 40.5 mm) |
| Case Material: | Metal |
| Notes & safety | |
| Notes: | 1. Input Source Impedance: These converters will operate under all listed specifications without external components assuming that the source voltage has very low impedance and reasonable input voltage regulation. Highly inductive source impedances can affect the stability of the converter. Since real world voltage sources have finite impedance, performance can be improved by adding an external filter capacitor. We recommend Nippon chemi-con KY series, 100μF/100V. 2. (1) Multiple DCHB200 series modules can be synchronized together simply by connecting the module SYNC pins together. Care should be taken to ensure the ground potential differences between the modules are minimized. (2) In this configuration all of the modules will be synchronized to the highest frequency module. (3) Up to three modules can be synchronized using this technique. (4) More relevant information in the application notes. 3. If remote sense is not being used the Sense pins should be connected to its corresponding polarity OUTPUT pins. 4. Referred to -Vin pin 5. (1) Thermal test conditions for vertical direction are by natural convection (20LFM). (2) The iron base-plate dimensions are 19” x 3.5” x 0.063” (the height is EIA standard 2U). (3) Heat sink is optional. See the “Model Number Setup” table on page 7 for suffix options. 6. Connecting four screw bolts to shield plane will help to reduce EMI. 7. With 2 pcs of aluminum electrolytic capacitor (Nippon chemi-con KY series, 220μF/100V) in parallel. 8. This series comes with several different options: negative remote on/off control, heatsinks, case pin, sync pin, pin length, terminal block, and thru-hole inserts. See the “Model Number Setup” table on page 7 for more ordering information. 9. This product is Listed to applicable standards and requirements by UL. CAUTION: This power converter is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC/EN/UL62368-1 |
| RoHS Compliance: | Yes |
