DCDTW15
The DCDTW15 series of DC/DC converters offers up to 15 watts of output power in a compact 0.94” x 0.54” x 0.4” DIP-16 package. This series consists of both single and dual output models with a wide 4:1 input voltage range. Each model in this series has fully regulated output voltage, no minimum load requirement, as well as a shielded metal case with insulated baseplate. This series is RoHS compliant, has under voltage, over load and short circuit protection, and UL/cUL/IEC/E N 62368-1 safety approvals.
• Wide 4:1 Input Voltage Range • Industry Standard DIP-16 Package • Fully Regulated Output Voltage • I/O Isolation 1500VDC • No Min. Load Requirement • RoHS Compliant • Optional Heatsink • Low No Load Power Consumption • Shielded Metal Case with Insulated Baseplate • Under Voltage Protection • Over Load and Short Circuit Protection • Conducted EMI EN 55032 Class A Approved • UL/cUL/IEC/EN 62368-1 Safety Approval & CE Marking
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCDTW15-24S51 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 2940mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-48S51 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 2940mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDTW15-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Internal Pi Type |
| Output | |
| Output Voltage: | ±12, ±15, 5.1, 12, 15, 24 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | ±500mA, ±625mA, 625mA, 1000mA, 1250mA, 2940mA |
| Output Power (Watts): | 15 |
| Short Circuit Protection: | Continuous, Automatic Recovery, Hiccup Mode 0.3Hz typ. |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | Up to 1800VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -50 to 125°C |
| Physical | |
| Weight: | 0.31oz (8.77g) |

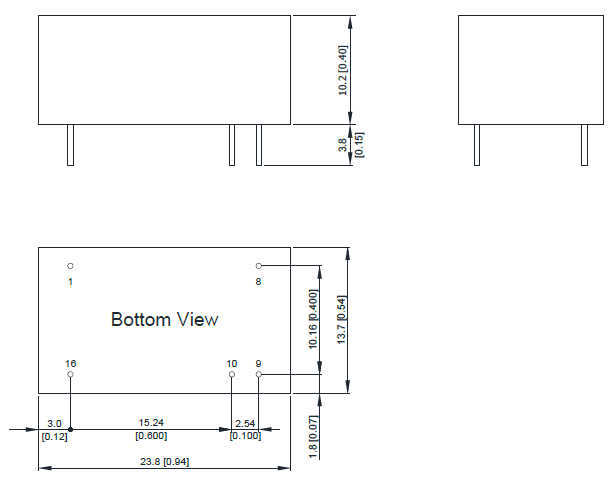

| Dimensions: | 0.94in x 0.54in x 0.4in (23.8mm x 13.7mm x 10.2mm) |
| Case Material: | Metal with Non-Conductive Baseplate |
| Notes & safety | |

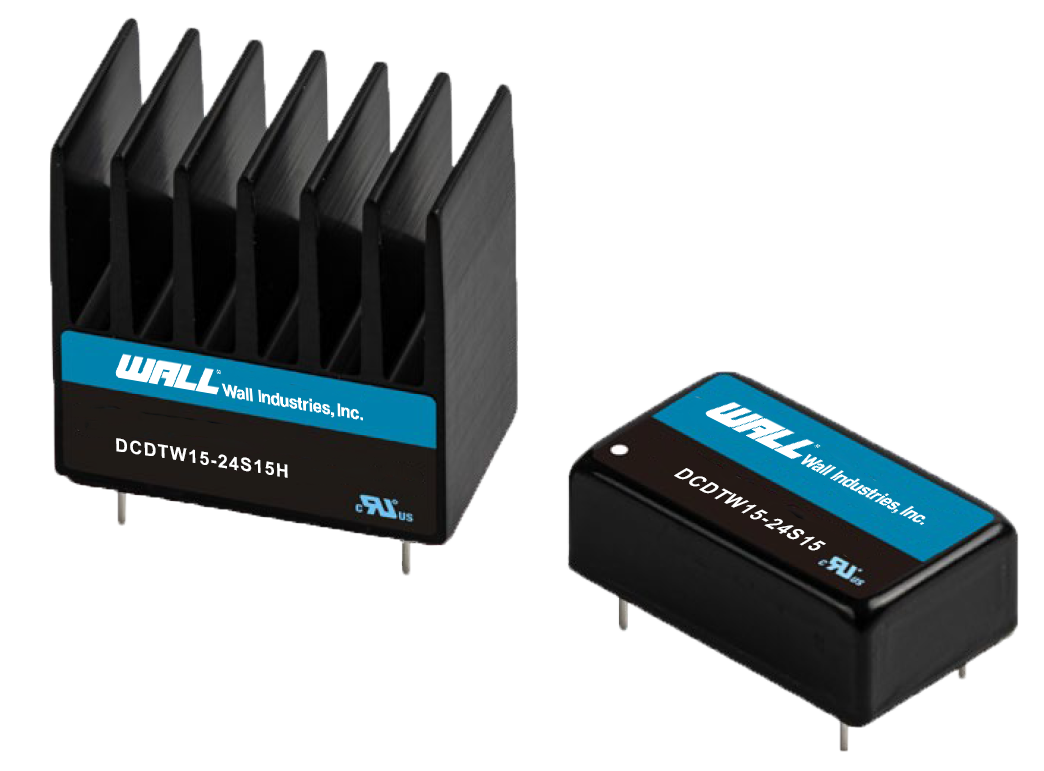

| Notes: | 1. Transient Recovery time is measured to within 1% error band for a step change in output load of 75% to 100% 2. It is recommended to protect the converter by a slow blow fuse in the input supply line. 3. Other inputs and outputs may be available, please contact factory. 4. This product is Listed to applicable standards and requirements by UL. 5. The external components might be required to meet EMI/EMS standard for some test items. Contact factory for more information. 6. Heatsink is available for this series. To indicate product with heatsink, add “H” suffix. *Due to advances in technology, specifications subject to change without notice |
| Safety Approvals: | UL/cUL 62368-1 Recognition (UL Certificate), IEC/EN 62368-1 (CB Report) |
| RoHS Compliance: | Yes |
