DCACF300
The DCACF300 series of DC/DC converters offers 300 watts of output power in a 6” x 4” x 1.52” package. This series of single output models is suitable for a variety of applications and has a wide 4:1 input voltage range. Each model in this series features over voltage, over current, over temperature, and short circuit protection, as well as remote on/off, and no minimum load requirement. This series has IEC/UL/EN62368-1 and UL508 safety approvals, EN50155 and EN45545-2 standard approvals, and is RoHS & REACH compliant.
• 4:1 Wide Input Voltage Range
• Constant Current and Voltage
• Current Share
• Remote On/Off
• RoHS & REACH Compliant
• No Minimum Load Requirement
• Adjustable Output Voltage
• Open Frame or DIN Rail Packaging
• Over Voltage, Over Current, Over Temperature, and Short Circuit Protection
• Under Voltage Protection
• 3000VAC Isolation Voltage
• Internal EN55032 Class A Filter
• IEC/UL/EN62368-1 and UL508 Safety Approvals
• EN50155 and EN45545-2 Standard Approvals
Part Number Setup:

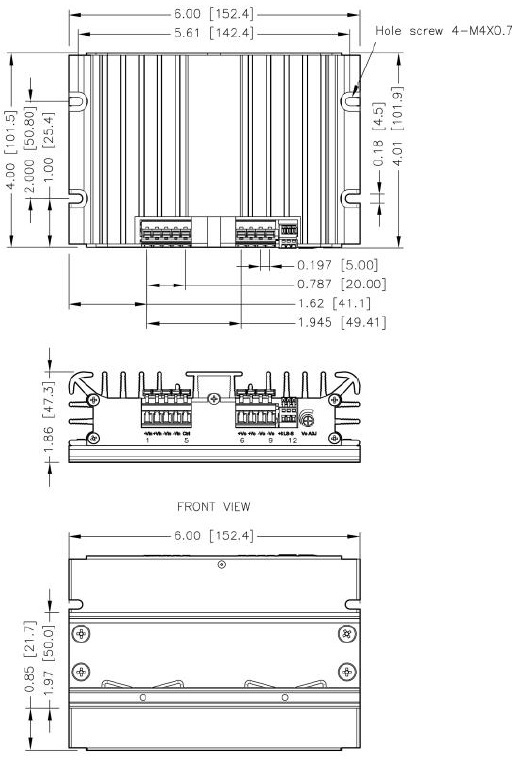

Add "D" to model to indicate DIN Rail package.
Add "D" to model to indicate DIN Rail package.
Example:
DCACF300-48S24-D = 48Vin, 24Vout DIN Rail Model
DCACF300-48S24-D = 48Vin, 24Vout DIN Rail Model
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCACF300-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 25A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 20A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 12.5A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-48S28 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 10.8A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-48S48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 6.3A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-110S12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 25A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-110S15 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 20A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-110S24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 12.5A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-110S28 | Input Voltage: 110 | Output Voltage: 28 | Output Current: 10.8A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| DCACF300-110S48 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 6.3A | Output Power (W): 300 | No. Outputs: S | Case: Open Frame, DIN Rail | Size: 6" x 4" x 1.52" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 48, 110 |
| Input Voltage Range: | 18~75, 43~160 |
| Input Filter: | Common Choke + Pi Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 12, 15, 24, 28, 48 |
| Voltage Accuracy: | ±1% |
| Output Current: | 6.3A, 10.8A, 12.5A, 20A, 25A |
| Output Power (Watts): | 300 |
| Output Trim/Adjustability: | ±20% |
| Short Circuit Protection: | C.C. Mode, Automatic Recovery |
| Over Voltage Protection: | 120-140% |
| Thermal Protection: | 105ºC |
| General | |
| Efficiency: | Up to 92% |
| Environmental | |
| Operating Temperature: | -40 to +100°C |
| Storage Temperature: | -40 to 105°C |
| Physical | |
| Weight: | 31.74oz (900g) |

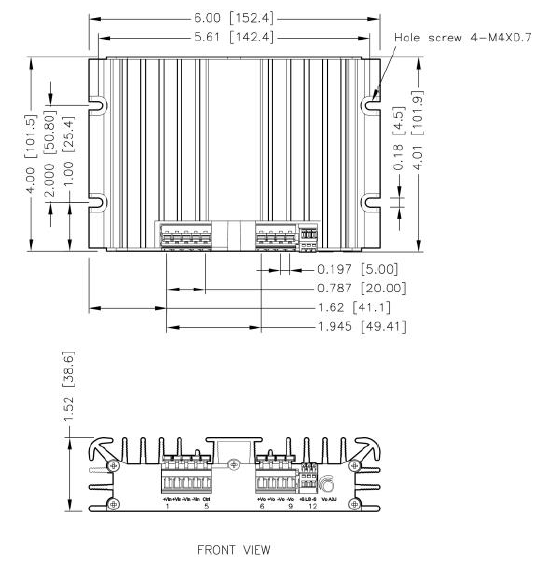

| Dimensions: | 6in x 4in x 1.52in (152.4mm x 101.5mm x 38.6mm) |
| Case Material: | Aluminum |
| Notes & safety | |
| Notes: | 1. DIN Rail case option is available for this series. To indicate DIN Rail model, add “D” to end of model number. Negative Logic is optional for this series. To indicate Negative Logic Option, add “N” to end of product model number. Load Share is optional for this series. To indicate Load Share Option, add “S” to end of product model number. 2. If remote sense is not being used, sense terminals should be connected to corresponding polarity Vout terminals. 3. Connect the LS (Terminal 11) from each converter The converter can parallel to increase output current. It has internal load share function in this converter (only for “S” suffix) 4. Referred to –Vin. 5. “C.C. Mode” is “Constant Current Mode” and test by nominal input. 6. The iron base-plate dimension is 19” x 5.25” x 0.063” and the height is the EIA standard 3U. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EC/UL/EN62368-1, UL508 |
