DC
The DC series surface mount dc/dc converters offer the user a wide input range and single output, with tight regulation. These converters are highly reliable and are well-suited for telecom applications.
• Output trim function
• Overvoltage protection
• High efficiency (to 88%)
• Six sided shield
• Undervoltage lockout
• Remote On/Off
• Short-circuit protection
• UL/CUL 1950, file #E155800
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DC48S2.0-8 | Input Voltage: 48 | Output Voltage: 2 | Output Current: 4A | Output Power (W): 8 | No. Outputs: S | Case: Surface Mount | Size: 1.95" × 1.19" × 0.39" | Get a Quote |
| DC48S3.3-13 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 13.2 | No. Outputs: S | Case: Surface Mount | Size: 1.95" × 1.19" × 0.39" | Get a Quote |
| DC48S12-20 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.67A | Output Power (W): 20 | No. Outputs: S | Case: Surface Mount | Size: 1.95" × 1.19" × 0.39" | Get a Quote |
| DC48S15-20 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Surface Mount | Size: 1.95" × 1.19" × 0.39" | Get a Quote |
| DC48S5-20 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Surface Mount | Size: 1.95" × 1.19" × 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 48 |
| Input Voltage Range: | 36-75 |
| Input Filter: | L-C Type |
| Remote ON/OFF: | ref. -Vin |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 2, 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 4A, 1.33A, 1.67A |
| Output Power (Watts): | 8, 13.2, 20 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 105°C |
| Physical | |
| Weight: | 1.15 oz. |

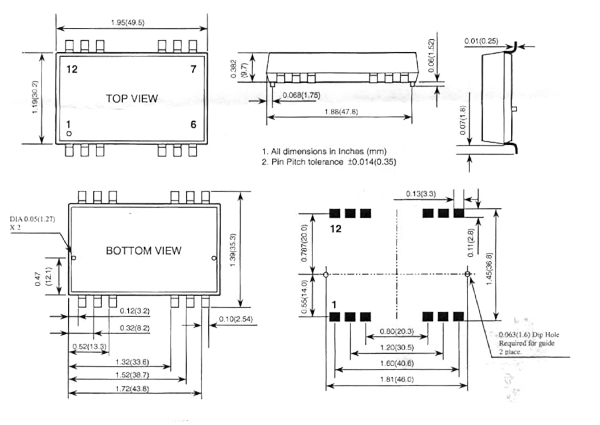

| Dimensions: | 1.95in. × 1.19in. × 0.39in. |
| Case Material: | Non-Conductive Black Plastic |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. The recommended solder past volume is 2.8 cubic mm (170,000 cubic mills/pin). 2. NC+ may be used for internal module and should not be connected by the customer. 3. Remote on/off is referenced to negative input. DC-DC on open or 3.5V < Vr < 12V. DC-DC off short or OV < Vr < 1.2V. Remoteoff input current nominal Vin 2.5mA. 4. 10% load required to maintain regulation. Due to advances in technology, specifications are subject to change without notice. |
