DBW
The DBW series of DC/DC converters offers 40 Watts of output power in a 2 x 2 x 0.4 inch package. The DBW series has a 4:1 ultra wide input range of 9-36VDC or 18-75VDC. This series also offers single and dual output models. Some features include 1600VDC isolation, positive or negative remote on/off, and six-sided shielding. All models are short circuit, over voltage, over load, and over temperature protected. Heatsinks are also available, please call factory for ordering details
● High Efficiency up to 88%
● RoHS Directive Compliant
● Fixed Switching Frequency
● Six-Sided Continuous Shield
● Standard 2” x 2” x 0.4” Package
● Options: Negative Remote ON/OFF
● 4:1 Ultra Wide Input Voltage Range
● ISO9001 Certified Manufacturing Facilities
● UL60950-1, EN60950-1, and IEC60950-1 Licensed
● CE Mark Meets 2006/95/EC, 93/68/EEC, and 2004/108/EC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

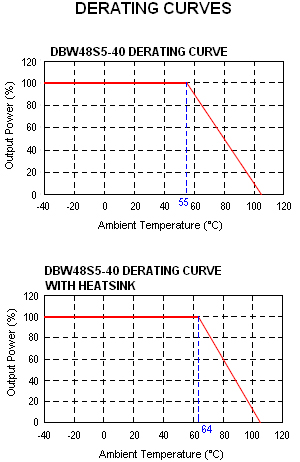

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DBW24S3.3-33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 10A | Output Power (W): 33 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW48S3.3-33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 10A | Output Power (W): 33 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW24D12-40 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1667mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW24D15-40 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1333A | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW24S12-40 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 3.333A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW24S15-40 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2.666A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW24S5-40 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW48D12-40 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1667mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW48D15-40 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1333A | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW48S12-40 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 3.333A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW48S15-40 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2.666A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| DBW48S5-40 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" × 2" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | ref. -Vin |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 10A, 8A, 3.333A, ±1667A, ±1333A, 2.666A |
| Output Power (Watts): | 33, 40 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 2.11 oz. |

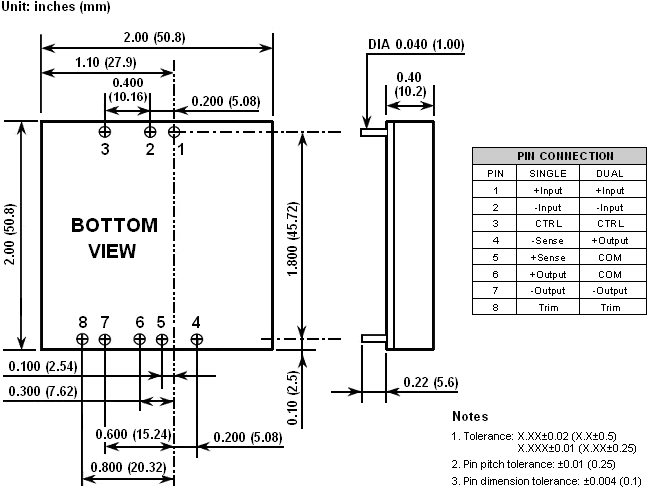

| Dimensions: | 2in. × 2in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. MTBF: BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40°C. MIL-STD-217F Notice2 @ Ta=25°C, Full Load (Ground, Benign, controlled environment). 2. The output requires a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices, however they may not meet all listed specifications. 3. For single output models: maximum output deviation is 10% inclusive of remote sense and trim. If remote sense is not being used the +SENSE should be connected to the +OUTPUT and the -SENSE should be connected to the -OUTPUT. 4. Load regulation for dual output: Minimum load to 100% load balanced on all outputs. 5. Cross regulation for dual output: asymmetrical load 25% / 100% full load. 6. The ON/OFF control function: There are positive (standard) and negative logic (option). The pin voltage is referenced to negative input. To order negative logic ON/OFF control add the suffix "R" to the part number (Ex: DBW48S5-40R). 7. Heat sink is optional. Please call factory for ordering details. 8. The DBW series can meet EN55022 Class A with an external capacitor in parallel with the input pins. Recommended: For 24Vin: N/A. For 48Vin: 2.2uF/100V * 2 PCS 1812 MLCC. 9. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY series, 220uF/100V, ESR 48MΩ. 10. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 Licensed |
| RoHS Compliance: | Yes |
