DB
The DB series of high efficiency dc/dc converters are available as single, dual, or triple output versions, with up to 40 watts of output power. This product is ideal for telecom and networking applications, and is designed for a 2:1 input range, either nominal 24VDC (18VDC-36VDC), or nominal 48VDC (36VDC-75VDC). They are also PCB mountable, with a form factor of 2″ x 2″ x 0.4″, and incorporate six sided shielding. Standard specifications include Pi input filter, excellent load regulation, remote on/off capability, and short-circuit protection. The isolation voltage meets telecom requirements of >1500VDC.
● High Efficiency up to 90%
● Fixed Switching Frequency
● Six-Sided Continuous Shield
● 2:1 Wide Input Voltage Range
● 40 Watts Maximum Output power
● Standard 2.02” x 2.02” x 0.4” Package
● International Safety Standard Approval
● Single, Dual, Dual Positive (Total Output Current 8A), and Triple Outputs Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DB12S1.5-12 | Input Voltage: 12 | Output Voltage: 1.5 | Output Current: 8A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24S1.5-12 | Input Voltage: 24 | Output Voltage: 1.5 | Output Current: 8A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48S1.5-12 | Input Voltage: 48 | Output Voltage: 1.5 | Output Current: 8A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12S1.8-14 | Input Voltage: 12 | Output Voltage: 1.8 | Output Current: 8A | Output Power (W): 14 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24S1.8-14 | Input Voltage: 24 | Output Voltage: 1.8 | Output Current: 8A | Output Power (W): 14 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48S1.8-14 | Input Voltage: 48 | Output Voltage: 1.8 | Output Current: 8A | Output Power (W): 14 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12S2.5-20 | Input Voltage: 12 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24S2.5-20 | Input Voltage: 24 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48S2.5-20 | Input Voltage: 48 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12S3.3-26 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24S3.3-26 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48S3.3-26 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12T3.3-12-31 | Input Voltage: 12 | Output Voltage: 3.3, 12, -12 | Output Current: 6000mA/±400mA | Output Power (W): 31 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12T3.3-15-31 | Input Voltage: 12 | Output Voltage: 3.3, 15, -15 | Output Current: 6000mA/±300mA | Output Power (W): 31 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24T3.3-12-31 | Input Voltage: 24 | Output Voltage: 3.3, 12, -12 | Output Current: 6000mA/±400mA | Output Power (W): 31 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24T3.3-15-31 | Input Voltage: 24 | Output Voltage: 3.3, 15, -15 | Output Current: 6000mA/±300mA | Output Power (W): 31 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48T3.3-12-31 | Input Voltage: 48 | Output Voltage: 3.3, 12, -12 | Output Current: 6000mA/±400mA | Output Power (W): 31 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48T3.3-15-31 | Input Voltage: 48 | Output Voltage: 3.3, 15, -15 | Output Current: 6000mA/±300mA | Output Power (W): 31 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12D3.3-5-33 | Input Voltage: 12 | Output Voltage: 3.3, 5 | Output Current: 8A | Output Power (W): 33 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24D3.3-5-33 | Input Voltage: 24 | Output Voltage: 3.3, 5 | Output Current: 8A | Output Power (W): 33 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48D3.3-5-33 | Input Voltage: 48 | Output Voltage: 3.3, 5 | Output Current: 8A | Output Power (W): 33 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12D12-40 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±1800mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12D15-40 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±1400A | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12S12-40 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 3.333A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12S15-40 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 2.666A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12S5-40 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12T5-12-40 | Input Voltage: 12 | Output Voltage: 5, 12, -12 | Output Current: 6000mA/±400mA | Output Power (W): 40 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB12T5-15-40 | Input Voltage: 12 | Output Voltage: 5, 15, -15 | Output Current: 6000mA/±300mA | Output Power (W): 40 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24D12-40 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1800mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24D15-40 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1400A | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24S12-40 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 3.333A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24S15-40 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2.666A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24S5-40 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24T5-12-40 | Input Voltage: 24 | Output Voltage: 5, 12, -12 | Output Current: 6000mA/±400mA | Output Power (W): 40 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB24T5-15-40 | Input Voltage: 24 | Output Voltage: 5, 15, -15 | Output Current: 6000mA/±300mA | Output Power (W): 40 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48D12-40 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1800mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48D15-40 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1400A | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48S12-40 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 3.333A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48S15-40 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2.666A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48S5-40 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48T5-12-40 | Input Voltage: 48 | Output Voltage: 5, 12, -12 | Output Current: 6000mA/±400mA | Output Power (W): 40 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| DB48T5-15-40 | Input Voltage: 48 | Output Voltage: 5, 15, -15 | Output Current: 6000mA/±300mA | Output Power (W): 40 | No. Outputs: T | Case: Through Hole | Size: 2.02" × 2.02" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 36-75, 9-18 |
| Input Filter: | L-C Type |
| Remote ON/OFF: | ref. -Vin |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 1.5, 1.8, 2.5, 3.3, 5, 12, 15, ±12, ±15 |
| Voltage Accuracy: | Single & Dual Output Models: ±1% Triple Output Models: ±1% (main), ±5% (aux) |
| Output Current: | 8A, 6A, 3.333A, 1.8A, 2.666A, 1.4A |
| Output Power (Watts): | 12, 14, 20, 26.4, 31, 33, 40 |
| Output Trim/Adjustability: | ±10% Single and Dual Outputs |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 90% |
| Isolation: | 1600VDC |
| Environmental | |

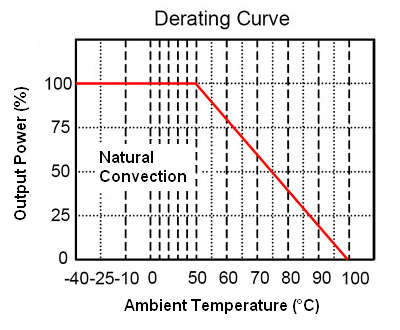

| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 105°C |
| Physical | |
| Weight: | 2.11 oz. |
| Dimensions: | 2.02in. × 2.02in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |

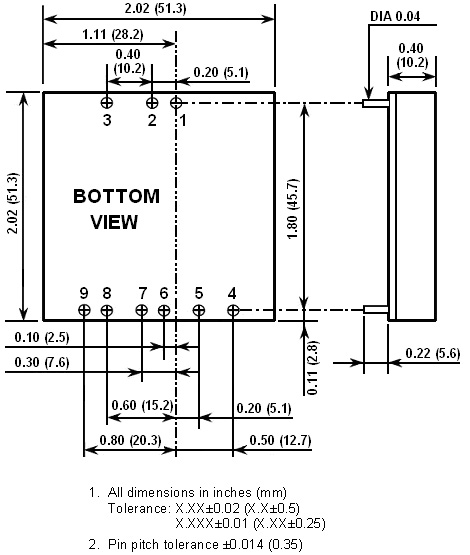

| Notes: | 1. All case and pin-to-case dimensions for reference only, unless noted otherwise. 2. Baseplate protudes 0.02", two sides. 3. PC pins 0.04" diameter by 0.18" long minimum: typical nine places. 4. Pin to pin tolerance ±0.01". Pin dimension tolerance ±0.005". 5. 10% minimum load required on outputs. Singles: ±1% min. to full load. Duals: ±1% min. to full load (balanced) ±5% min. to max load (unbalanced). Triples: ±1% min. to full load (main output) ±5% min. to full load aux (unbalanced). 6. Significant capacitive load may inhibit start-up and operation, consult factory. 7. Measured with 0.1uF across output. 8. UL approval can be added to any products not currently listed if required. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC60950-1, UL60950-1, EN60950-1 |
